(See Figure 6C-10)
14. Place the housing down on a flat surface. Hold
sleeve assembly (14) so cross pin (15) is horizontal.
15. Carefully insert sleeve assembly (14).
NOTE
Sleeve to housing fit is very close. Do not force
together.
16. Push sleeve (14) into housing, pushing out the
O-ring and kin ring guide tool.
17. Insert ball (11) into hole as shown.
18. Screw bushing into housing until it is just below
the surface of the housing.
STEERING
SECTION 6C. STEERING UNIT
6C-8

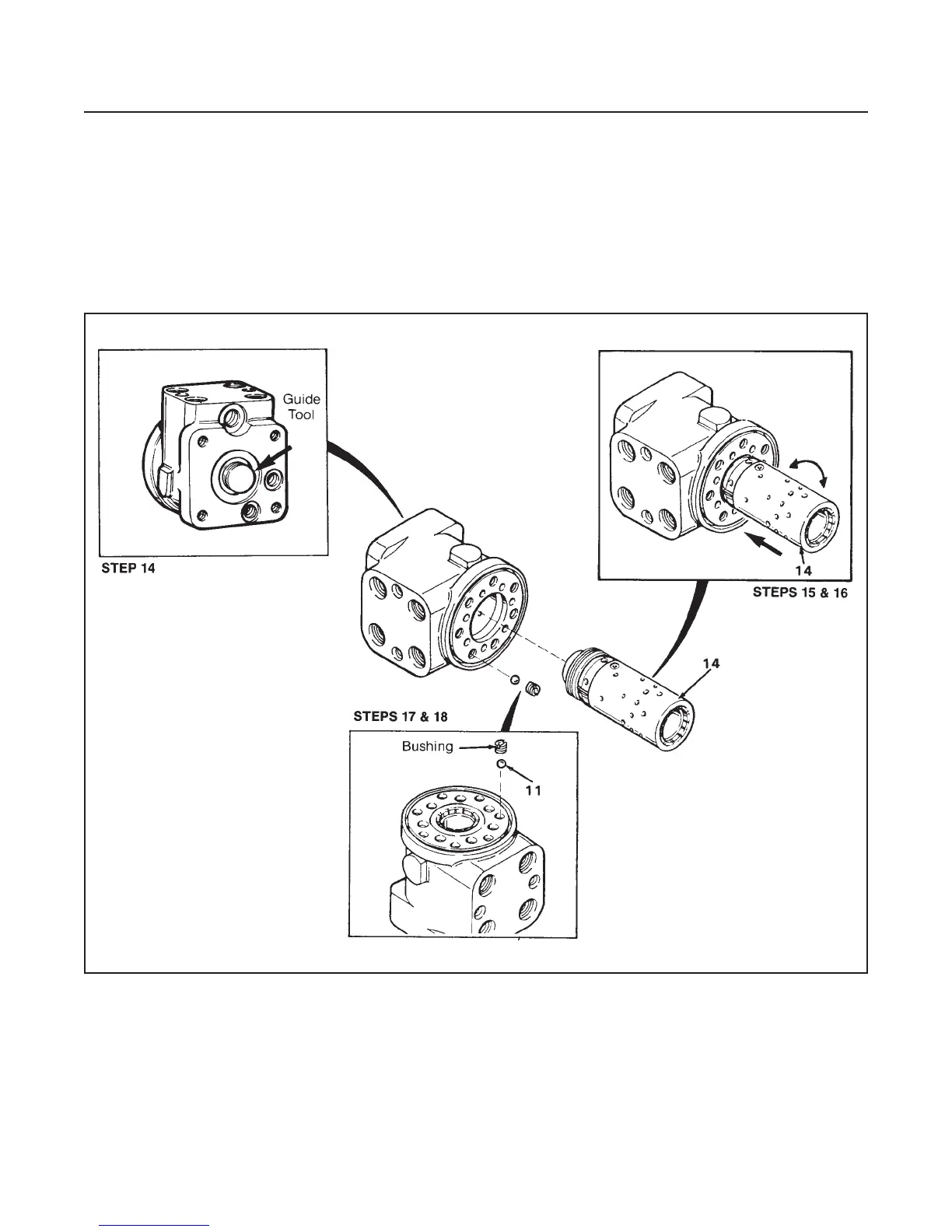

Figure 6C-10.
