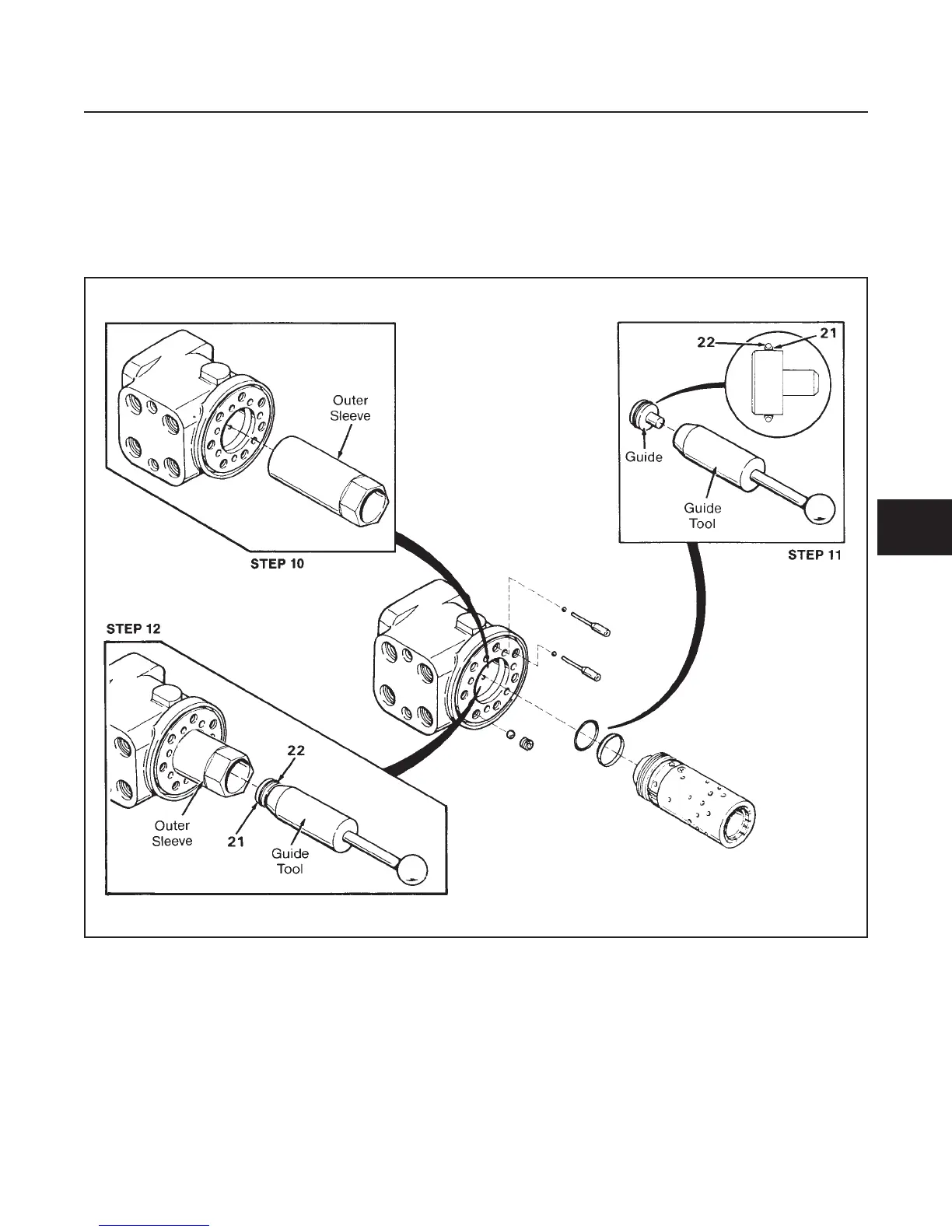

(See Figure 6C-9)
10. Place the steering unit on its side. Insert the outer
sleeve of tool SJ 150-9000-11 into the sleeve bore.
11. Lubricate O-ring (22) and kin ring (21). Place them
on the guide tool as shown.
12. Using the inner tool, push and turn the guide through
the outer tool sleeve until O-ring (22) and kin ring
(21) properly seat in the housing.
13. Pull both the inner and outer tool from the hous-
ing, leaving the guide in the housing.
STEERING
SECTION 6C. STEERING UNIT
6C-7
6C
Figure 6C-9.
