IMPLEMENT (MOWER) SWITCH TEST
(See Figure 10G-23)
1. Disconnect switch connectors.
2. Set multimeter to 200 Ω (ohms) scale.
3. With switch in OFF position, test as follows:
a. Connect one multimeter test lead to terminal 4
and the other lead to 5.
•
There should be 0–0.5 Ω (ohms) on the mul-
timeter.
b. Connect one multimeter test lead to terminal 2
and the other to terminal 1.
•
There should be 0–0.5 on the multimeter.
c. Check for continuity across all remaining com-
binations of terminals (with switch in the OFF
position).
•
There should be no reading on the multimeter.
4. Place switch in ON position and test as follows:
a. Check for continuity by connecting one multi-
meter test lead to terminal 5 and the other to
terminal 6.
•
There should be 0–0.5 Ω (ohms) on the mul-
timeter.
b. Connect one multimeter test lead to terminal 2
and the other lead to terminal 3.
c. Check for continuity across all remaining com-
binations of terminals (with switch in the ON
position).
•
There should be no reading on the multimeter.
Replace a switch that does not meet all the above
tests.
ELECTRICAL SYSTEM
SECTION 10G. SWITCHES
10G-23
10G

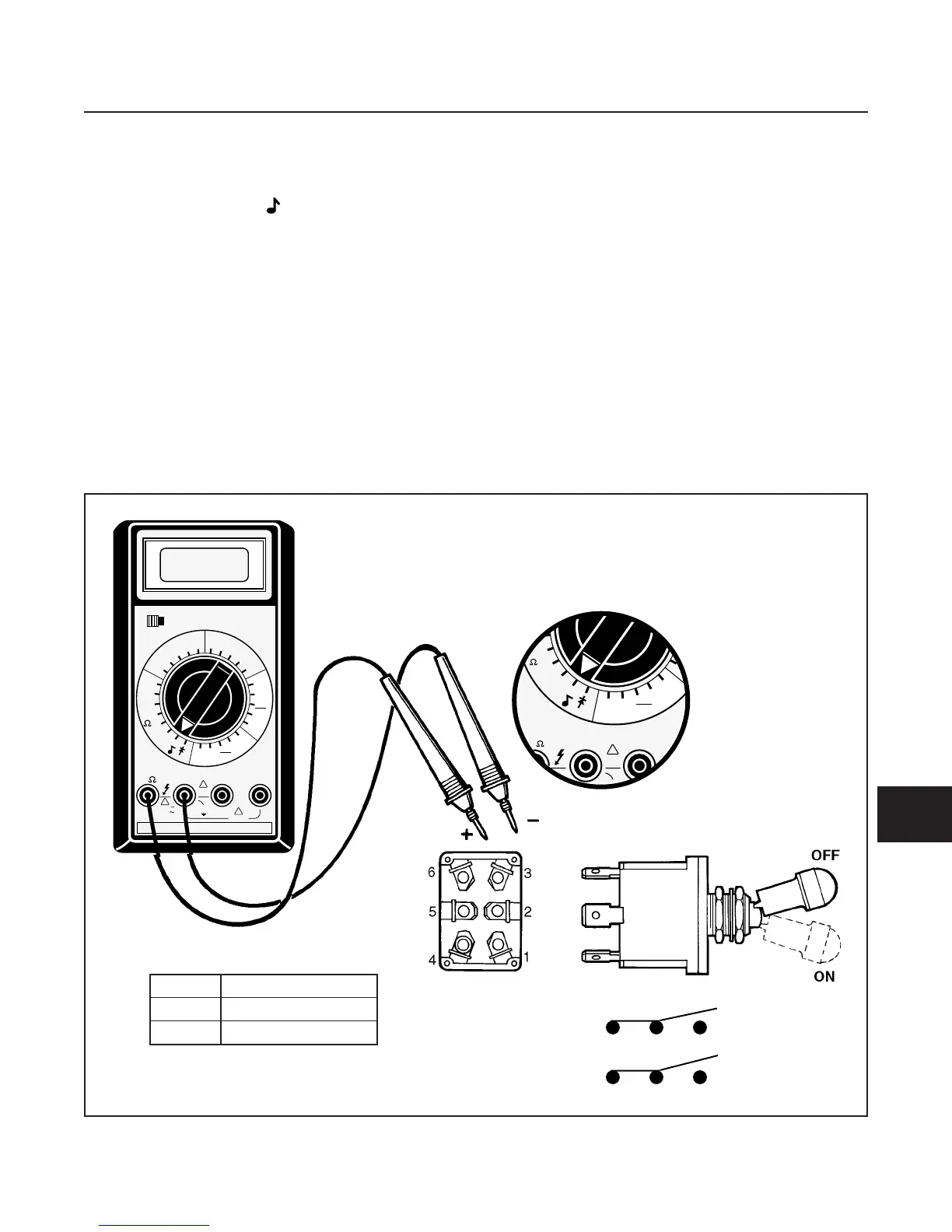

Figure 10G-23. Implement (Mower) Switch Test
