3-86

3.8 Applied Operations

y y

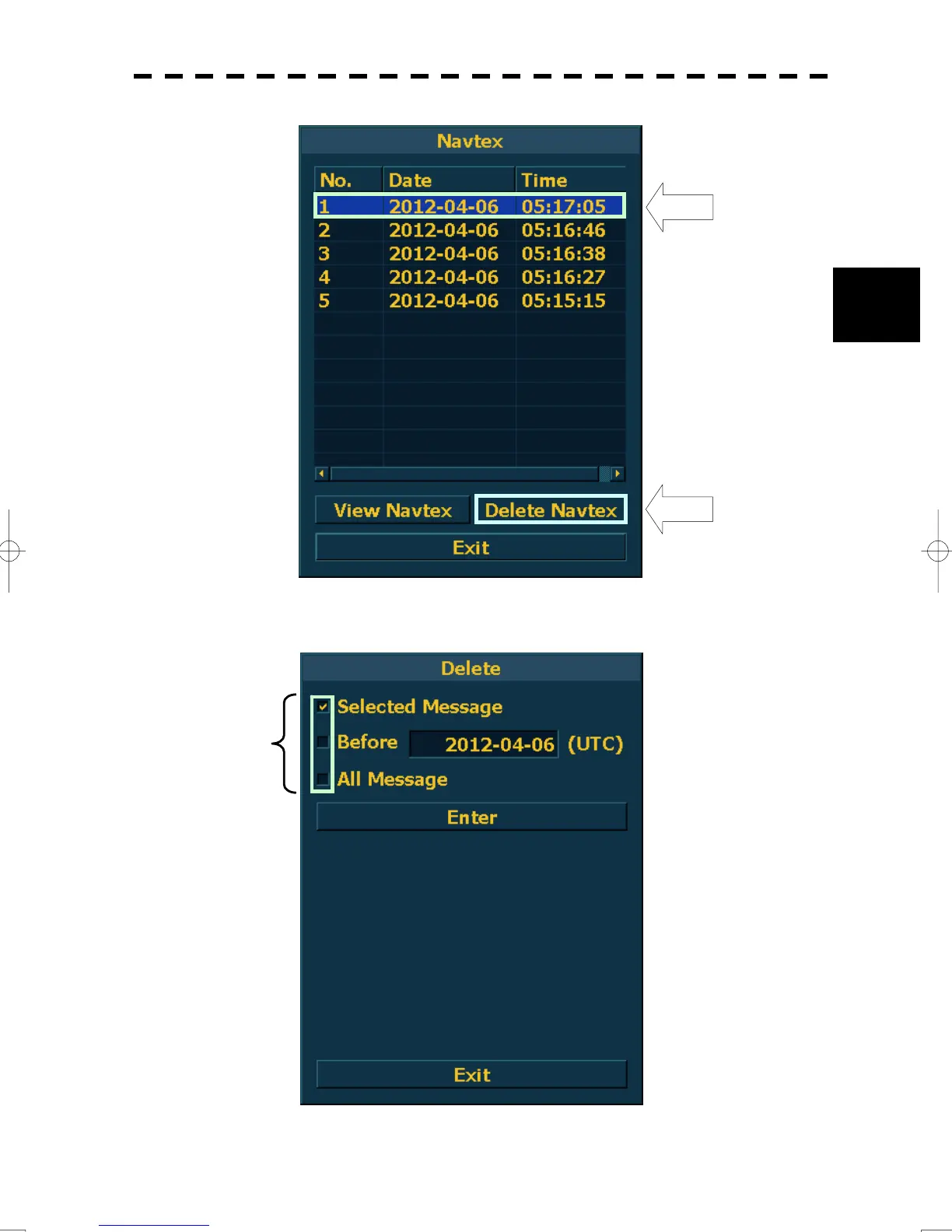

3 Check the delete type, and left-click Delete Navtex button.

Check the delete type
