Keithley 2001 User Manual

Front Panel Operation
3-14

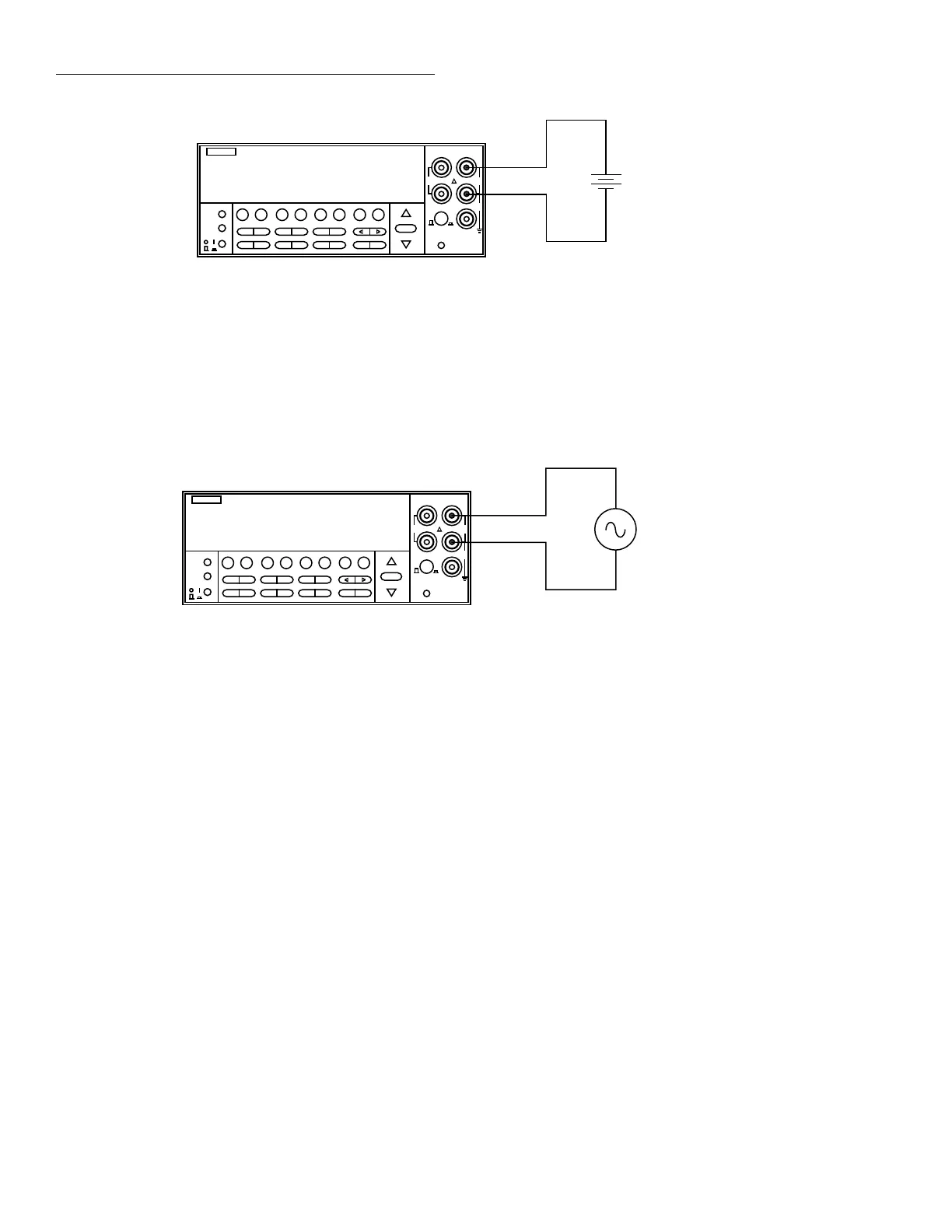

Figure 3-6
DC voltage measurements
NEXT
DISPLAY
PREV
POWER
DCV ACV DCI ACI Ω2 Ω4
FREQ TEMP
REL TRIG STORE RECALL
INFO LOCAL CHAN SCAN CONFIG MENU EXIT ENTER
RANGE
AUTO
FILTER MATH
RANGE
2001 MULTIMETER
SENSE
Ω 4 WIRE
HI
INPUT
LO
INPUTS
CAL
500V
PEAK
F
R
FRONT/REAR
2A 250V
AMPS
350V
PEAK
1100V
PEAK
Model 2001
Caution: Maximum Input = 1100V peak
DC Voltage
Source
Input Resistance = 10MΩ on 1000V and 200V ranges ;
> 10GΩ on 20V, 2V and 200mV ranges.
= 1MΩ on DCV peak spikes measurement.
+000.0001 mVDC
Range : 200 mVDC
Figure 3-7
AC voltage measurements
NEXT
DISPLAY
PREV
POWER
DCV ACV DCI ACI Ω2 Ω4
FREQ TEMP
REL TRIG STORE RECALL
INFO LOCAL CHAN SCAN CONFIG MENU EXIT ENTER
RANGE
AUTO
FILTER MATH
RANGE
2001 MULTIMETER
SENSE
Ω 4 WIRE
HI
INPUT
LO
INPUTS
CAL
500V
PEAK
F
R
FRONT/REAR
2A 250V
AMPS
350V
PEAK
1100V
PEAK
Model 2001
Caution: Maximum Input = 1100V peak, 2 x 10
7
V•Hz
AC Voltage
Source
Input Impedance = 1MΩ shunted by <140pF
+000.100 mVAC RMS
Range: 200 mVAC Coupling: AC

Keithley 2001 Specifications

General

Model	2001
Category	Multimeter
Manufacturer	Keithley
Type	Digital Multimeter
Digits of Resolution	7.5
DC Voltage Range	100 mV to 1000 V
AC Voltage Range	100 mV to 750 V
Frequency Range	3 Hz to 500 kHz
Connectivity	GPIB, RS-232
Display	VFD
Resistance Accuracy	0.008% + 2.0 mΩ
Frequency Accuracy	±0.01%
DC Current Range	10 μA to 3 A
AC Current Range	10 μA to 3 A
Power Supply	100 V to 240 V AC, 45 Hz to 66 Hz
