Keysight Technologies B1505A

Keysight B1505A Configuration and Connection Guide 5-21
Connection Guide for Wafer Prober and Your Own Test Fixture

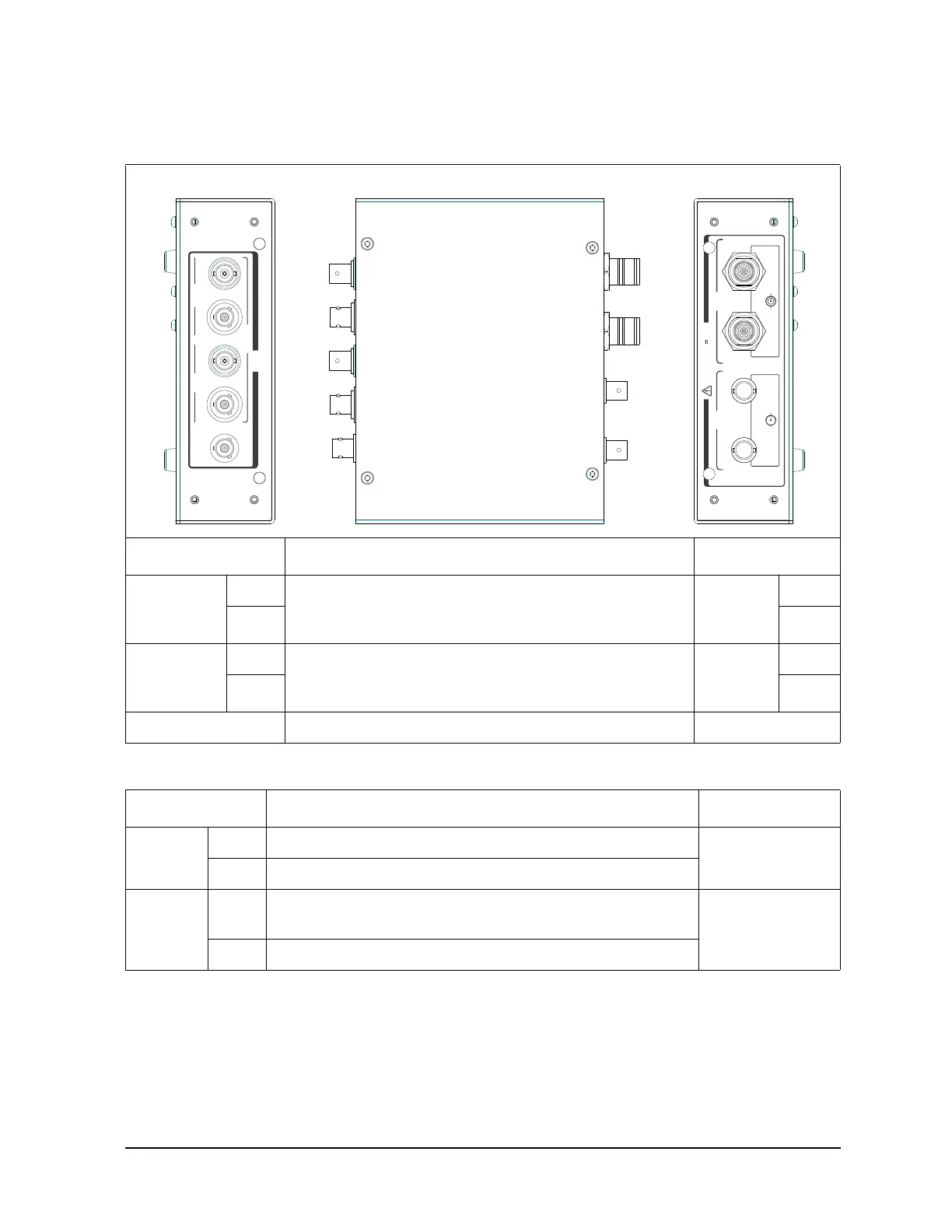

To Connect Dual HCSMU Adapter
Table 5-12 To Connect 16493S-020 Input
Table 5-13 To Connect 16493S-020 Output
B1505A terminals Required cables Input terminals
HCSMU
used for
master
Force 16493S HCSMU cable, 3 m or 1.5 m HCSMU
Master
Force
Sense Sense
HCSMU
used for
slave
Force 16493S HCSMU cable, 3 m or 1.5 m HCSMU
Slave
Force
Sense Sense
GNDU 16493L GNDU cable, 3 m or 1.5 m GNDU
Output terminals
1
1. This is the DHCSMU channel. The connectors are compatible with the N1258A module selector output
connectors.
Required cables/Description Connect to
Low Force Coaxial cable with BNC(m) connector. N1254A-503 can be used. DUT low terminal
(ex: source)
2
2. Non-Kelvin connection is not allowed. GNDU Force and Sense are internally connected to Low Sense.
Sense Coaxial cable with BNC(m) connector. N1254A-503 can be used.
High Force Coaxial cable with HV(plug) connector. N1254A-506 can be used.
Use coaxial cable to minimize affect of inductance.
DUT high terminal
(ex: drain)
2
Sense Triaxial cable with HV(plug) connector. N1254A-505 can be used.
Force
SenseForce
Sense
Sense/Force
Circuit
Common
Sense/Force
Circuit
Common
HighLow
(±40V Max)
Output
16493S Opt 020
Dual HCSMU Kelvin Combination Adapter
Force Sense Force Sense
Master Slave
HCSMU
GNDU
Input
