5-38 Keysight B1505A Configuration and Connection Guide
Connection Guide for Wafer Prober and Your Own Test Fixture
To Connect Ultra High Voltage Expander
To Connect Ultra High Voltage Expander
The N1268A ultra high voltage expander is used to configure the ultra high voltage unit
(UHVU) with the MCSMU modules. And the UHVU can be connected to prober as shown
in Figure 5-19, by using the N1269A connection adapter. The N1268A should be installed
near the B1505A. And the N1269A should be installed near prober as shown in
"Connection Overview".

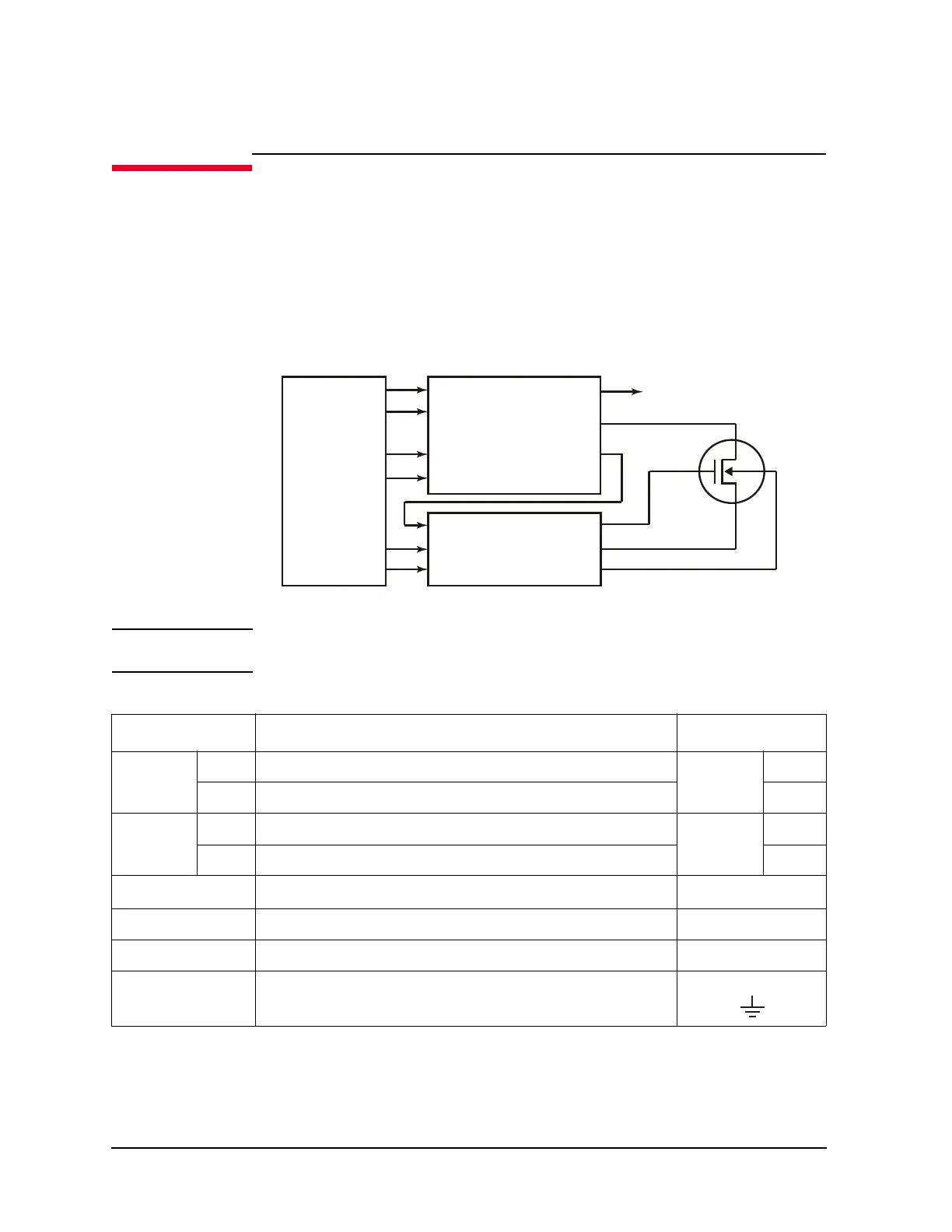

Figure 5-19 To Configure UHVU
WARNING Connect a wire from an electrical ground (safety ground) to the earth terminal of the
N1268A.
Table 5-30 To Connect N1268A/N1269A Input
B1505A terminals Required cables N1268A input
MCSMU Force 16494A-001 Triaxial cable, 1.5 m
I Control
Force
Sense 16494A-001 Triaxial cable, 1.5 m Sense
MCSMU
1
1. HCSMU is substitutable. Then use 16493S HCSMU cable, N1254A-103 adapter for Force, and
N1254A-517 adapter for Sense.
Force 16494A-001 Triaxial cable, 1.5 m
V Control
Force
Sense 16494A-001 Triaxial cable, 1.5 m Sense
Interlock
16493J-001 Interlock cable, 1.5 m
Interlock Input
Digital I/O 16493G-001 Digital I/O connection cable, 1.5 m Digital I/O Input
Power cable, for connecting to power line LINE
Wire, 1 ea., for earthing (earth)
N1268A UHV expander
MCSMU
MC/HCSMU V-control
I-control
Interlock
Digital I/O
Interlock Input
Digital I/O
Gate
UHV Low
Chuck
Gate
Chuck
Source
MCSMU
MCSMU
N1269A UHV connection adapter
B1505A
Low
DUT
Drain
Chuck
Gate
Source
High
Interlock Output
Interlock circuit
To Next Page
