Keysight Technologies B1505A Configuration Guide

7-16 Keysight B1505A Configuration and Connection Guide
Connection and Ordering Examples
Package Device Measurement Configuration Examples
3 kV, 20A, High Voltage Medium Current Configuration
• Device Type: Discrete MOSFET (3 terminals)
• Key Specification
• Max voltage/current: 3 kV/20A
• High Voltage Medium Current capability: 2200 V/1.1 A, 1500 V/2.5 A
• Module Selector for multi-parameter automated measurement function

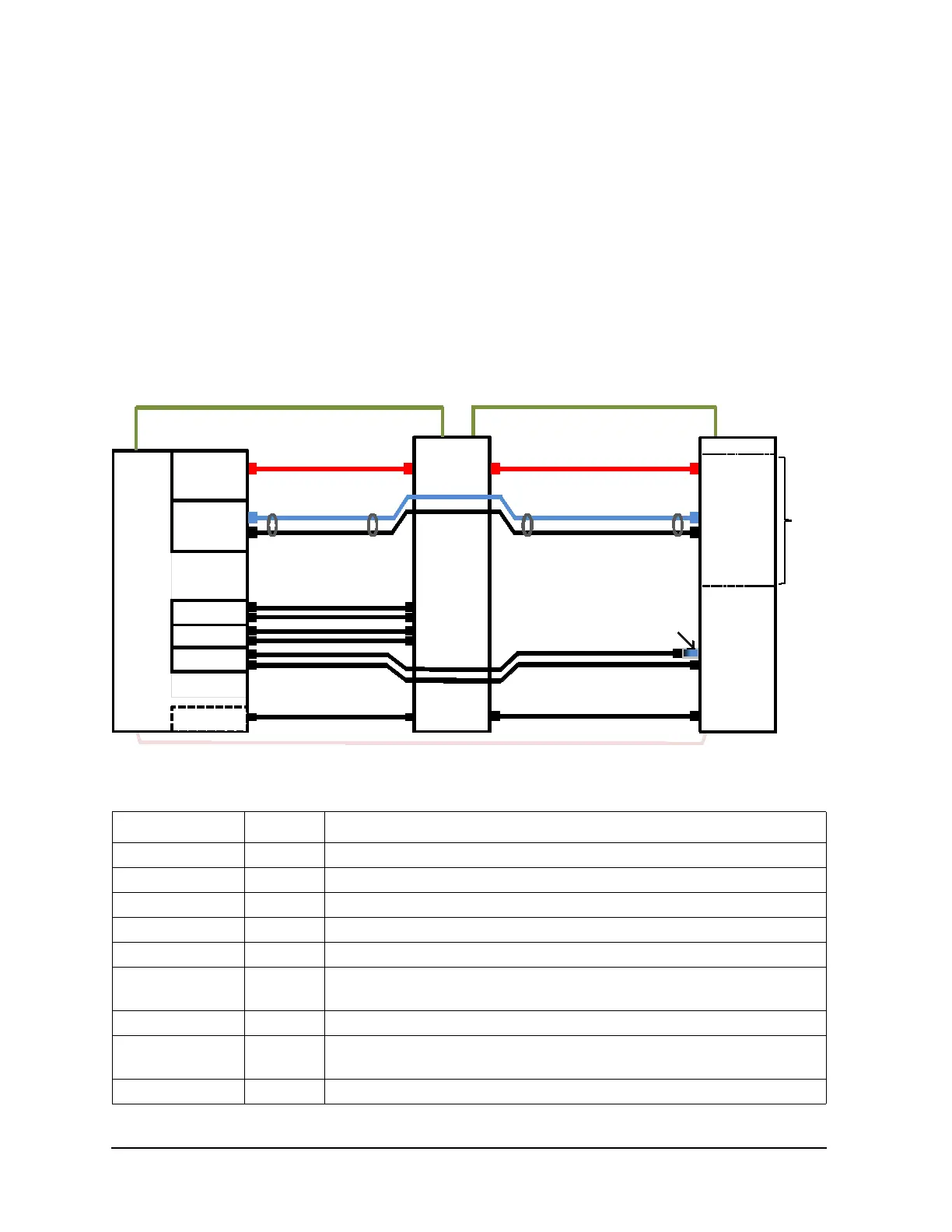

Figure 7-8 Connection example
Table 7-8 Ordering example
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1512A-FG 1 High Current Source Monitor Unit, 20 A/20 V(Pulsed); 1 A/40 V(DC)
B1513C-FG 1 High Voltage Source Monitor Unit, 3000 V/4 mA (Pulsed & DC)
B1514A-FG 3 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
16493L 1 Ground Unit Cable (Triaxial)
16493L-001 or
002
1 Ground Unit Cable (Triaxial, 1.5m or 3.0m)
16493T 1 High Voltage Source Monitor Unit Cable
16493T-001 or
002
1 High Voltage Source Monitor Unit Cable (1.5m or 3.0m)
N1254A 1 Accessories for instruments and fixtures
N1254A-104 TRX(J) to BNC(P) adapter
HVSMU
HCSMU
GNDU
MCSMU
MCSMU
MCSMU
N1266A
B1505A
For Gate
For N1266A
For Drain
For Drain
F
S
F
S
16493J-001 Interlock cable (included in B1505A)
16493G-001 Digital I/O cable (Included in N1266A)
F
S
F
S
GNDU
Vcontrol F
Input O utput
Vcontrol S
Icontrol F
Icontrol S
Input
HVSMU
Output
High
Output
Low
HVSMU2
HCSMU3 F
HCSMU3 S
HCSMU2 F
HCSMU2 S
GNDU2
N1259A
16493G-001 Digital I/O cable (Included in N1259A-300)
16493T (Included in the HVSMU)
16493T
16493S
(Included in the HCSMU)
16494A (Included in the MCSMU)
16493L (Included in B1505A)
16493L
For N1266A
Module
Selecto
