Keysight B1505A Configuration and Connection Guide 7-59
Connection and Ordering Examples
Configuration Examples for Vertical Device Measurement with Wafer Prober
3 kV, 500 A Measurement for On-Wafer Vertical Device
• Device Type: Vertical MOSFET (3 terminals)
• Key Specification
• Max voltage/current: 3 kV/500 A
• Module Selector for multi-parameter automated measurement function

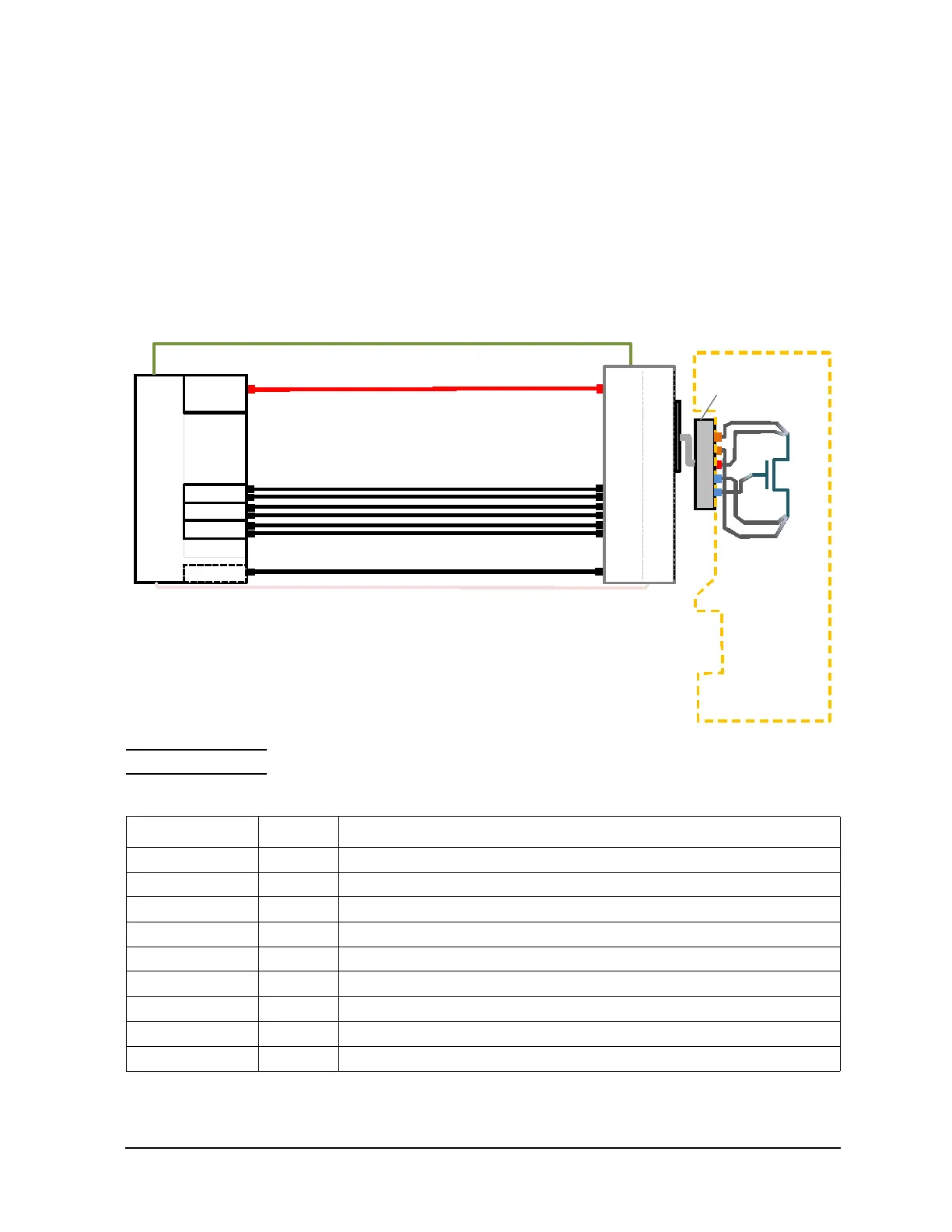

Figure 7-31 Connection example
NOTE Prober vendor is responsible for cabling inside the shielding box.
Table 7-28 Ordering example
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1513C-FG 1 High Voltage Source Monitor Unit, 3000 V/4 mA (Pulsed & DC)
B1514A-FG 3 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
N1265A 1 Ultra High Current Expander/Fixture
N1265A-001 1 Ultra High Current Expander/Fixture
N1254A 1 Accessories for instruments and fixtures
N1254A-524 1 Ultra High Current Prober System Cable
N1262A 1 R-box for B1505A
N1262A-036 1 50 Ohm Termination Adapter
G
S
HVSMU
GNDU
MCSMU
B1505A
MCSMU
MCSMU
16493J Interlock cable (Included in B1505A)
F
S
F
S
F
S
HV SMU
GN DU
UHC Inpu t
V Control
I Co nt ro l
Fo r G at e
For N1265A
For N1 265 A
For Drain
HF
LF
HS
LS
G
ate
N1265A
Gate
Selector
High
Low
N1254A-524
16493G-001 Digital I/O cable (Included in N1265A)
D
(Chuck)
Ga te F
Ga te S
16493T (Included in the HVSMU)
16493L (Included in B1505A)
16494A (Included in the MCSMU)
To Next Page
