7-4 Keysight B1505A Configuration and Connection Guide
Connection and Ordering Examples
Package Device Measurement Configuration Examples
3kV, 20A Configuration (B1505AP-H20 equivalent)
• Device Type: Discrete MOSFET (3 terminals)
• Key Specification
• Max voltage/current: 3 kV/20 A
• Module Selector for multi-parameter automated measurement function

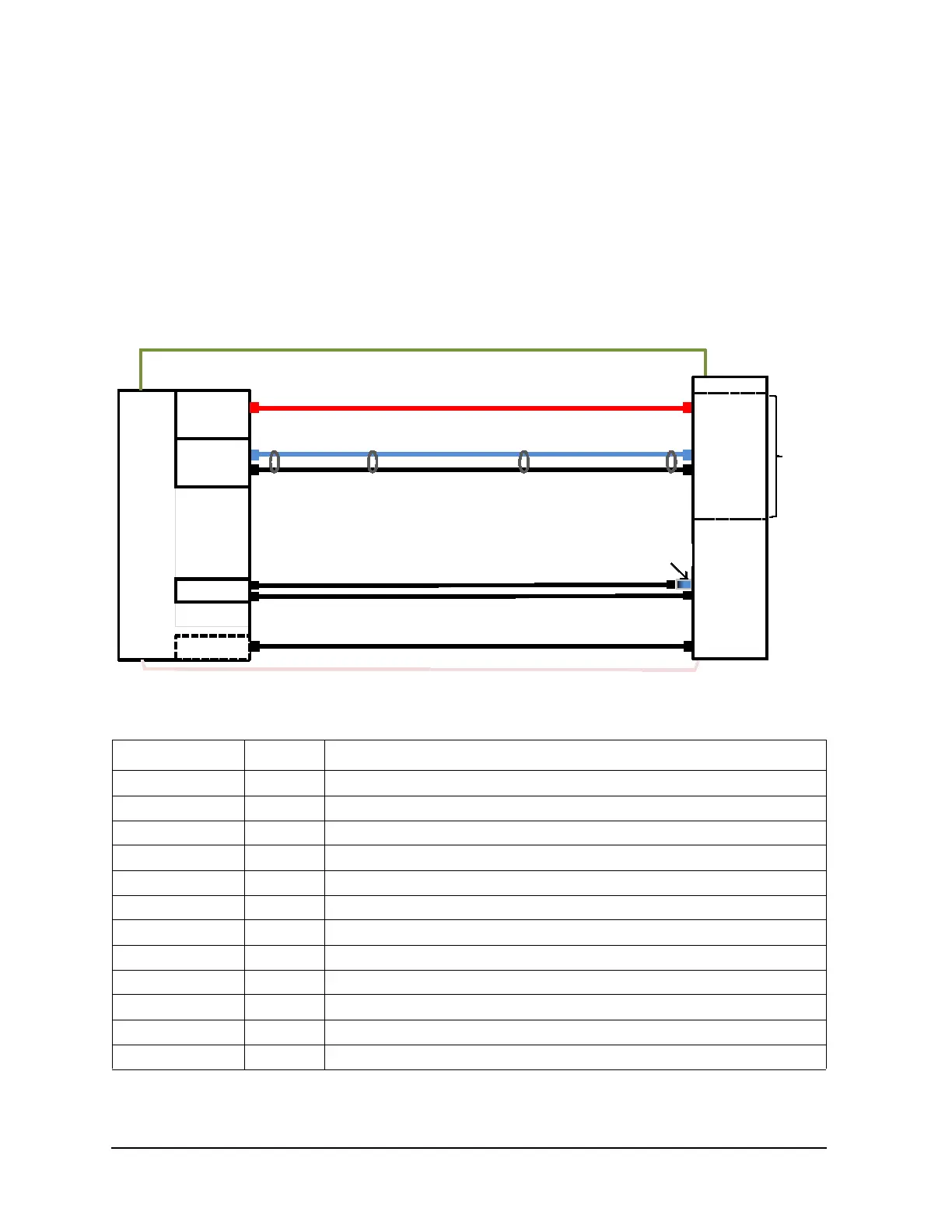

Figure 7-2 Connection example
Table 7-2 Ordering example
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1505A-015 1 1.5 m cable
B1512A-FG 1 High Current Source Monitor Unit, 20 A/20 V(Pulsed); 1 A/40 V(DC)
B1513C-FG 1 High Voltage Source Monitor Unit, 3000 V/4 mA (Pulsed & DC)
B1514A-FG 1 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
N1254A 1 Accessories for instruments and fixtures
N1254A-104 1 Triax (f) to BNC (m) adapter
N1259A 1 Test Fixture for Power Device
N1259A-001 1 Test Fixture including Inline Package Socket Module and Cables
N1259A-022 1 100 kohm R-box for gate
N1259A-030 1 1 kohm R-box
N1259A-300 1 Module Selector
HVSMU
HCSMU
GNDU
MCSMU
B1505A
16493G-001 Digital I/O cable (Included in N1259A-300)
HVSMU2
HCSMU3 F
HCSMU3 S
HCSMU2 F
HCSMU2 S
N1254A-104 TRX(J) to BNC(P) adapter
16493J-001 Interlock cable (inc luded in B1505A)
GNDU2
F
S
F
S
N1259A
For Gate
For Drain
For Drain
16493T-001 (Included in the HVSMU)
16493S-001 (Included in the HCSMU)
16494A-001 (Included in the MCSMU)
16493L-001 (Included in B1505A)
Module
Selector
To Next Page
