7-12 Keysight B1505A Configuration and Connection Guide
Connection and Ordering Examples
Package Device Measurement Configuration Examples
10 kV, 500 A or 1500 A Configuration (B1505AP-U50 or
B1505AP-U70 equivalent)
• Device Type: Discrete MOSFET (3 terminals)
• Key Specification
• Max voltage/current:10 kV/500 A or 1500 A

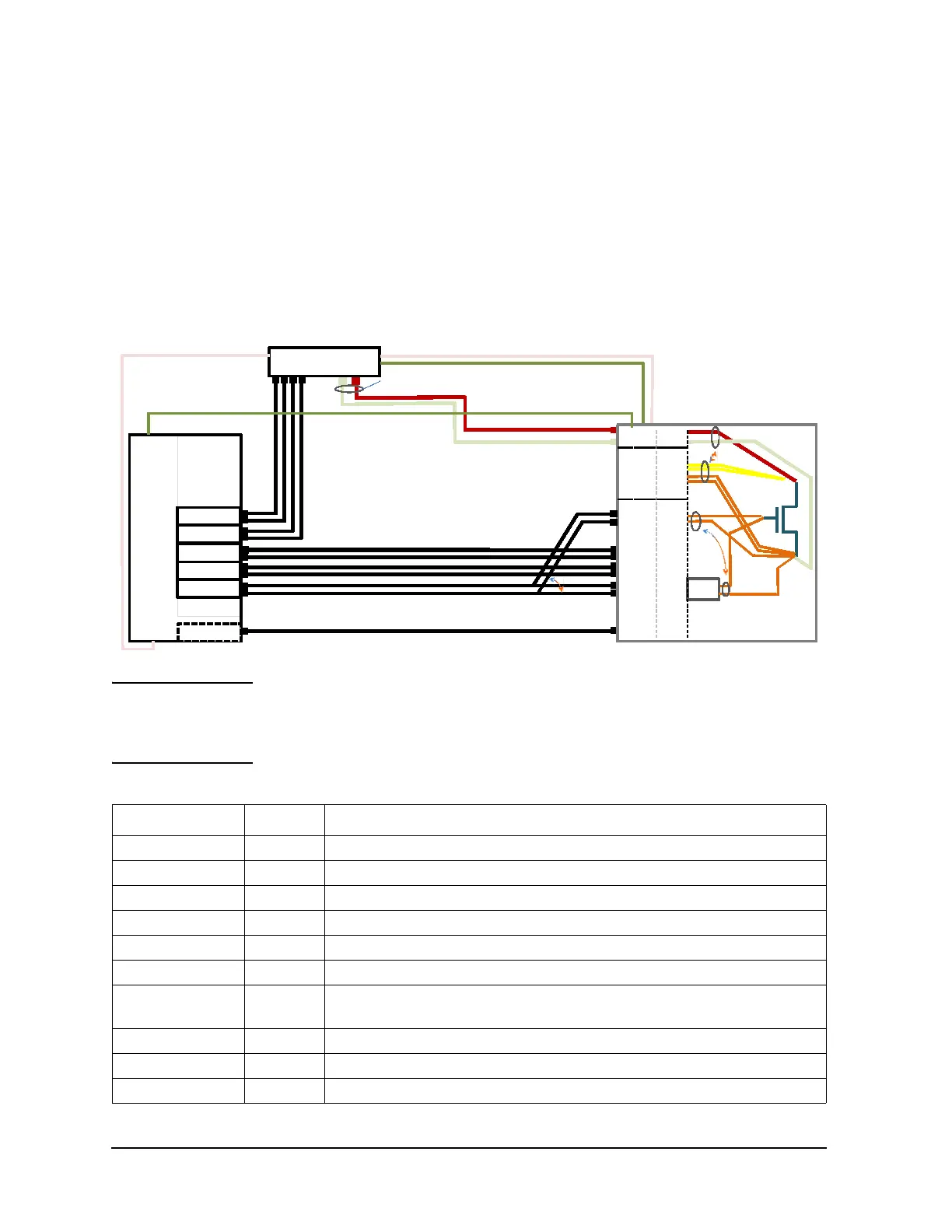

Figure 7-6 Connection example
NOTE When using a N1268A, Gate input ports of the N1265A Ultra High Current
Expander/Fixture cannot be used due to potential damage to these terminals. Instead,
device gate terminal should be connected to SMU 1, 2 ports of the N1265A through the
N1265A-040 10 kV Ultra High Voltage Gate Protection Adapter.
Table 7-6 Ordering example
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1505A-015 1 1.5 m cable
B1514A-FG 5 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
N1265A 1 Ultra High Current Expander / Fixture
N1265A-001 1 Ultra High Current Expander / Fixture
N1265A-010 1 500 A Ultra High Current 3-pin Inline Package Socket Module
N1265A-015 1 1500 A Current Option
(This option needs to be ordered only when 1500 A capability is required)
N1265A-040 1 10 kV Ultra High Voltage Gate Protection Adapter
N1268A 1 Ultra High Voltage Expander
N1268-STD 1 Ultra High Voltage Expander
GND
MCSMU
B1505A
MCSMU
MCSMU
F
S
F
S
F
S
GNDU
N1265A (Selector built-in)
UHC Input
V Control
I Control
N1268A UHV Exp
B1505A
MCSMU
MCSMU
16493J-001 Interlock cable (Included in N1268A)
F
S
UHV High
UHV Low
For Gate
For N126 8A
For N126 8A
164 93G-001 Digital I/O c able (Inc luded in N12 68A)
N1265A (Selector built-in)N1265AN1265A
N1265A-040
PA
N1254A-520UHV H
UHV L
High
Low
SMU 1
SMU 1
Gate H
Gate L
Gate F
Gate S
16493V-001
16494A-001 (Included in the MCSMU)
16493L-001 (Included in B1505A)
F
S
For N126 5A
For N126 5A
16493J-001 Interlock cable
(Included in B1505A)
16493G-001 Digital I/O c able
(Inclu ded in B1505A)
Selec tor
Out put
Selector
Input
