Keysight B1505A Configuration and Connection Guide 7-23

Connection and Ordering Examples

Package Device Measurement Configuration Examples

10 kV, 500 A, High Voltage Medium Current Configuration

• Device Type: Discrete MOSFET (3 terminals)

• Key Specification

• Max voltage/current: 10 kV/500 A

• High Voltage Medium Current capability: 2200 V/1.1 A, 1500 V/2.5 A

• Module Selector for multi-parameter automated measurement function

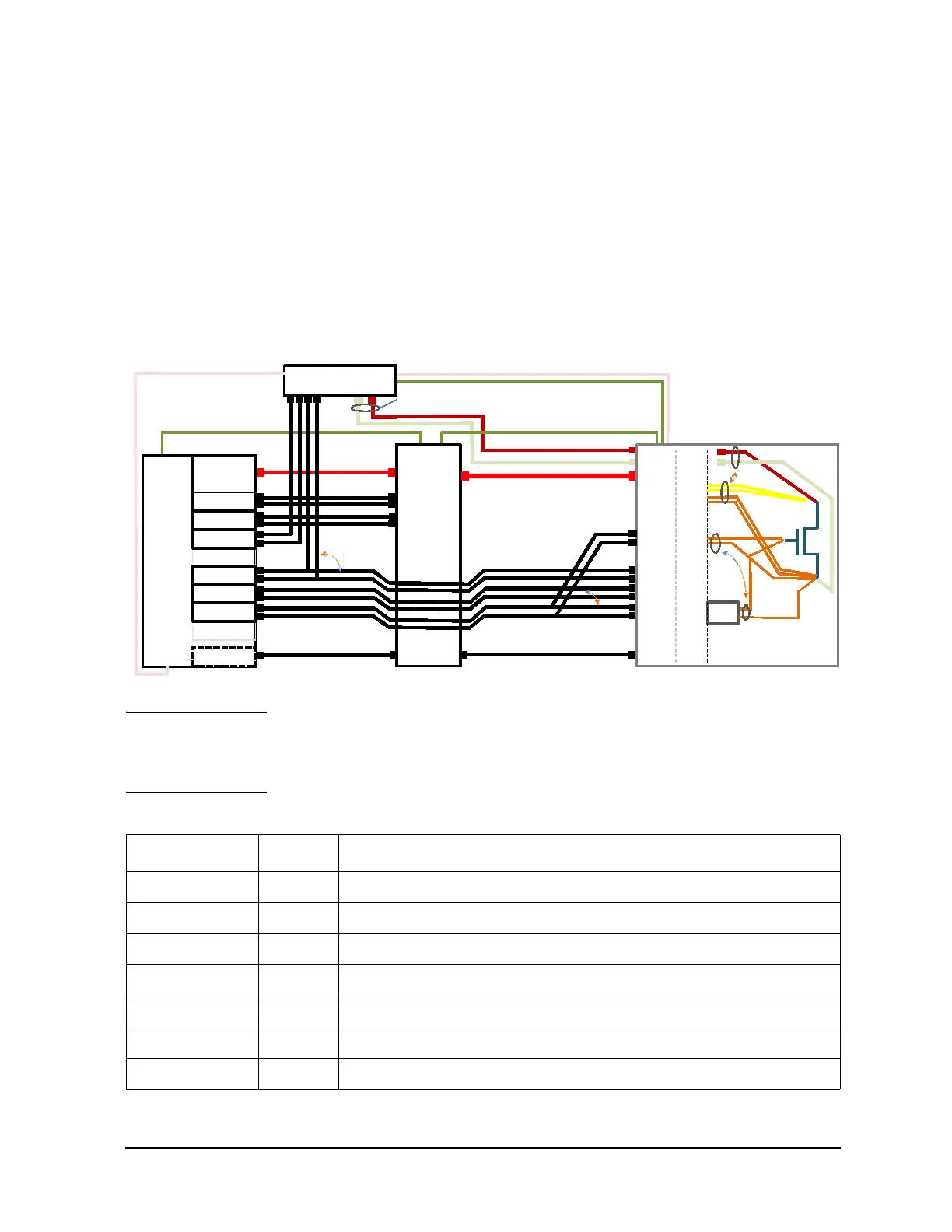

Figure 7-12 Connection example

NOTE When using a N1268A, Gate input ports of the N1265A Ultra High Current

Expander/Fixture cannot be used due to potential damage to these terminals. Instead,

device gate terminal should be connected to SMU 1, 2 ports of the N1265A through the

N1265A-040 10 kV Ultra High Voltage Gate Protection Adapter.

Table 7-11 Ordering example

Model/Option Quantity Description

B1505A 1 Power Device Analyzer/Curve Tracer mainframe

B1505A-015 1 1.5 m cable

B1513C-FG 1 High Voltage Source Monitor Unit, 3000 V/4 mA (Pulsed & DC)

B1514A-FG 6 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)

16493T 1 High Voltage Source Monitor Unit Cable

16493T-001 1 High Voltage Source Monitor Unit Cable (1.5 m)

16493L 1 Ground Unit Cable

N1266A

HVSMU

GNDU

MCSMU

B1505A

MCSMU

GNDU

Input O utput

Input

HVSMU

Output

High

Output

Low

VcontrolF

Vcontrol S

Icontrol F

Icontrol S

N1265A (Selector built-in)

N1268A UHV Exp

B1505A

MCSMU

For N1268A

16493J-001 Interlock cable (Included in N1268 A-STD)

16493G-001 Digital I/O cable

(Inc luded in N126 6A)

For Drain

For N1266A

For Gate

For N1265A

N1265A

UHV H

GNDU

UHV L

Selector

HVSMU

N1265A

N1265A-040

N1254A-520UHV H

UHV L

UHC Input

V Control

I Control

Selector

High

Low

SMU 1

For

N1265A /

N1268A

Gate H

Gate L

Gate F

Gate S

16493V-001

16493L-001

16493T-001

(Included

in the HVSMU)

16494A-001

(Inc luded in the MCSMU)

16493L-001 (Included in B1505 A)

16493T-001

16494A-001 (Included

in the MCSMU)

16493J Interlock cable

(Included in B1505A )

16493G-001 Digital I/O cable

(Inclu ded in N126 8A-STD)

16493G-001 Digital I/O cable

(Included in N1265A)
