7-18 Keysight B1505A Configuration and Connection Guide
Connection and Ordering Examples
Package Device Measurement Configuration Examples
3 kV, 40 A Configuration
• Device Type: Discrete MOSFET (3 terminals)
• Key Specification
• Max voltage/current: 3 kV/40 A without N1259A-300 Module Selector, 3 kV/30 A
with N1259A-300 Module Selector
• Module Selector for multi-parameter automated measurement function

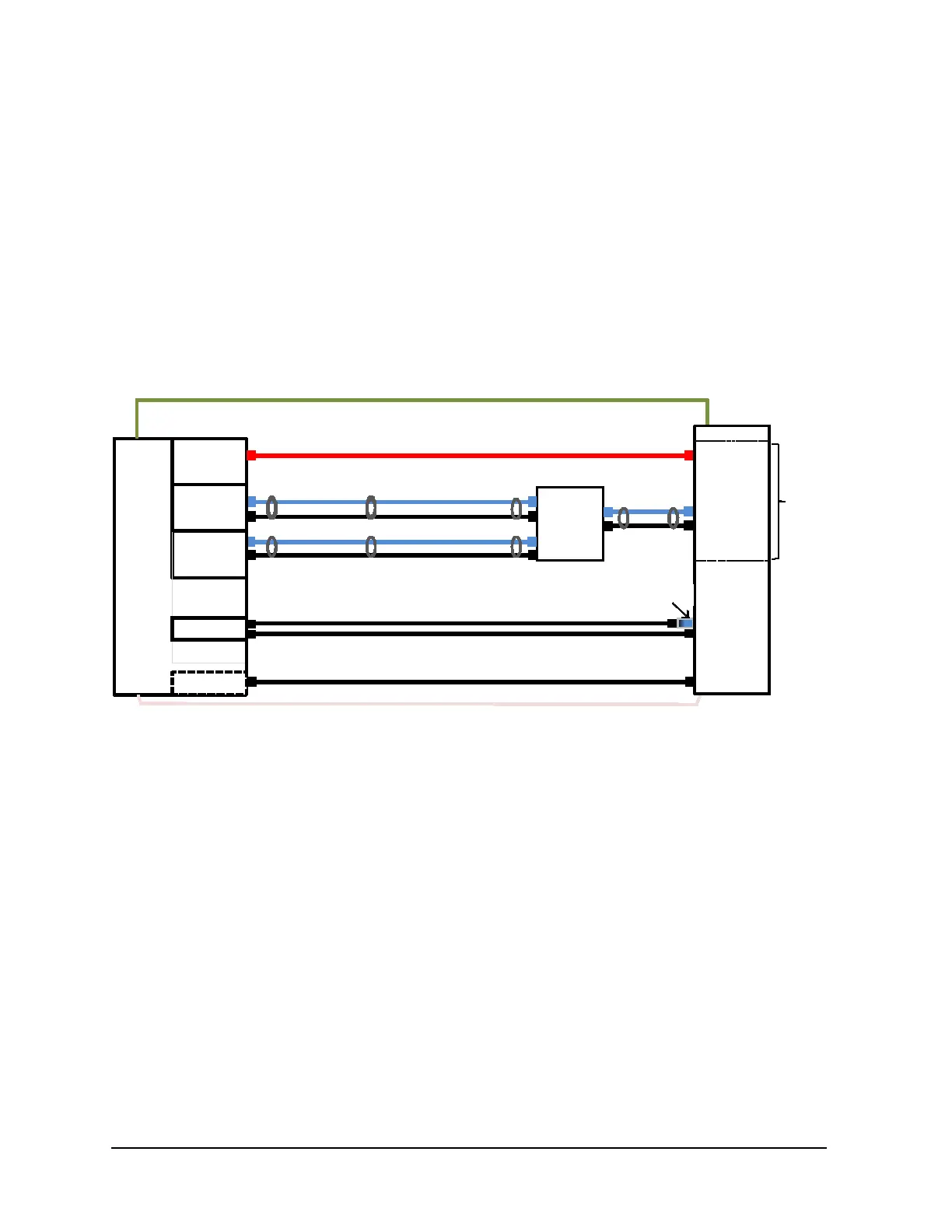

Figure 7-9 Connection example for 3 kV, 30A automated measurement with Module Selector
HCSMU
Dual HCSMU
CombinaÆŸon
adapter
16493S-021
HVSMU
HCSMU
GNDU
MCSMU
B1505A
16493G-001 Digital I/O cable (Included in N1259A-300)
HVSMU2
HCSMU2 F
HCSMU2 S
N1254A-104 TRX(J) to BNC(P) adapter
16493J Interlock cable (included in B1505A)
GNDU2
F
S
F
S
N1259A
F
S
For Gate
For Drain
For Drain
For Drain
HCSMU3 F
HCSMU3 S
16493T (Included in the HVSMU)
16493S (Included in the HCSMU)
16494A (Included in the MCSMU)
16493L (Included in B1505A)
30cm HCSMU cable
(Included in 16493S-021)
16493S (Included in the HCSMU)
Module
Selector
