7-26 Keysight B1505A Configuration and Connection Guide
Connection and Ordering Examples
Configuration Examples for Lateral Device Measurement with Wafer Prober
3 kV, 20 A Measurement for On-Wafer Lateral Device
• Device Type: Lateral MOSFET (4 terminals)
• Key Specification
• Max voltage/current: 3 kV/20 A

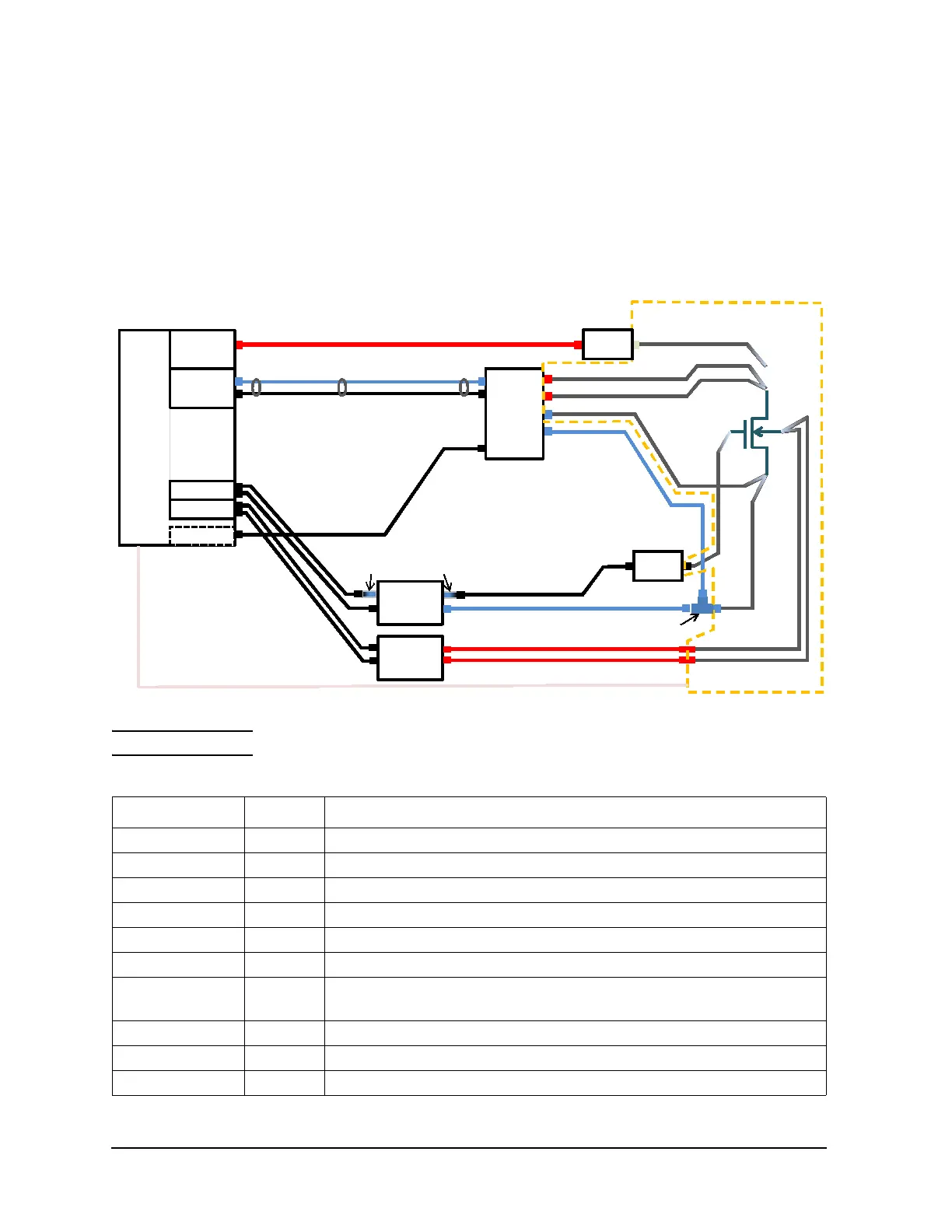

Figure 7-13 Connection example for 3 kV/20A measurement without N1258A Module Selector
NOTE Prober vendor is responsible for cabling inside the shielding box.
Table 7-13 Required equipment, accessories, and cables
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1511B-FG 1 Medium Power Source/Monitor Unit module (100 V/ 100 mA)
B1512A-FG 1 High Current Source Monitor Unit, 20 A/20 V(Pulsed); 1 A/40 V(DC)
B1513C-FG 1 High Voltage Source Monitor Unit, 3000 V/4 mA (Pulsed & DC)
B1514A-FG 1 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
16493T 1 High Voltage Source Monitor Unit Cable
16493T-001 or
002
2 High Voltage Source Monitor Unit Cable (1.5 m)
16493U 1 High Current BNC Coaxial Cable
16493U-001 2 High Current BNC Coaxial Cable (1.5 m)
16494A 1 Triaxial Cable
HVSMU
HCSMU
GNDU
MCSMU
B1505A
D
G
S
HCSMU Non-
Kelvin adapter
16493S-011
Dual HCSMU
Kelvi n
CombinaÆŸon
adapter
16493S-020
Chuck
HF
HS
LS
LF
MPSMU
ProtecÆŸon
Adapter
N1261A-003
For Gate
N1254A-104 TRX(J) to BNC(P) adapter
F
S
F
S
F
S
16493J Interlock cable (Included in the B1505A)
For Chuck
For Drain
For Drain
16493L
(Included in B1505A)
16493T (Included in the HVSMU)
16493S (Included in the HCSMU)
16494A-003
16494A
(Included in the MPSMU)
16493T
16494A
(Included in the MCSMU)
R-Box
1kO
N1262A-010
R-Box
100kO
N1262A-002
16493U-001
16493U-001
1250-2405
To Next Page
