7-6 Keysight B1505A Configuration and Connection Guide
Connection and Ordering Examples
Package Device Measurement Configuration Examples
3kV, 20A with Capacitance Measurement Configuration
(B1505AP-H21 equivalent)
• Device Type: Discrete MOSFET (3 terminals)
• Key Specification
• Max voltage/current: 3 kV/20 A
• Capacitance measurement with up to 3 kV DC bias
• Module Selector for multi-parameter automated measurement function

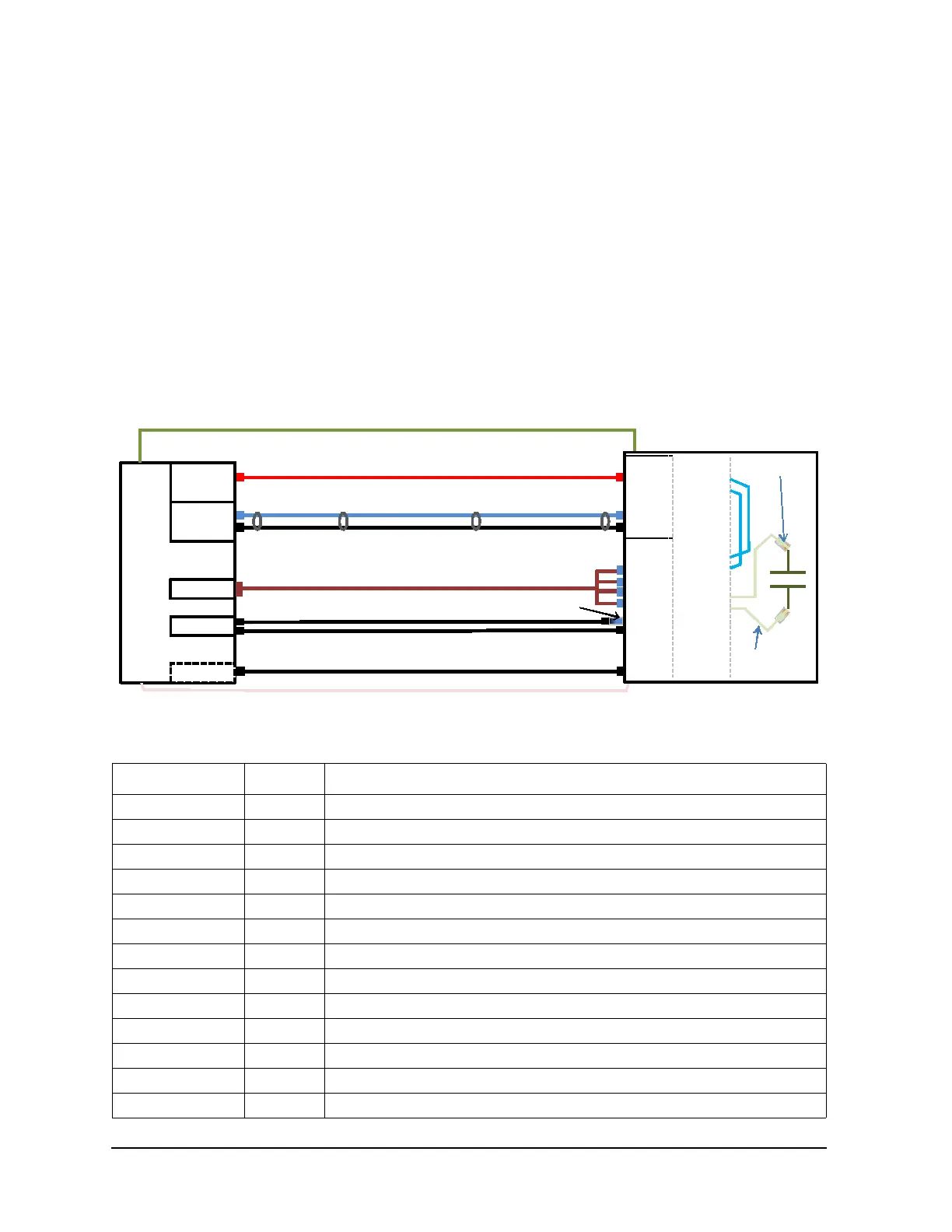

Figure 7-3 Connection example
Table 7-3 Ordering example
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1505A-015 1 1.5 m cable
B1512A-FG 1 High Current Source Monitor Unit, 20 A/20 V(Pulsed); 1 A/40 V(DC)
B1513C-FG 1 High Voltage Source Monitor Unit, 3000 V/4 mA (Pulsed & DC)
B1514A-FG 1 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
B1520A-FG 1 Multi Frequency Capacitance Measurement Unit Module
N1254A 1 Accessories for instruments and fixtures
N1254A-104 1 Triax (f) to BNC (m) adapter
N1259A 1 Test Fixture for Power Device
N1259A-001 1 Test Fixture including Inline Package Socket Module and Cables
N1259A-020 1 High Voltage Bias-Tee
N1259A-022 1 100 kohm R-box for gate
N1259A-030 1 1 kohm R-box
N1254A-508
N1254A-509
(Included in N1259A)
F
S
F
S
16494A-001 (included in the MCSMU)
GNDU
B1505A
MFCMU
HCS MU3 F
HCS MU3 S
HCS MU2 F
HCS MU2 S
N1254A-104 TRX(J) to BNC(P) adapter
GND U2
F
S
F
S
Hcur
Hpot
Lcur
Lpot
16493G-001 Digital I/O cable (Included in N1259A-300)
16493L-001 (included in B1505A)
16493J-001 Interlock cable (included in B1505A)
N1259A
For Gate
For Drain
For Drain
MFCMU
High
Low
DC Bias I nput
Force
Guard
HVSMU
Force
Guard
HVSMU
HVSM U2
HCSMU
MCSMU
N1300A-001 (Included in the MFCMU)
N1254A-513
(Included in N1259A-020)
N1254A-512
(Included in N1259A-020)
16493S-001 (Included in the HCSMU)
16493T-001 (Included in the HVSMU)
Module
Selector
To Next Page
