2-8 Keysight B1505A Configuration and Connection Guide
N1259A Connection Guide
Output Connection
Output Connection
The following parts are available for mounting a device under test (DUT) on the test
fixture. Prepare the part suitable for your DUT and attach it to the test fixture. For details,
see the following sections.
"N1259A-010 Inline Package Socket module" on page 2-19
"N1259A-011 Universal Socket Module" on page 2-20
"N1259A-012 Blank PTFE Board" on page 2-21
"N1259A-013 Curve Tracer Test Adapter Socket Module" on page 2-22
Required parts for making the output connections are listed in the following table.

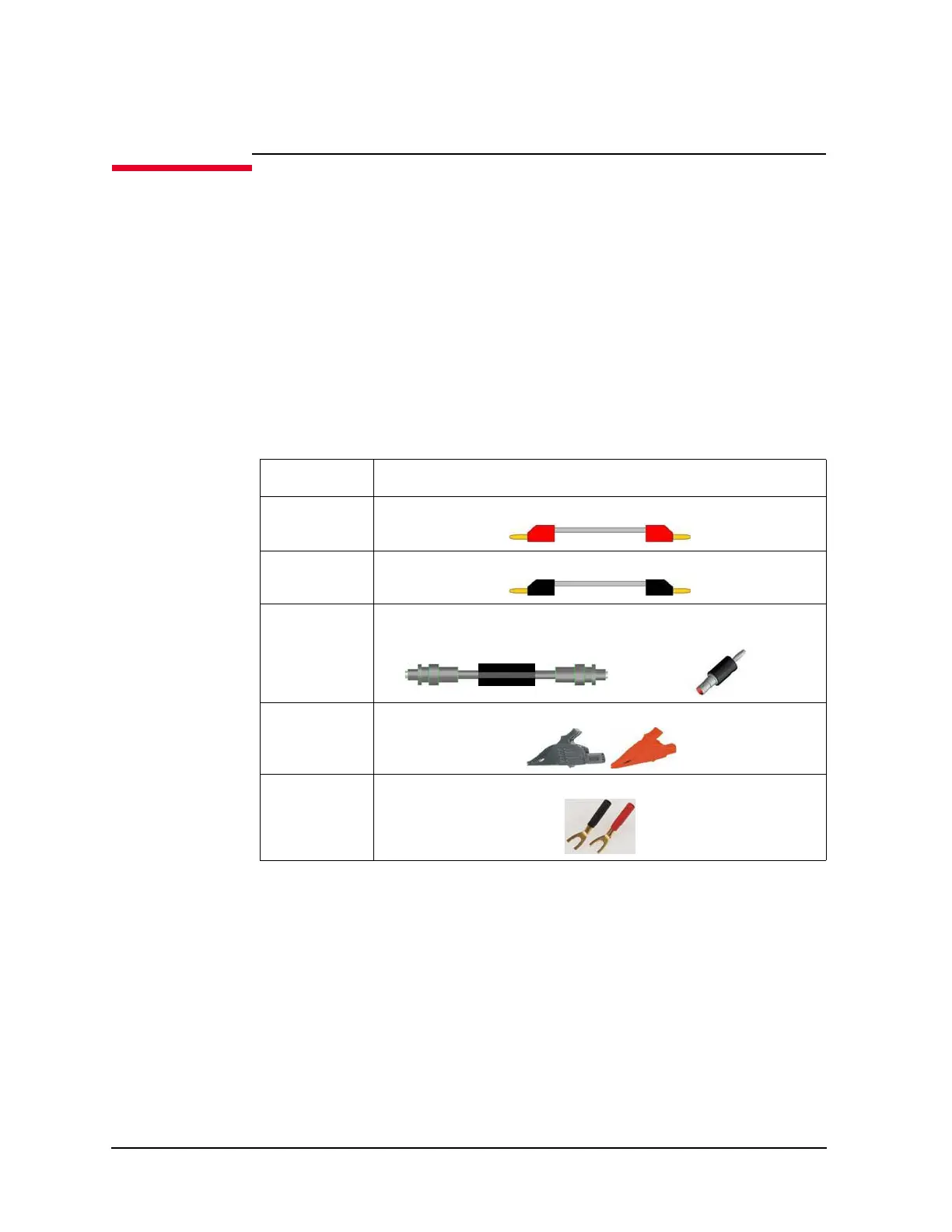

Table 2-5 Required Parts
Model/Option Description
N1254A-508 Connection wire, red
N1254A-509 Connection wire, black
N1254A-512
and
N1254A-513
SHV(plug)-SHV(plug) cable and SHV(jack)-banana adapter, for high
voltage capacitance measurement
N1254A-510 Dolphin clip adapter, red and black, for using blank board
N1254A-511 Cable lug adapter, red and black, for using blank board
