7-64 Keysight B1505A Configuration and Connection Guide
Connection and Ordering Examples
Configuration Examples for Vertical Device Measurement with Wafer Prober
10 kV, 500 A Measurement for On-Wafer Vertical Device
• Device Type: Vertical MOSFET (3 terminals)
• Key Specification
• Max voltage/current: 10 kV/500 A

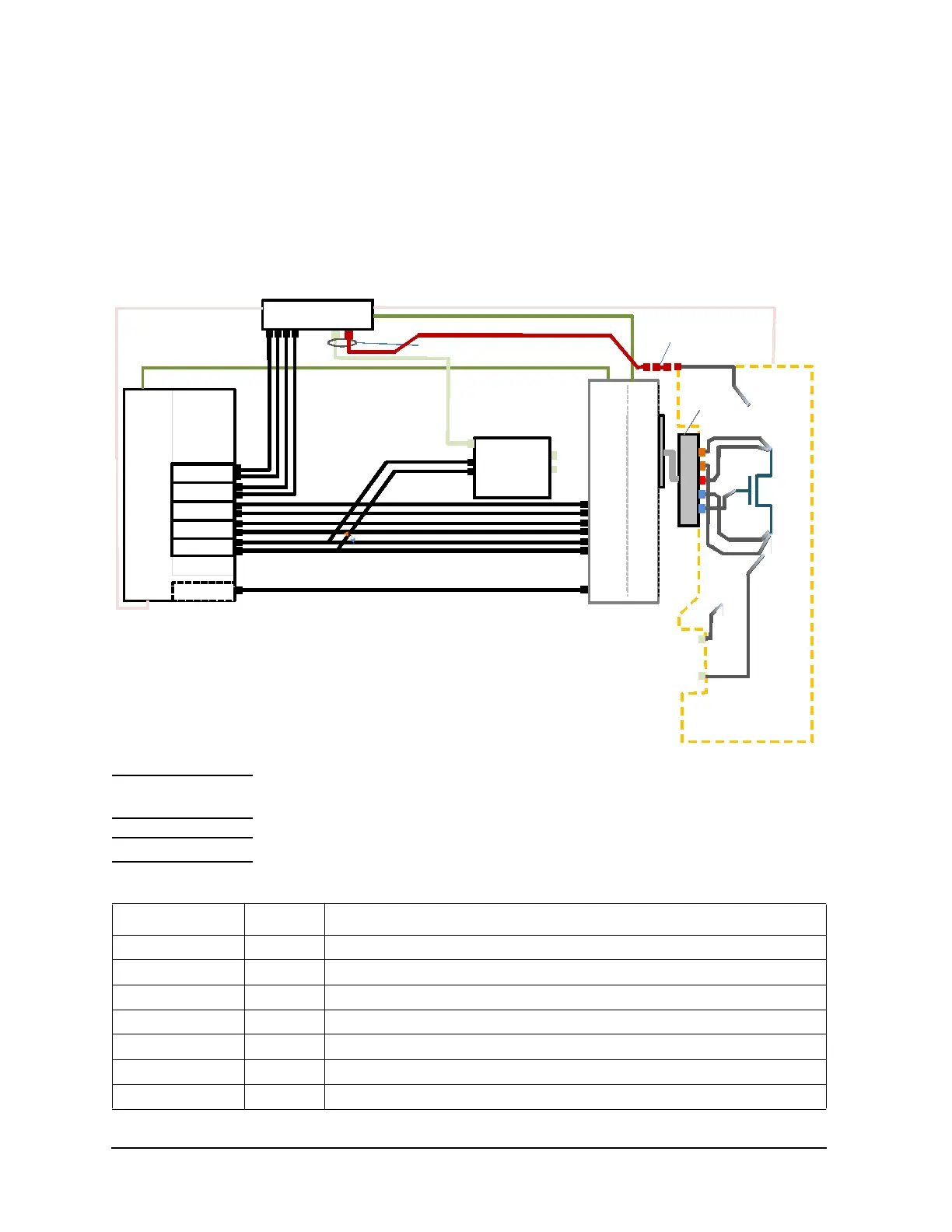

Figure 7-34 Connection example
NOTE When using the N1268A, P1, P2 and P4 terminals need to be connected to Gate, Source
and Drain respectively, instead of the connection shown in Figure 7-34.
NOTE Prober vendor is responsible for cabling inside the shielding box.
Table 7-31 Ordering example
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1514A-FG 5 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
16493V 1 10 kV Ultra High Voltage Cable
16493V-002 1 10 kV Ultra High Voltage Cable (3.0 m)
N1265A 1 Ultra High Current Expander/Fixture
N1265A-001 1 Ultra High Current Expander/Fixture
N1268A 1 Ultra High Voltage Expander
G
S
GNDU
MCSMU
B1505A
MC
MC
F
S
F
S
GND U
UHC Input
V Control
I Control
For Gate
HF
LF
HS
LS
G
ate
N1265A
Gate
Se le ctor
High
Low
N1254A-524
16493G-001 Digital I/O cable
(Included in N1265A)
MCSMU
MCSMU
N1268A UHV Exp
16493J Interlock
(Included in B1505A)
N1269A
P1
P2
For N126 5A
Gate
Source
Chuck
Chuck MCSMU F
Chuck MCSMU S
Gate MCSMU F
Gate MCSMU S
To S
P1
To G
To D
MC
MC
F
S
F
S
MCSMU
MCSMU
F
S
For N126 8A
D
(Chuck)
UHV Low
P4
Gate F
Gate S
16493L (Included in B1505A)
16494A (Included in the MCSMU)
16494A (Included in the MCSMU)
16493V-002 (3m cable)
16493G-001 Digital I/O cable (Included in N1268A)
N1254A-521
P2
16493J-001 Interlock cable (Included in N1268A)
F
S
F
S
F
S
F
S
For N126 8A
For N126 5A
To Next Page
