5-50 Keysight B1505A Configuration and Connection Guide
Connection Guide for Wafer Prober and Your Own Test Fixture
About Cable Connections
About Cable Connections
Prepare the open end cable assemblies listed in Table 5-39 which contain the connector
suitable for connecting the accessory, and connect it to your DUT interface.
• "To Make Connection to Reduce Leakage Current"
• "To Make Connection to Measure Low Resistance"
• "To Connect UHVU/HVSMU/HVMCU Output"

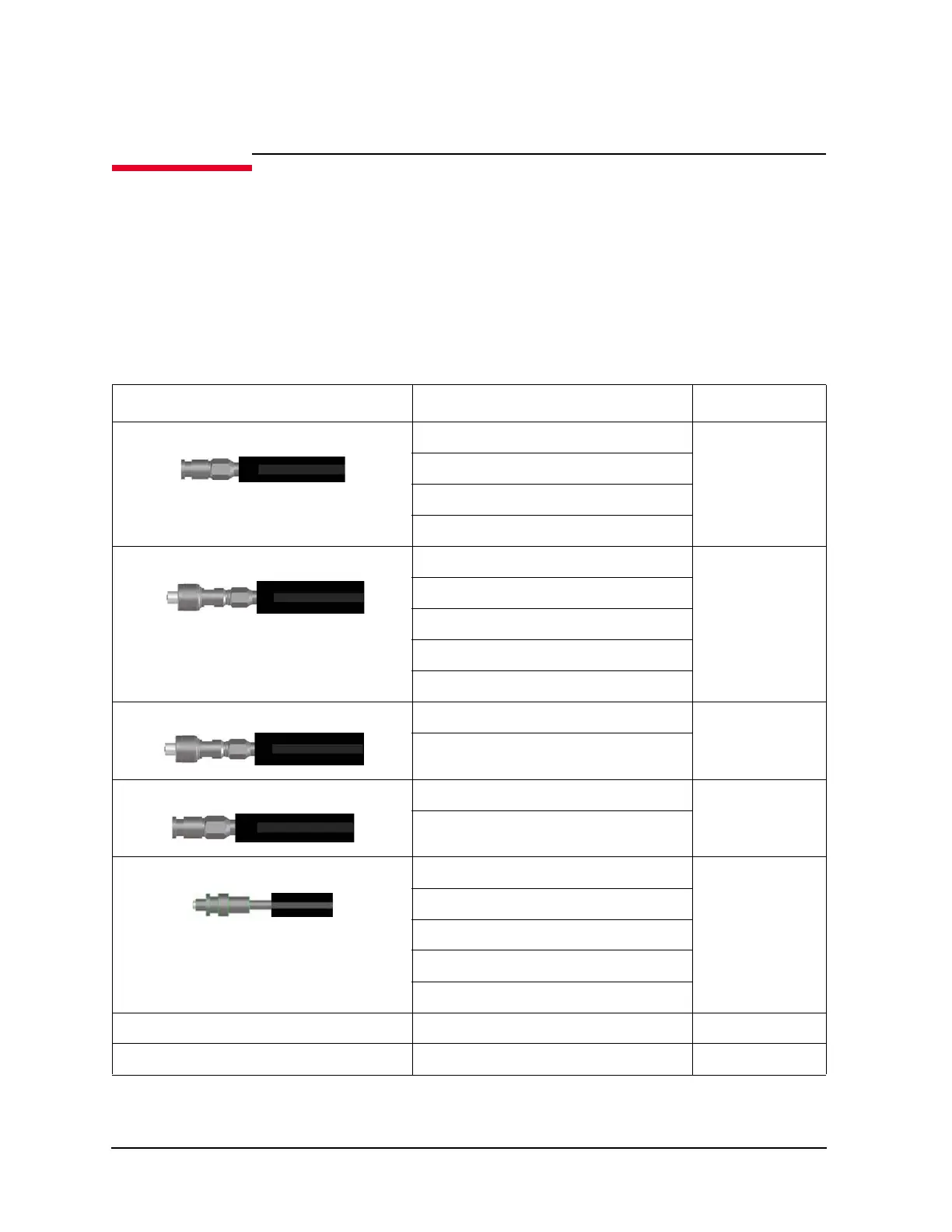

Table 5-39 Open End Cable Assemblies for Connecting Your DUT Interface
Cable assemblies Connect to Remarks
Coaxial cable with one BNC(m) N1258A Low Force/Sense N1254A-503
N1261A-002 Output Force/Sense
N1267A Low Force
N1254A-524 Low Sense and Gate
Triaxial cable with one HV(plug) N1261A-003 Output Force/Sense N1254A-505
N1258A High Sense
N1266A High
N1268A High Sense
N1254A-524 High Sense
Coaxial cable with one HV(plug) N1258A High Force N1254A-506
N1267A High Force
Triaxial cable with one Triaxial(m) N1261A-001 Output Force/Sense
N1262A-010/020 Output
Coaxial cable with one SHV(plug) N1260A Output Low/High/AC Guard N1254A-520
N1261A-004 Output Force/Sense
N1262A-001/002/011/021 Output
N1268A Low
N1269A Output Gate/Source/Chuck
Ultra high voltage cable with one UHV(plug) N1268A High N1254A-520
Ultra high current cable with one banana N1254A-524 High Force and Low Force N1254A-523
