Keysight B1505A Configuration and Connection Guide 7-47
Connection and Ordering Examples
Configuration Examples for Vertical Device Measurement with Wafer Prober
3 kV, 20 A Measurement for On-Wafer Vertical Device
• Device Type: Vertical MOSFET (3 terminals)
• Key Specification
• Max Voltage/Current: 3 kV/20 A

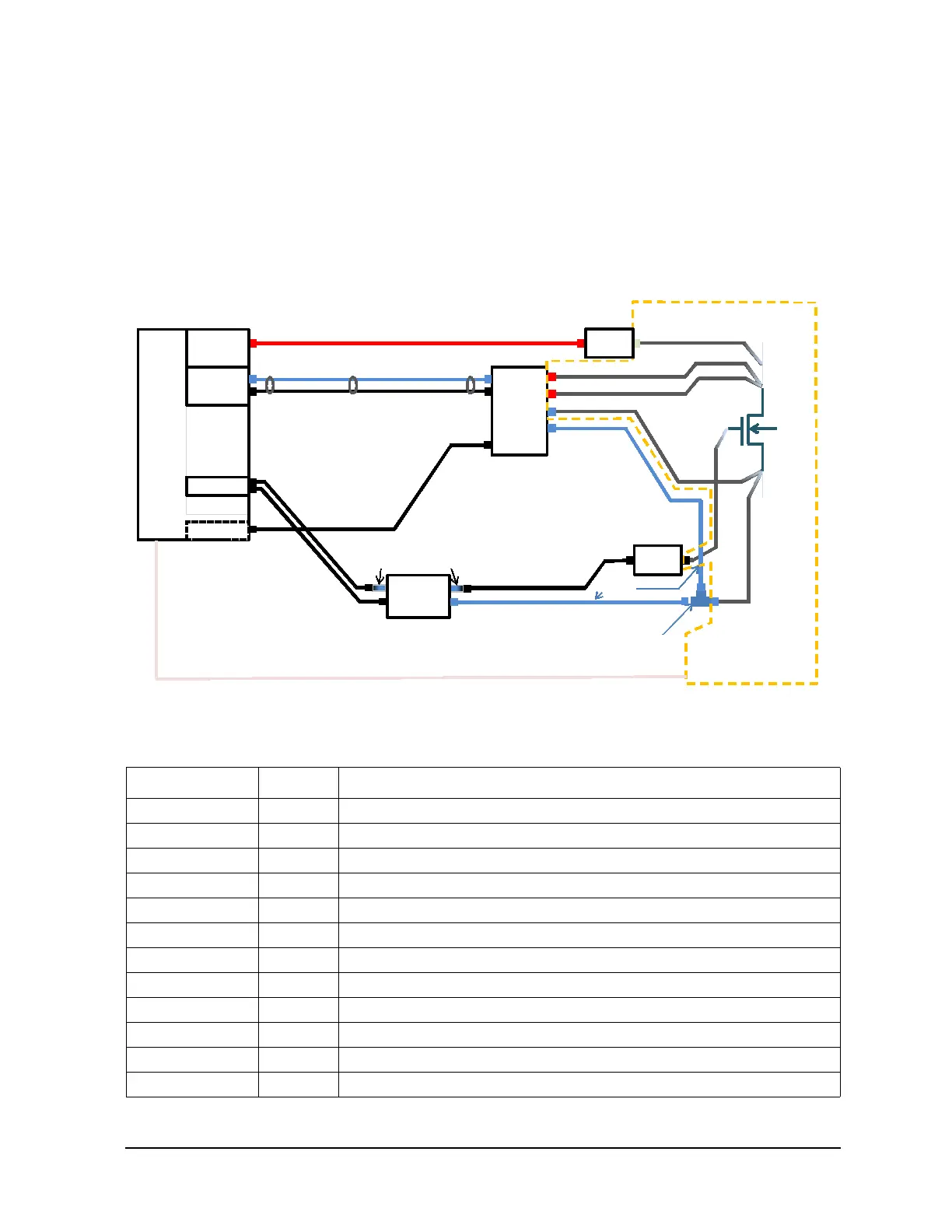

Figure 7-24 Connection example for 3 kV/20A measurement without N1258A Module Selector
Table 7-23 Required equipment, accessories, and cables
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1512A-FG 1 High Current Source Monitor Unit, 20 A/20 V(Pulsed); 1 A/40 V(DC)
B1513C-FG 1 High Voltage Source Monitor Unit, 3000 V/4 mA (Pulsed & DC)
B1514A-FG 1 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
16493U 1 High Current BNC Coaxial Cable
16493U-001 2 High Current BNC Coaxial Cable (1.5 m)
16494A 1 Triaxial Cable
16494A-003 1 Triaxial Cable (80 cm)
1250-2405 1 BNC-T Plug (m)-BNC (f)-BNC (f) adapter, 1ea
16493S 1 High Current Source Monitor Unit Cable
16493S-011 1 High Current Source Monitor Unit non-Kelvin Adapter
16493S-020 1 Dual HCSMU Combination Adapter
HVSMU
HCSMU
GNDU
MCSMU
B1505A
G
S
HCSMU Non-
Kelvin adapter
16493S-011
Dual HCSMU
Kelvi n
CombinaƟon
adapter
16493S-020
HF
HS
LS
LF
For Gate
N1254A-104 TRX(J) to BNC(P) adapter
F
S
F
S
16493J-001 Interlock cable
D(Chuck)
For Drain
For Drain
16493T (Included in the HVSMU)
16493S (Included in the HCSMU)
16494A
(Included in the MCSMU)
16493L
(Included in B1505A)
16494A-003
R-Box
1kO
N1262A-010
1250-2405
16493U-001
R-Box
100kO
N1262A-002
To Next Page
