Connection and Ordering Examples
GaN Current Collapse / Dynamic On-Resistance Measurement System using the N1267A
GaN Current Collapse / Dynamic On-Resistance
Measurement System using the N1267A
Non-Kelvin Connection with the N1259A Test Fixture for
Package Device
• Device Type: Lateral MOSFET (3 terminals)
• Key Specification
• Max Voltage/Current: 3 kV/20 A

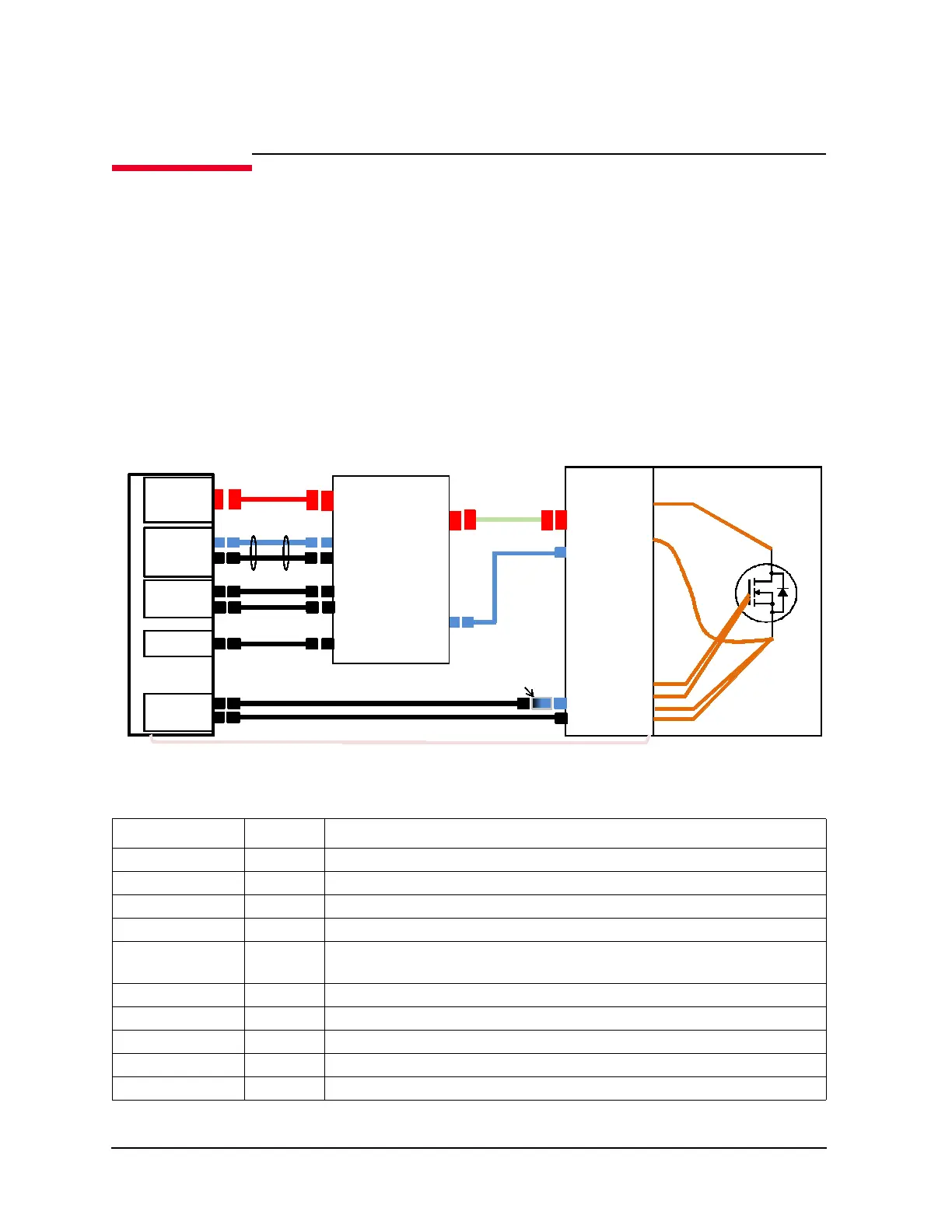

Figure 7-35 Connection example
Table 7-32 Ordering example
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1512A-FG 1 High Current Source Monitor Unit, 20 A/20 V(Pulsed); 1 A/40 V(DC)
B1513C-FG 1 High Voltage Source Monitor Unit, 3000 V/4 mA (Pulsed & DC)
B1514A-FG 2 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
N1267A 1 High Voltage Source Monitor Unit / High Current Source Monitor Unit Fast
Switch
N1259A 1 Test Fixture for Power Device
N1259A-001 1 Test Fixture including Inline Package Socket Module and Cables
N1259A-022 1 100 kohm R-box
N1259A-030 1 1 kohm R-box for gate
N1259A-035 1 Universal R-Box
N1267A
GNDU
B1514A
MCSMU
B1512A
HCSMU
B1513C
HVSMU
B1514A
MCSMU
HVSMU
F
S
F
S
GNDU
High
Low
HVSM U1
AUX 1
F
S
High F
High S
Low F
Low S
HV Force
AUX
Signal
HCSMU
MCSMU
B1505A
N1259A
16493T
(Included in the HVSMU)
16493U-001
N1254A-507
16493S
(Included in the HCSMU)
16494A
(Included in the MCSMU)
16494L
(Included in B1505A)
16494A
(Included in the MCSMU)
N1254A-104
TRX(J) to BNC(P) adapter
HCSMU2
HCSMU2
16493J Interlock cable (included in B1505A)
