Keysight Technologies B1505A Configuration Guide

5-34 Keysight B1505A Configuration and Connection Guide
Connection Guide for Wafer Prober and Your Own Test Fixture
To Connect HVSMU Current Expander
To Connect HVSMU Current Expander
The N1266A HVSMU current expander is used to configure the high voltage medium
current unit (HVMCU) by using the HVSMU module and the MCSMU modules as shown
in Figure 5-17. The N1266A should be installed near the B1505A.
The N1266A output can be selected from the HVSMU or HVMCU. The switching status is
indicated by the Status indicator mounted on the front panel. See Table 5-25 for the internal
connection.
NOTE To switch measurement resource
The configuration of the HVMCU is set by using the HVSMU Current Expander tab screen
of the Configuration window of the EasyEXPERT software. The measurement resource
HVMCU or HVSMU is controlled by each test setup. And the switching status is indicated
by the Status indicator mounted on the front panel. See Table 5-25 for the indication and
the connection path.

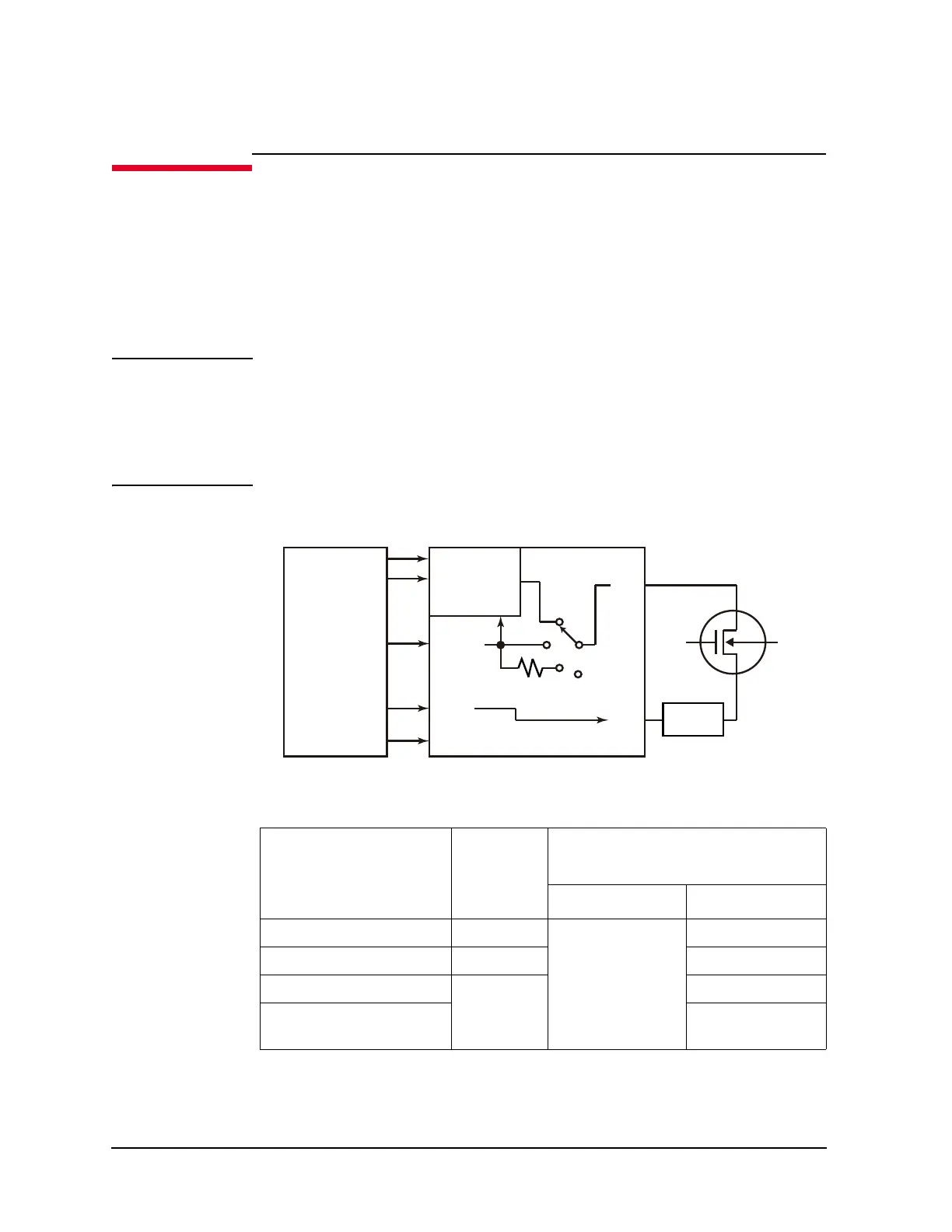

Figure 5-17 To Configure HVMCU
Table 5-25 N1266A Status Indicator and Input-to-Output Connection Path
Measurement resource
used for the test
Status
indicator
Input-to-output connection
1
of output
terminals
1. When a measurement is performed, the N1266A performs automatic switching
in every test. The N1266A makes the path to the output port from the measure-
ment resource used for the test.
Low High
GNDU only (off) GNDU
Force + Sense
Open
HVMCU HVMC HVMCU High
HVSMU HVSMU HVSMU Force
HVSMU and
built-in series resistor
HVSMU Force
+ Series resistor
N1266A HVSMU current expander
HVSMU
GNDU
V-control
I-control
Digital I/O Digital I/O
MC/HCSMU
MC/HCSMU
B1505A
HVSMU
GNDU
Low
DUT
Drain
Source
High
HVMCU
*1: N1261A-002/004 protection adapter is required for connecting prober.
N1261A-002
or 004(*1)
Open
