Keysight B1505A Configuration and Connection Guide 1-69
Configuration Guide
Upgrade Kit for N1265AU Test Fixture
Upgrade Kit for N1265AU Test Fixture

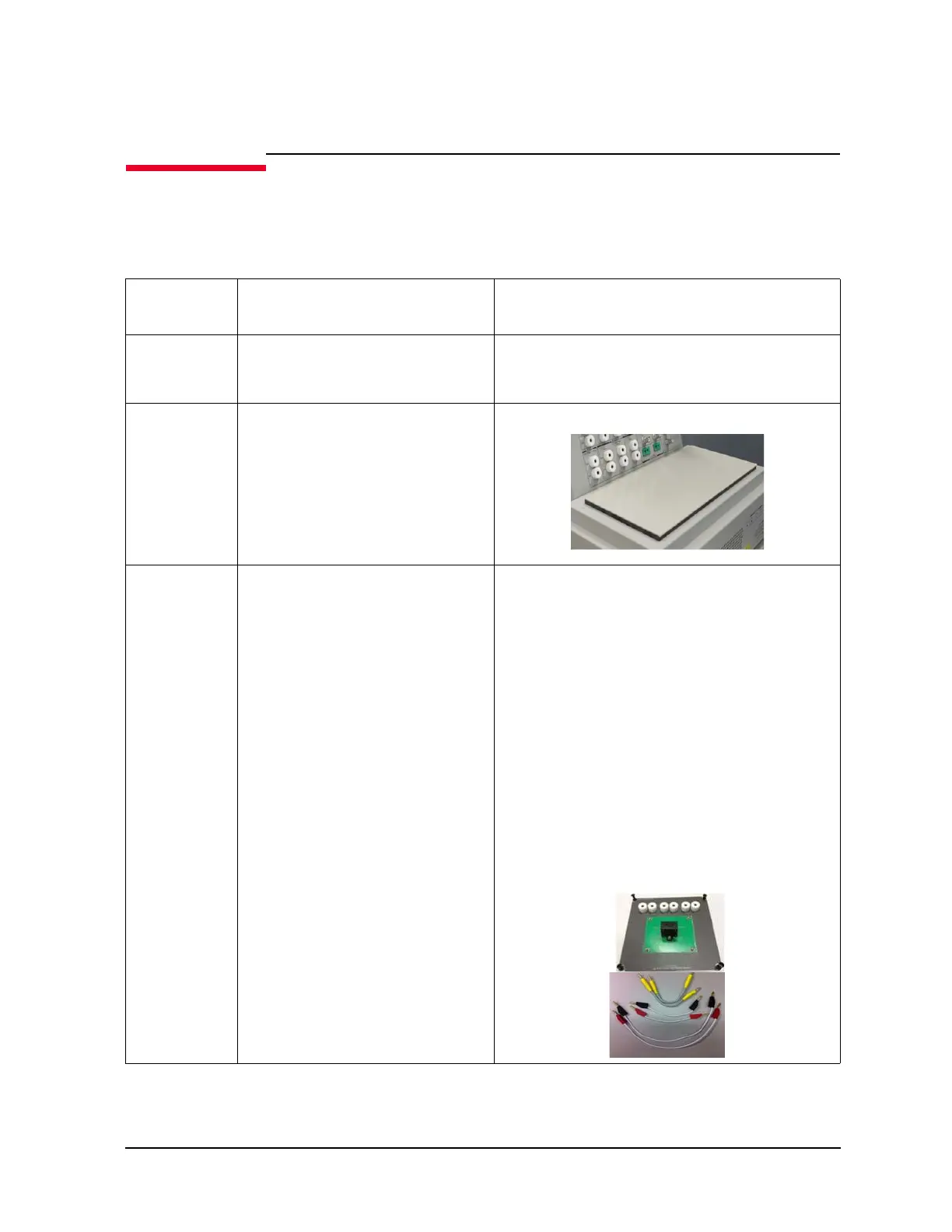

The following table lists upgrade kit options to expand own N1265A capability.
Table 1-31 Available options for upgrading N1265A
Model/
Option
Description Note
N1265AU Upgrade kit for N1265A This product is only available for N1265A owners.
No furnished items in main product. Please select
the following options.
N1265AU-002 Blank Silicon Plate
N1265AU-010 Inline Package Socket Module (3 pin) • The N1265A-010 is furnished with total six
cable shown below
• N1252A-522 1500A Ultra High Current
Banana to Banana Cables (Yellow, 2ea) for
Collector/Drain and Emitter/Source force
lines
• N1265-61751 Test Lead (Banana), 180mm
(Red, 1ea) and N1265-61752 Test Lead
(Banana), 180mm (Black, 1ea.) for
Collector/Drain and Emitter/Source sense
lines
• N1254A-508 Banana to Banana cable,
250mm (Red, 1ea), N1254A-509 Banana to
Banana cable, 250mm (Black, 1ea) for
Base/Gate force/sense lines
• Maximum voltage and current is 3 kV and 500
A.
