Keysight Technologies B1505A Configuration Guide

1-70 Keysight B1505A Configuration and Connection Guide
Configuration Guide

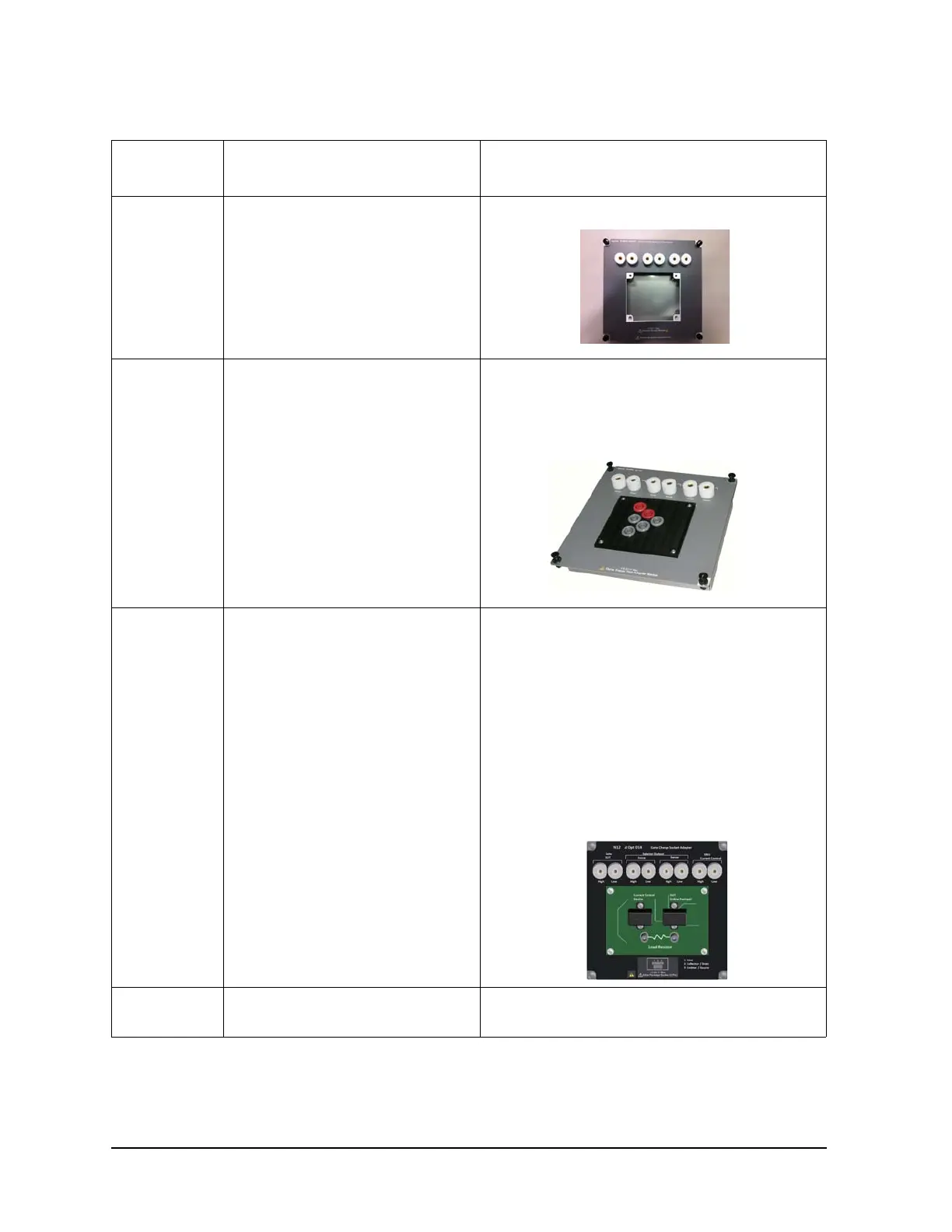

Upgrade Kit for N1265AU Test Fixture
N1265AU-011 Universal Socket Module • Maximum voltage is 3 kV.
N1265AU-013 Curve Tracer Test Adapter Socket
Module
• The N1265AU-013 is the same as the
N1259AU-013 Curve Tracer Test Adapter
Socket Module.
• Maximum voltage and current is 3 kV and 500
A.
N1265AU-014 Gate Charge Socket Module • The N1265AU-014 is the same as the
N1259AU-014 Gate Charge Socket Module.
• The N1265AU-014 option is furnished with:
- Four red long wires (N1254A-508)
- Four black long wires (N1254A-509)
- Two red short wires (N1265-61751)
- Two black long wires (N1265-61752)
- Two yellow high current banana-banana
cable (N1254A-522)
• Maximum voltage and current is 3 kV and 500
A.
N1265AU-015 1500 A Current Option • 1500 A upgrade must be done at Keysight
Service Center.
Model/
Option
Description Note
Collector / Drain
Emier / Source Base / Gate
N1259A Opt 013
Force Sense
Force Sense
Force Sense
Curve Tracer Test Adapter Socket
1
2
5
6
4
3
A
BC
59
