N1267A High Voltage Source Monitor Unit / High Current Source Monitor Unit Fast Switch
N1267A High Voltage Source Monitor Unit / High
Current Source Monitor Unit Fast Switch
The N1267A supports fast switching between the HVSMU and HCSMU to enable the
measurement of the GaN current collapse phenomena. The N1267A switch requires one
MCSMU in the B1505A mainframe for control. Please refer to Chapter 4 Connection and
Ordering Examples for connection examples for GaN current collapse measurement
system using the N1267A.

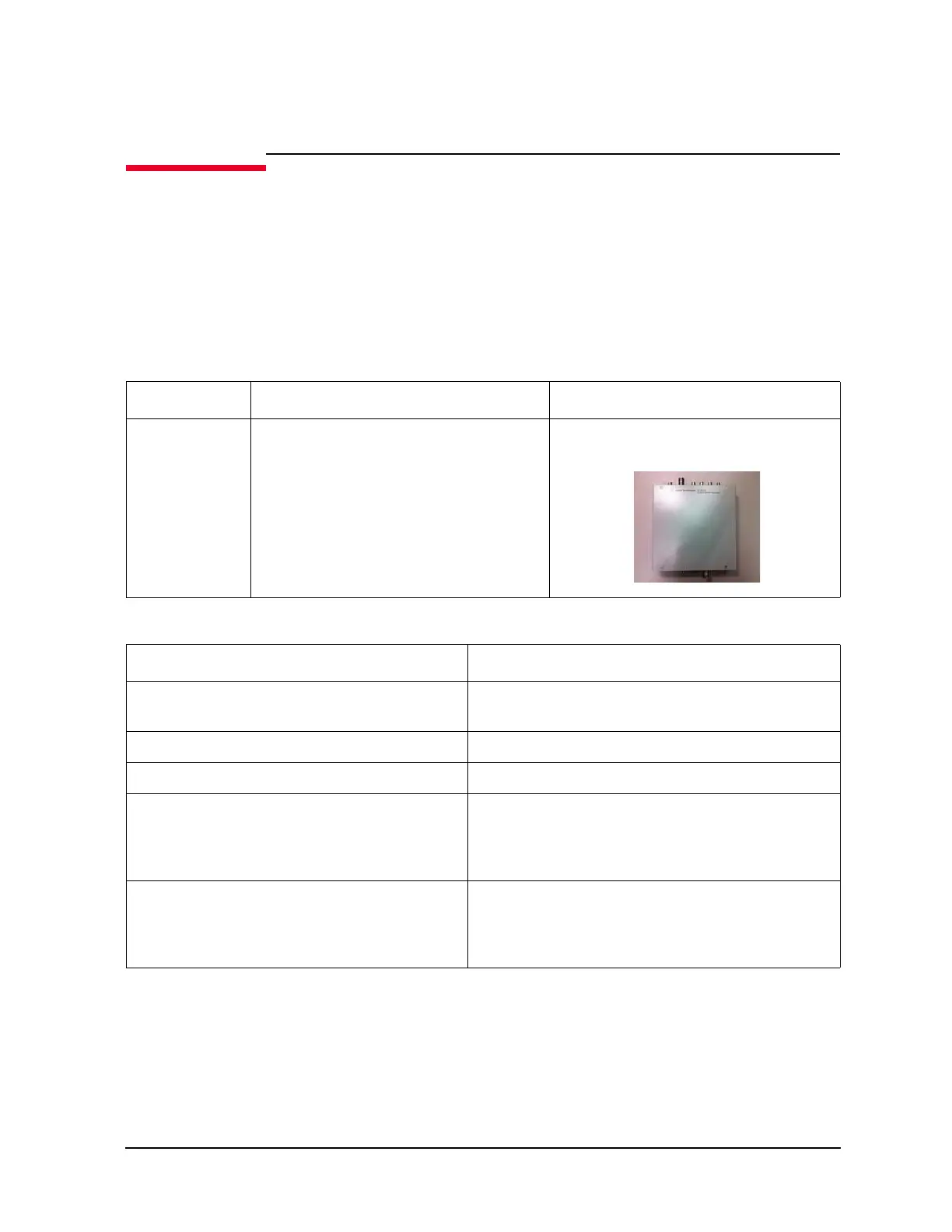

Table 1-11 Accessories for the N1267A HVSMU/HCSMU Fast Switch
Table 1-12 Supported B1505A modules for the N1267A HVSMU/HCSMU Fast Switch
Model/Option Description Additional Information
N1267A High Voltage Source Monitor Unit / High
Current Source Monitor Unit Fast Switch
• The N1267A is NOT furnished with any
cable.
Supported B1505A modules
Drain stress bias SMU at device OFF state • B1513B/C HVSMU (B1513A HVSMU is NOT
supported)
Drain current measurement SMU at device ON state • B1512A HCSMU
N1267A control SMU • B1514A MCSMU
Gate control SMU • B1514A MCSMU
• B1512A HCSMU
• B1510A HPSMU and B1511A/B MPSMU are NOT
supported as a gate control SMU.
Substrate bias SMU • B1510A HPSMU
• B1511A/B MPSMU
• B1512A HCSMU
• B1514A MCSMU
