7-72 Keysight B1505A Configuration and Connection Guide
Connection and Ordering Examples
GaN Current Collapse / Dynamic On-Resistance Measurement System using the N1267A
Kelvin Connection with Prober for On-Wafer Lateral Device
• Device Type: Lateral MOSFET (3 terminals)
• Key Specification
• Max Voltage/Current: 3 kV/20 A

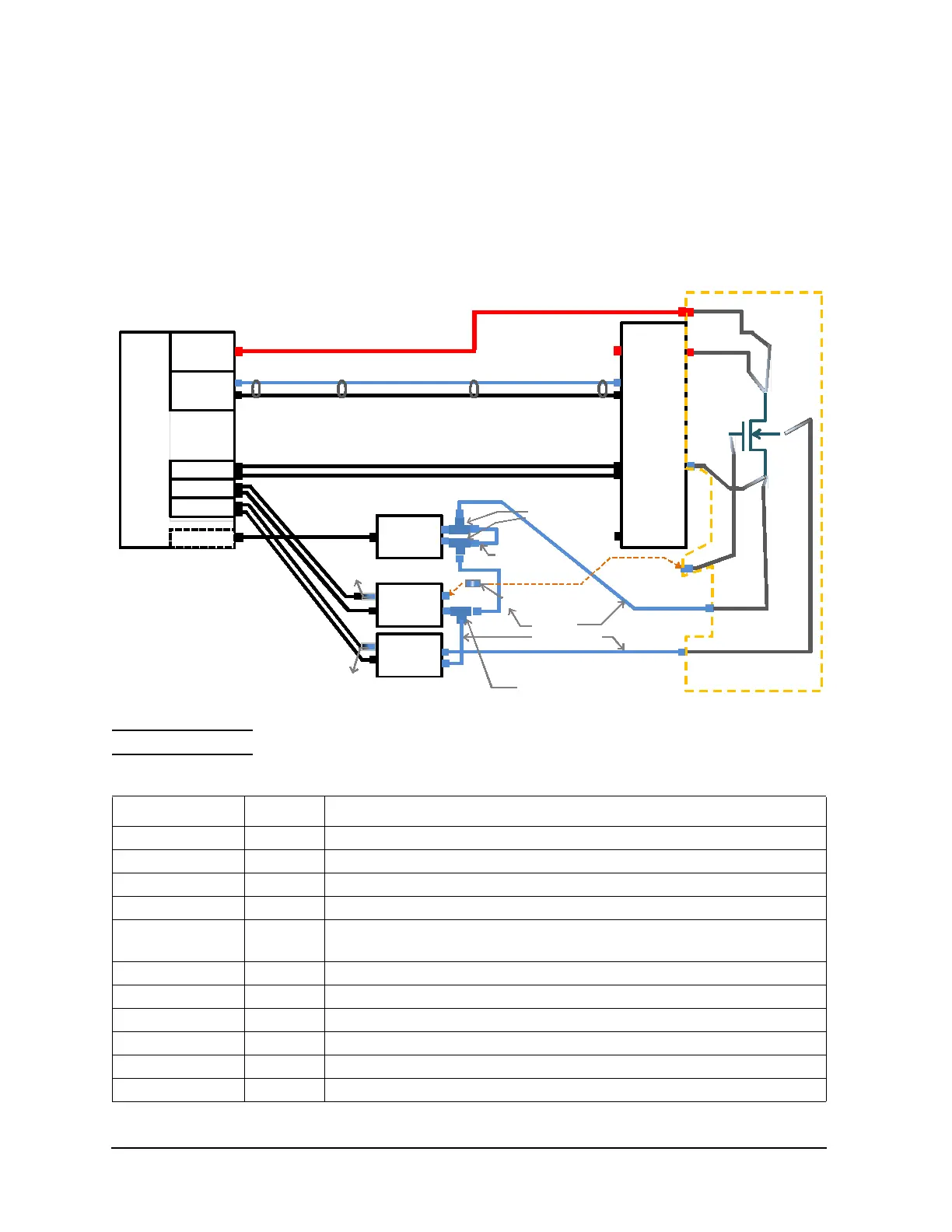

Figure 7-38 Connection example
NOTE Prober vendor is responsible for cabling inside the shielding box.
Table 7-35 Ordering example
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1512A-FG 1 High Current Source Monitor Unit, 20 A/20 V(Pulsed); 1 A/40 V(DC)
B1513C-FG 1 High Voltage Source Monitor Unit, 3000 V/4 mA (Pulsed & DC)
B1514A-FG 3 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
N1267A 1 High Voltage Source Monitor Unit / High Current Source Monitor Unit Fast
Switch
16493S 1 High Current Source Monitor Unit Cable
16493S-011 2 High Current Source Monitor Unit non-Kelvin Adapter
8120-1838 5 BNC Cable, 30 cm
1250-2405 3 BNC-T Plug (m)-BNC (f)-BNC (f) adapter, 1ea
N1254A 1 Accessories for instruments and fixtures
N1254A-104 2 Triax (f) to BNC (m) adapter
HVSMU
HCSMU
GNDU
MCSMU
MCSMU
B1505A
N1267A
For Gate
Chuck
D
G
S
N1267A
For Drain
For Drain
HCSMU Non-
Kelvin adapter
16493S-011
High
Low
HCSMU Non-
Kelvin adapter
16493S-011
N1254A-104 TRX(J) to BNC(P) adapter
8120-1838
BNC Cable, 30 cm
MCSMU
For Chuck
N1254A-104 TRX(J) to BNC(P) adapter
16494A (Included in the MCSMU)
16493T (Included in the HVSMU)
16493S (Included in the HCSMU)
16494A (Included in the MCSMU)
16493L (Included in B1505A)
1250-2405
P lug- BNC (f) -B NC (f)
GNDU
ProtecƟon
Adapter
N1261A-002
8120-1838
BNC Cable, 30 cm
1250-2405
Plug-BNC (f)-BNC (f)
N1262A-036 50 Ohm
TerminaƟon Adapter
HVSMU
F
S
HCSMU
F
S
MCSMU
GNDU
To Next Page
