Keysight B1505A Configuration and Connection Guide 2-19
N1259A Connection Guide
Output Connection
N1259A-010 Inline Package Socket module
This module provides a socket used for connecting three-terminal inline packaged device
and three couples of the Force and Sense terminals. Socket module internal connection is
shown in Figure 2-10.
Short bar is furnished with the module. It is used for performing the short correction before
the impedance measurement. Set the short bar before the short correction and remove it
after the correction.
To use this module, see the following simple instruction.
• Required parts:
N1254A-508 or N1254A-509 connection wire, 1 ea. for one connection
• Instruction:
1. Attach the socket module to the test fixture.
2. Connect wires between the socket module terminals and the fixture output
terminals.
For making the Kelvin connection, Force and Sense must be connected to Force
and Sense of the socket module respectively.
If MCSMU, HCSMU, or DHCSMU is used, High Force and Sense must be
connected to Force and Sense used for the high terminal of a device under test
(DUT), respectively. Low Force and GNDU Force must be connected to Force used
for the low terminal of the DUT, and Low Sense and GNDU Sense must be
connected to Sense used for the low terminal of the DUT. See Figure 2-3 for
example.
3. Set the DUT on the socket.
4. Close the fixture cover and perform measurement.
CAUTION Do not apply voltage/current over the maximum limit of the socket module.

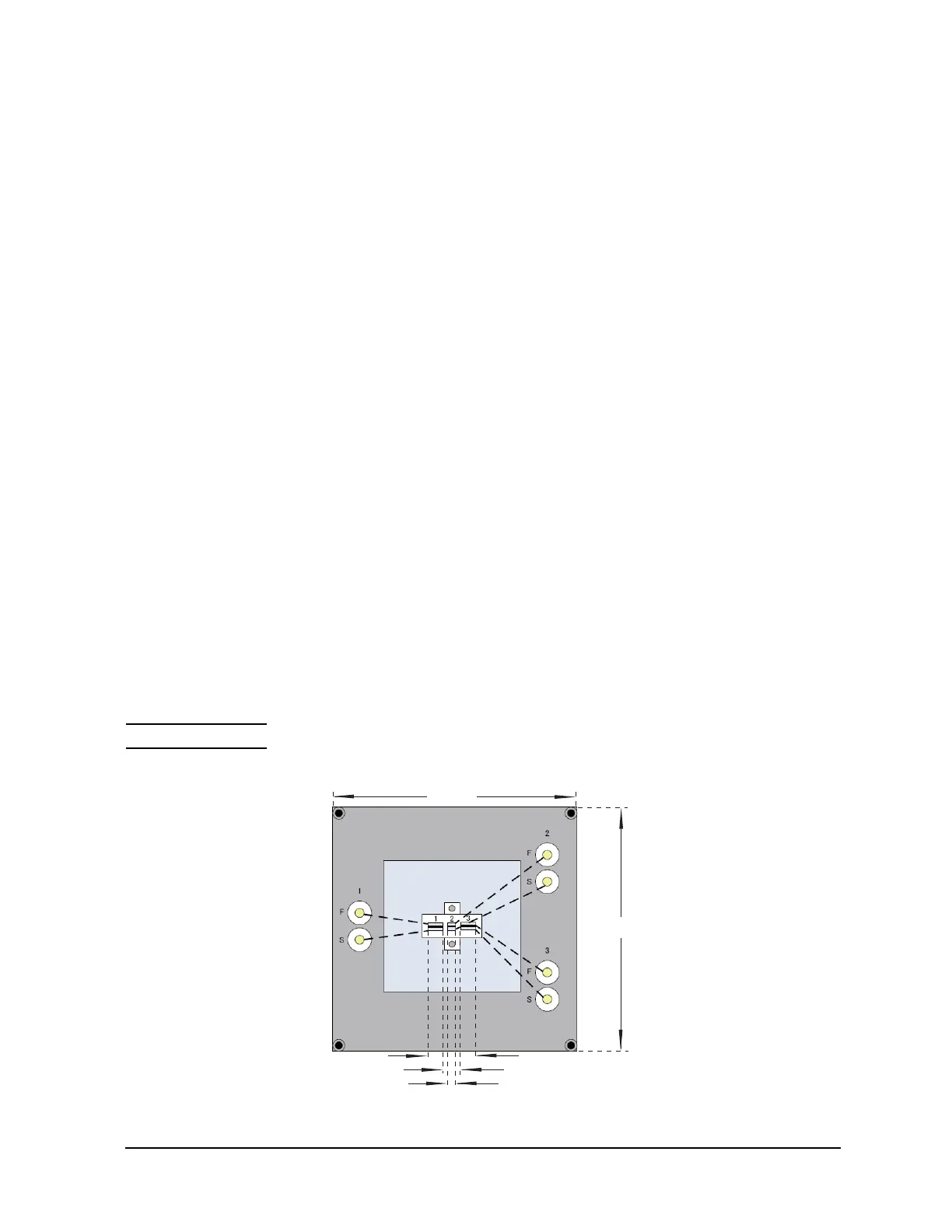

Figure 2-10 Inline Package Socket Module
2
Force
Sense
3
Force
Sense
1
Force
Sense
165 mm
165 mm
3.48 mm
1.78 mm
14 mm
Height: 34 mm
(45 mm including terminal)
(58 mm including socket)
Maximum voltage: 3000 V
Maximum current: 40 A pulse, 2 A dc
