Keysight Technologies B1505A Configuration Guide

2-18 Keysight B1505A Configuration and Connection Guide
N1259A Connection Guide
Output Connection
To Use High Voltage Bias-T
The high voltage bias-T is used to perform capacitance or impedance measurements using
DC bias of up to ± 3000 V. The bias-T High terminal is internally connected to the MF
CMU Hpot and Hcur input connectors. And the bias-T Low terminal is internally
connected to the MF CMU Lpot and Lcur input connectors.
• Required parts:
N1254A-512 SHV(plug)-SHV(plug) cable, 2 ea.
N1254A-513 SHV(jack)-banana adapter, 2 ea.
N1254A-508 or N1254A-509 connection wire, 2 ea.
• Connection:
See Figure 2-9.
1. Attach the SHV-banana adapter to the SHV cable, and make two cables.
2. Connect a cable (solid line) between the bias-T Low terminal and the low terminal
of DUT.
3. Connect a cable (solid line) between the bias-T High terminal and the high terminal
of DUT.
4. Connect a wire (dotted line) between a SMU Force output terminal and the DC Bias
Input High terminal. Use MPSMU for DC bias of up to ± 100 V, HPSMU for ± 200
V, or HVSMU for ± 3000 V.
5. Connect a wire (dotted line) between the SMU Guard output terminal and the DC
Bias Input Guard terminal.

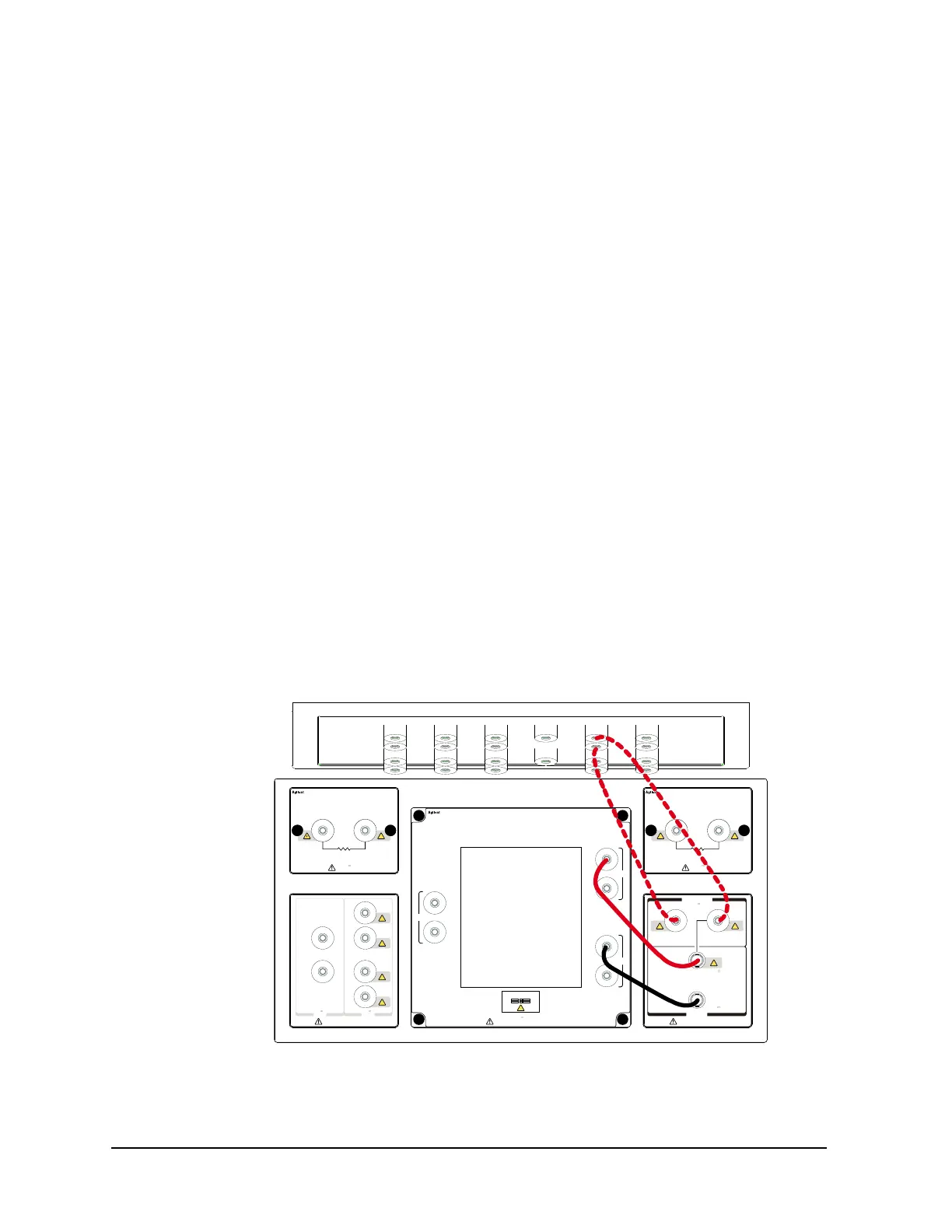

Figure 2-9 High Voltage Bias-T Connection Example
High Voltage Bias–Tee
Guard
Module Selector Output
Force
Sense
Guard
Sense
Force
1 MΩ
21
100 kΩ
HighLow
21
±3 kV Max±40 V Max
N1259A
Opt 022
±3 kV Max
Max: 6.4 W
±3 kV Max
Max: 9 W
N1259A
Opt 021
N1259A
Opt 010
Force
Sense
Force
Sense
Force
Sense
1
2
3
123
±3 kV Max
Inline Package Socket (3 Pin)
Kelvin Connection
MF CMU
DC Bias Input
±3 kV Max
High
Low
Force
±3 kV Max
±25 V Max
Guard
Guard
Force
