Keysight Technologies B1505A Configuration Guide

Keysight B1505A Configuration and Connection Guide 2-17
N1259A Connection Guide
Output Connection
To Use Universal R-Box
The universal R-box is a blank box, kind of a do-it-yourself kit for installing your desired
resistor.
To install the resistor, see the following simple instruction.
• Required parts:
your desired resistor, adequate rating
hexlobe (torx type) screwdriver T-10
label, for noting the resistance value
• Instruction:
1. Remove the cover bottom of the blank box.
2. Solder the resistor between the terminals 1 and 2.
To prevent discharge and any accident, make enough space between the resistor
leads and the shield or chassis. For example, make space of about 6 mm from the
leads for maximum 3000 V output.
3. Reattach the cover.
Make enough space between the resistor leads and the cover.
4. Write the resistance value in the label.
5. Affix the label to the top cover.

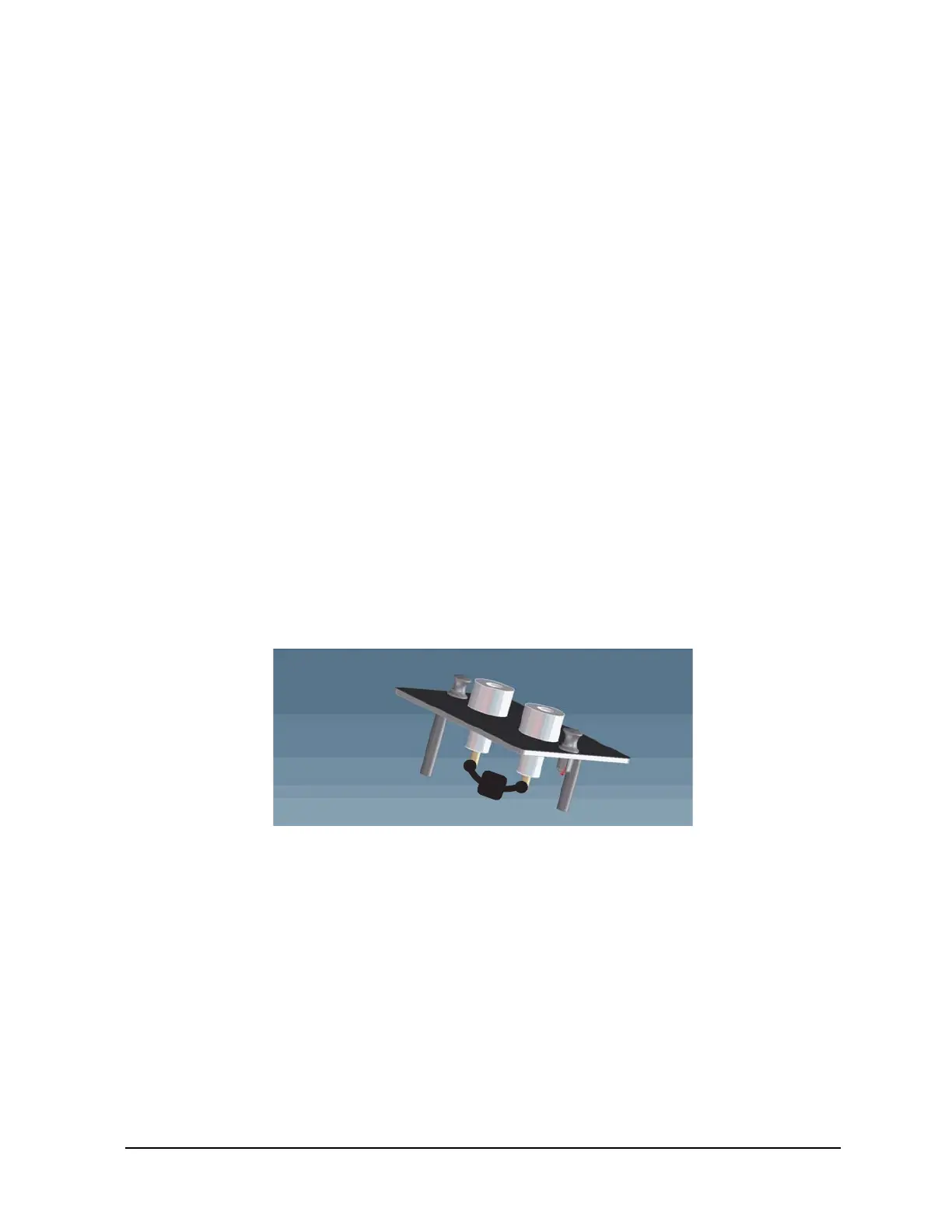

Figure 2-8 To Install Resistor in the N1259A-035 Universal R-Box
