Connection Guide for Wafer Prober and Your Own Test Fixture
To Connect HVSMU/HCSMU Fast Switch
To Connect HVSMU/HCSMU Fast Switch
Keysight N1267A HVSMU/HCSMU fast switch is used to switch quickly and
automatically the measurement resource, HVSMU or HCSMU, connected to the device
under test (DUT). This is effective for the current collapse measurement of GaN power
devices.
The N1267A can be used with the N1259A test fixture, but not with the N1265A test
fixture. See Table 2-3 for the input output cable connections.
If you use your DUT interface, see Table 5-4 and Figure 5-15 for the connection image.
The output cable connection is effective for all measurement performed by the
measurement resources connected to the Input terminals. Connection change is not
required. See Figure 5-16 for the internal connection.

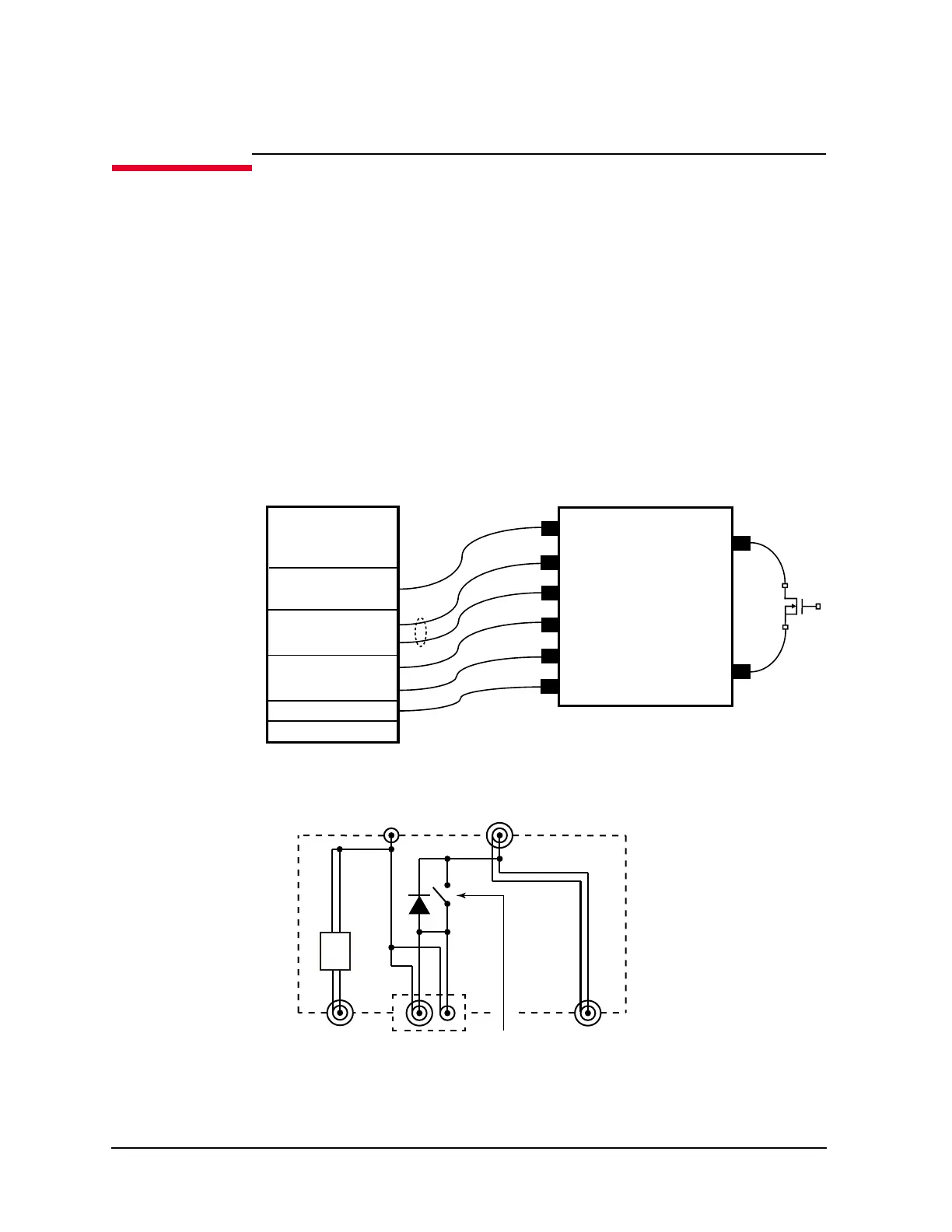

Figure 5-15 To Connect HVSMU/HCSMU Fast Switch
Figure 5-16 N1267A Simplified Internal Connections
HCSMU Force
N1267A Fast Switch
HVSMU Force
16493L
HCSMU Sense
MCSMU Force
MCSMU Sense
16493T
High Force
DUT
GNDU
16493S
16494A 2 ea.
Low Force
B1505A
HCSMU
Force
HVSMU
GNDU
MCSMU
Force
Sense
Force
Sense
Low High
F
F: Force
P.A
GNDU HCSMU HVSMU
SF
SF
F
P.A:
Protection adapter
F
When the HCSMU is used,
N1267A steps down
the High output voltage to
the HCSMU high output
voltage.
MCSMU
S, F
SW control
S: Sense
