N1273A-011 Universal Socket Module
This is a blank module, kind of a do-it-yourself kit for supporting variety of packaged
devices. This module can be used by mounting your desired socket or packaged device.

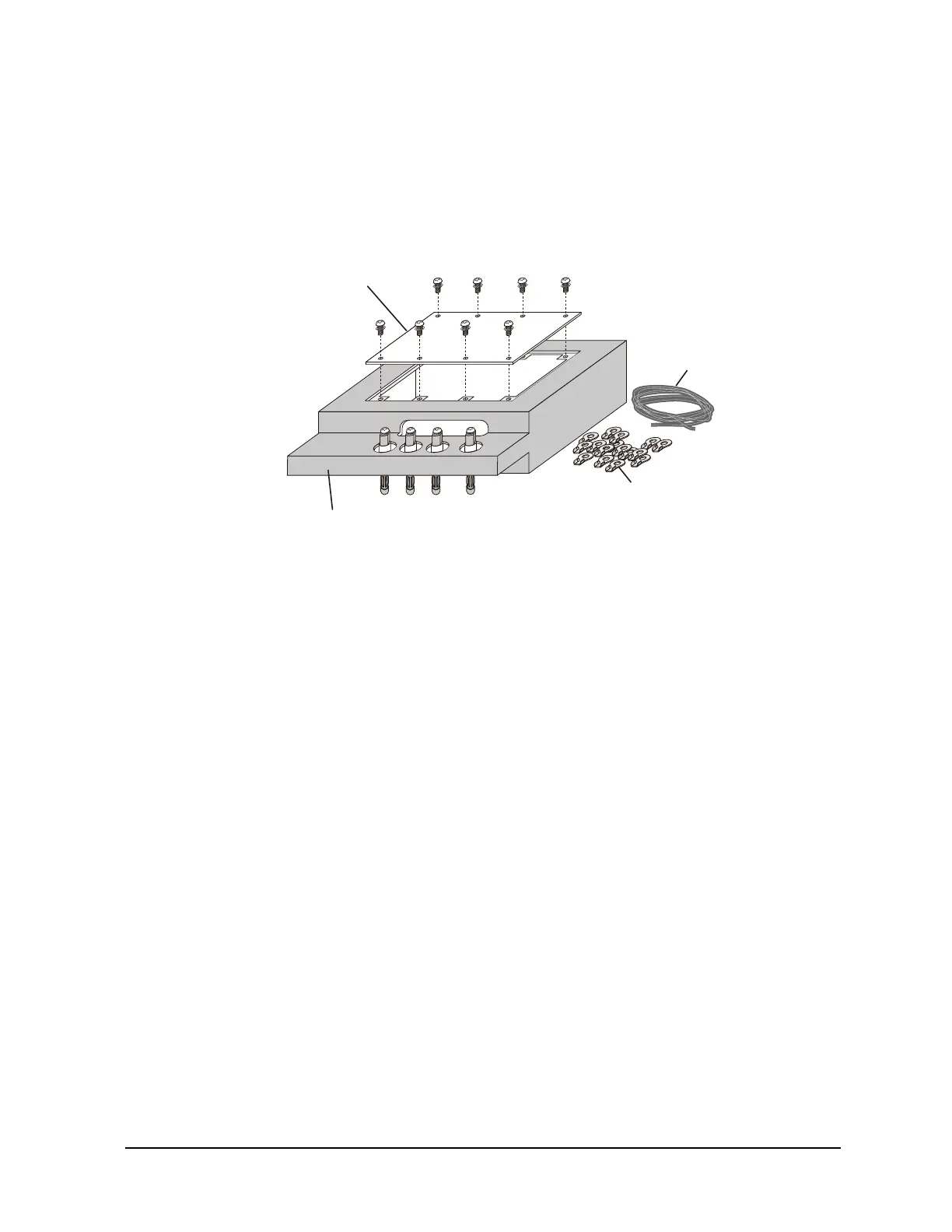

Figure 4-7 Universal Socket Module
To use this module, see the following simple instruction. For the dimensions and screw
holes of a blank board, see Figure 4-8. You can use their handmade socket modules with
the same manner as the 3-pin Inline Package Socket Module. See "3-pin Inline Package
Socket Module" on page 4-9.
•Requirements:
• Blank board suitable for mounting the socket or packaged device
• Screws for fixing the blank board, supplied with the socket module
• Wire (2 m, 1 ea.) supplied with the socket module
• Lug terminals (14 ea.) supplied with the socket module
• Socket, if you use, and packaged device under test (DUT)
• T-10 and T-15 Torx screwdrivers
• 9 mm wrench
• Caulking tool for lug terminals, 2.0sq
Prepare a socket for your test devices, a blank board, tools for mounting the socket,
screws and nut for socket terminals, and so on separately.
Dummy board or
Blank board
Lug terminals
Wire
Universal socket module (blank module)
To Next Page
