Keysight B1505A Configuration and Connection Guide 3-9
N1265A Connection Guide
Output Connection
Output Connection
The following parts are available for mounting a device under test (DUT) on the test
fixture. Prepare the part suitable for your DUT and attach it to the test fixture. For details,
see the following sections.
• "Inline Package Socket module (N1265A-010)" on page 3-17
• "Universal Socket Module (N1265A-011)" on page 3-18
• "Curve Tracer Test Adapter Socket Module (N1265A-013)" on page 3-19
• "Blank Silicon Plate (N1265A-002)" on page 3-22
Required parts for making the output connections are listed in the following table.

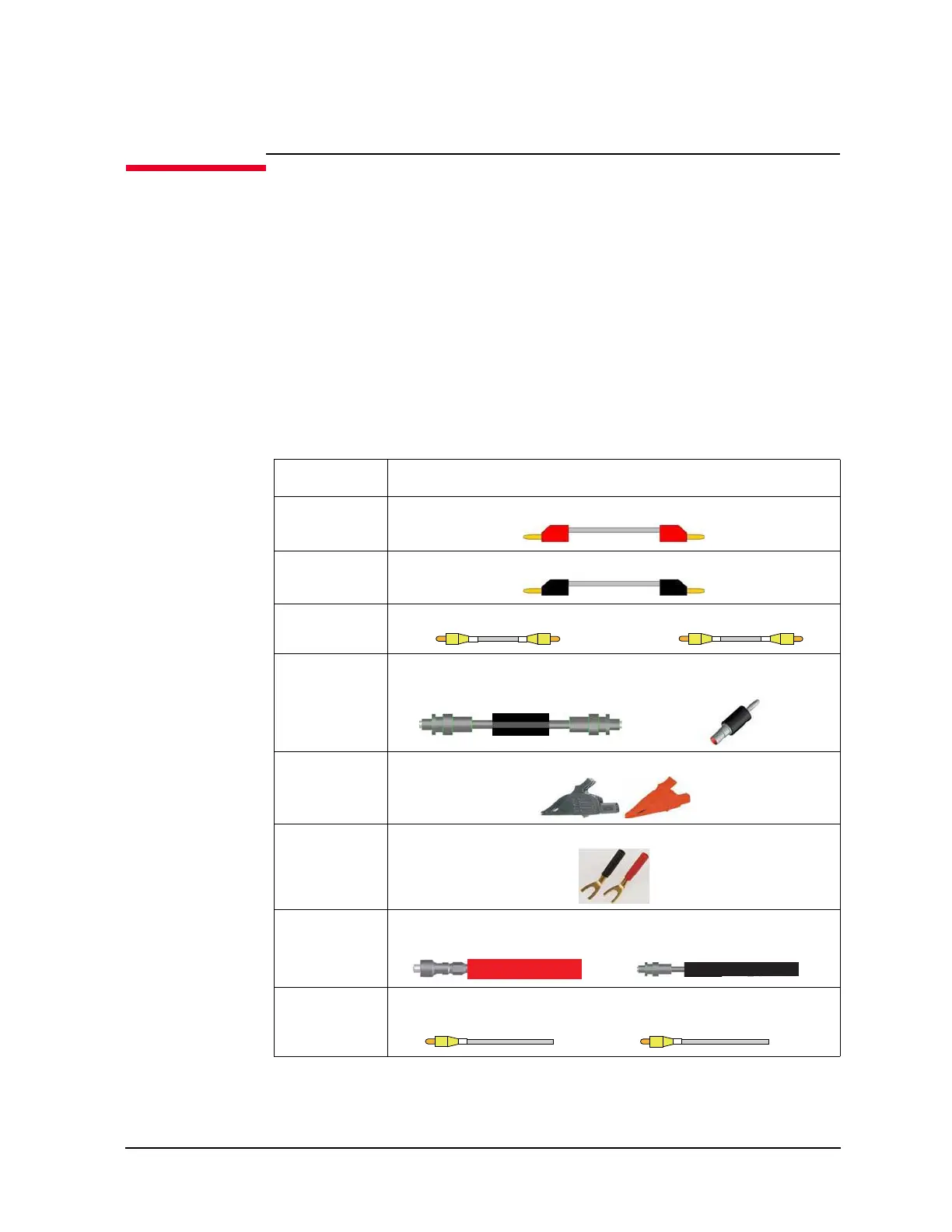

Table 3-5 Required Parts
Model/Option Description
N1254A-508 Connection wire, red, do not use with UHCU/UHVU
N1254A-509 Connection wire, black, do not use with UHCU/UHVU
N1254A-522 Connection wire, 2 ea., for using UHCU
N1254A-512
and
N1254A-513
SHV(plug)-SHV(plug) cable and SHV(jack)-banana adapter, for high
voltage capacitance measurement
N1254A-510 Dolphin clip adapter, red and black, for using blank plate
N1254A-511 Cable lug adapter, red and black, for using blank plate
N1254A-520 UHV(plug)/SHV(plug) to no connector cables, 1 m, for using UHVU
and blank plate
N1254A-523 Banana to no connector wire, 1 m, 2 ea., for using UHCU and blank
plate
