7-8 Keysight B1505A Configuration and Connection Guide
Connection and Ordering Examples
Package Device Measurement Configuration Examples
3 kV, 500 A or 1500 A Configuration (B1505AP-H50 or
B1505AP-H70 equivalent)
• Device Type: Discrete MOSFET (3 terminals)
• Key Specification
• Max voltage/current: 3 kV/500 A or 1500 A
• Module Selector for multi-parameter automated measurement function

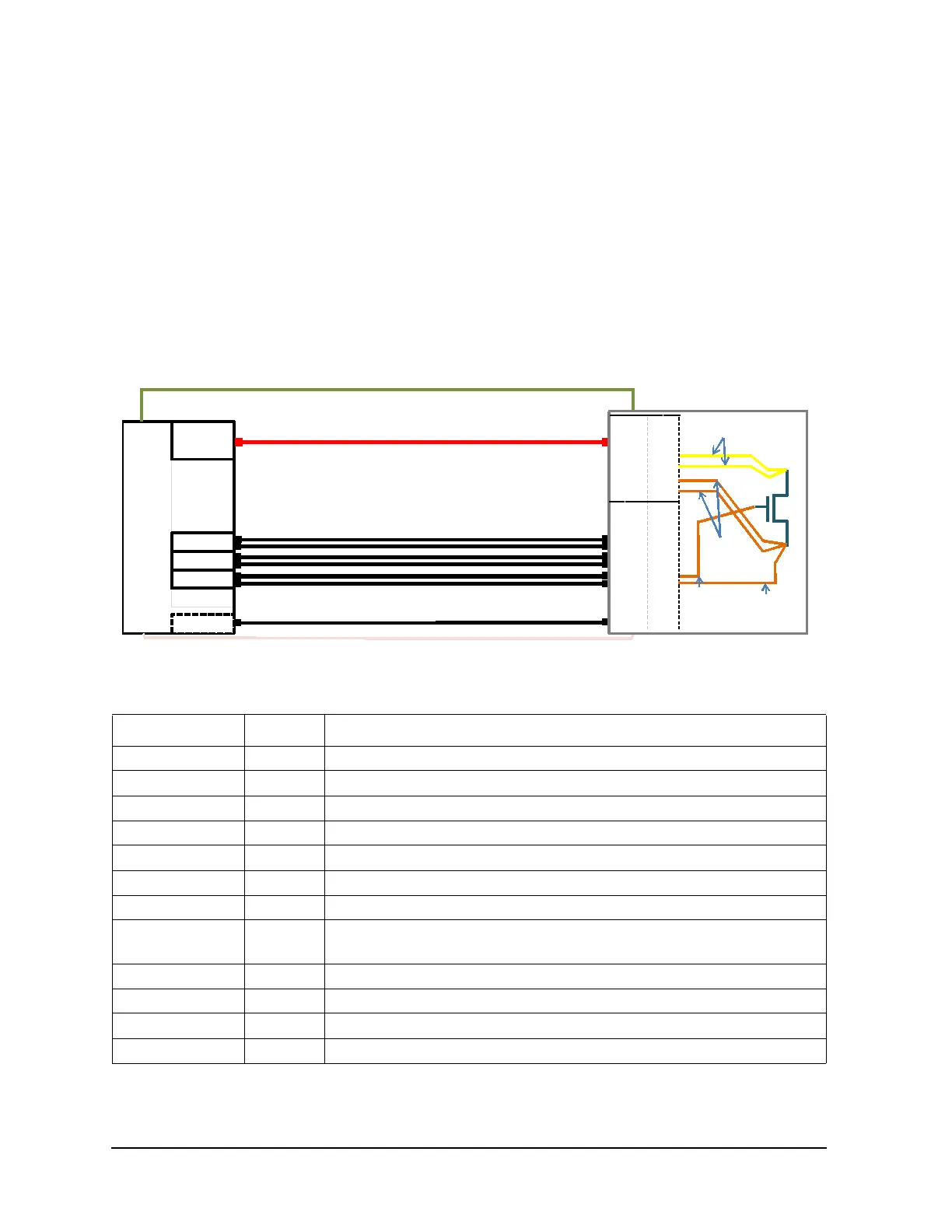

Figure 7-4 Connection example
Table 7-4 Ordering example
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1505A-015 1 1.5 m cable
B1513C-FG 1 High Voltage Source Monitor Unit, 3000 V/4 mA (Pulsed & DC)
B1514A-FG 3 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
N1265A 1 Ultra High Current Expander / Fixture
N1265A-001 1 Ultra High Current Expander / Fixture
N1265A-010 1 500 A Ultra High Current 3-pin Inline Package Socket Module
N1265A-015 1 1500 A Current Option
(This option needs to be ordered only when 1500 A capability is required)
N1254A 1 Accessories for instruments and fixtures
N1254A-508 4 Banana to Banana Cable 250 mm (red, 1ea)
N1254A-509 4 Banana to Banana Cable 250 mm (black, 1ea)
N1254A-510 3 Dolphin Clip 2 ea. (red and black)
HVSMU
GNDU
MCSMU
MCSMU
MCSMU
B1505A
F
S
F
S
F
S
For Gate
For N1265 A
For N1265 A
For Drain
UHC Input
V Control
I Control
N1265A (Selector built-in)
GNDU
HVSMU
Gate F
Gate S
Gat e H
Gat e L
Forc e H
Forc e L
Sen se H
Sen se L
N1254A-522
(Included in N1265A-010)
N1254A-508
(Includ ed in N1265A-010)
N1254A-509
(Included in N1265 A-010)
N126 5- 6 1 751 &
N1265A-612752
(Include d in N1265A-010)
Selector
Output
Selector
Input
16493J-001 Interlock cable (Included in B1 505A)
16493G-001 Digital I/O cable (Included in N1265A)
16493T-001 (Included in the HVSMU)
16493L-001 (Included in B1505A)
16494A-001 (Included in the MCSMU)
To Next Page
