Configuration Guide
N1265A Ultra High Current Expander/Fixture
N1265A Ultra High Current Expander/Fixture
The N1265A expands the B1505A’s current capability up to 1500 A. Current expansion is
made using the Ultra High Current Unit (UHCU), which is comprised of a current
expander in the N1265A and two MCSMUs which are connected to I/V control ports of the
N1265A. The MCSMU used for the I/V controller can be substituted by the HCSMU.
The following table lists the accessories available for the N1265A Ultra High Current
Expander/Fixture. Select the required accessories. If you add options later, please refer to
"Upgrade Kit for N1265AU Test Fixture" on page 1-69.

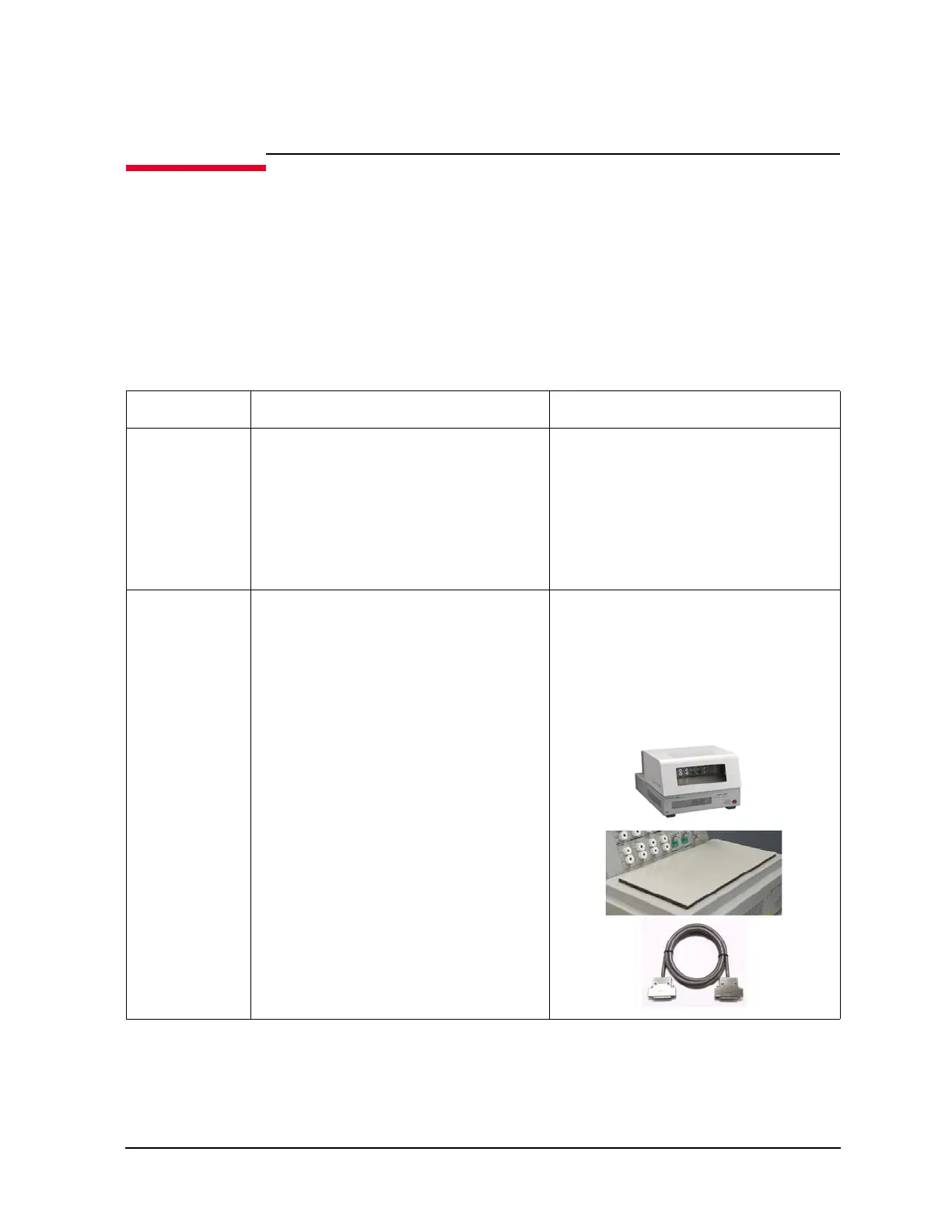

Table 1-8 Options and accessories for N1265A Ultra High Current Expander/Fixture
Model/Option Description Additional Information
N1265A Ultra High Current Expander/Fixture • The N1265A-001 is a mandatory option
for the N1265A. Please select options that
meet your needs.
• The N1265A UHC Expander/Fixture
does NOT have a built-in Bias-Tee option
like the N1259A Test Fixture. The
N1260A High Voltage Bias-Tee is
necessary for capacitance measurement.
N1265A-001 Ultra High Current Expander/Fixture • Mandatory option
• A 500A current amplifier and a built-in
module selector are included mandatorily.
• The N1265A-001 is furnished with a 1.5
m Digital I/O control cable
(16493G-001), a Blank Silicon Plate and
a power code.
