Keysight Technologies B1505A Configuration Guide

1-18 Keysight B1505A Configuration and Connection Guide
Configuration Guide

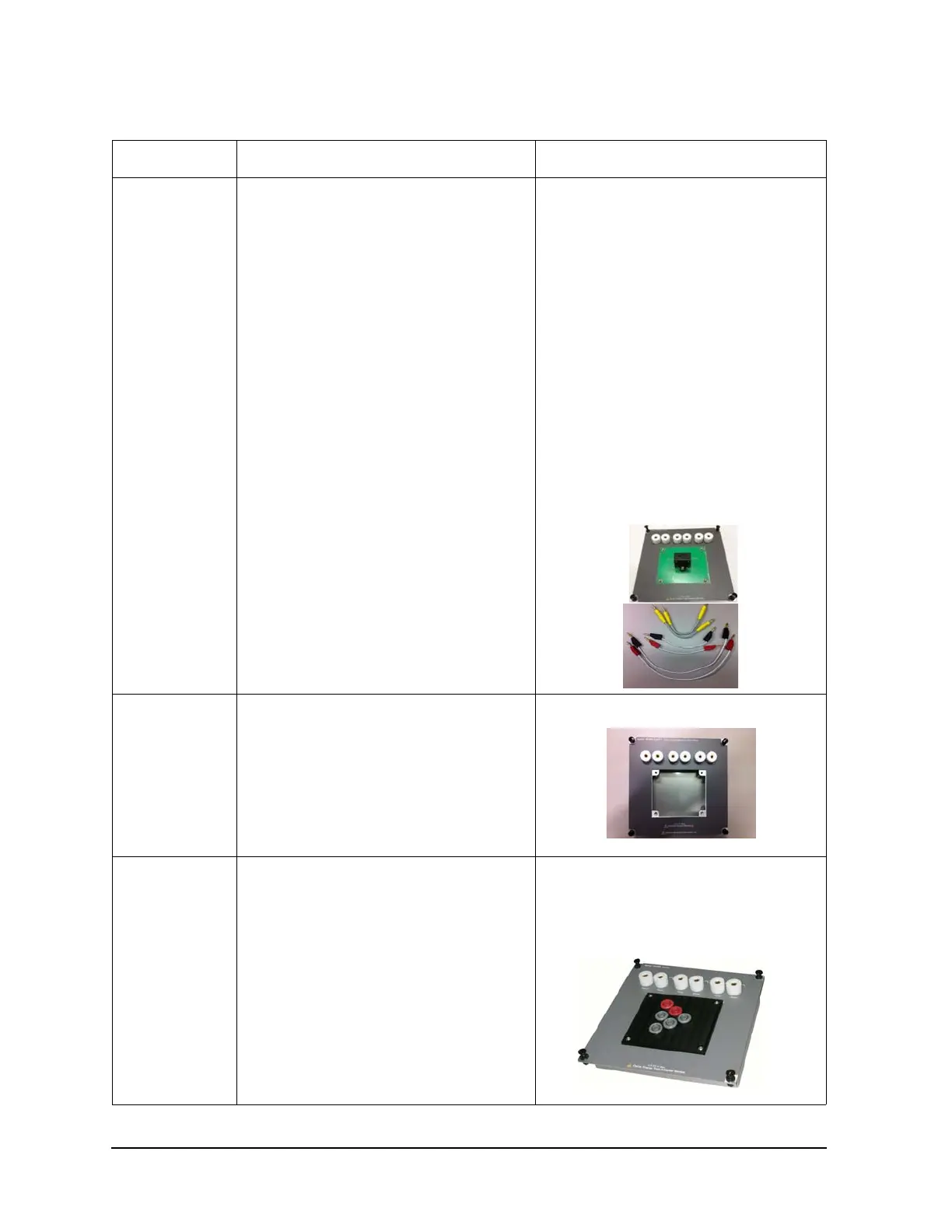

N1265A Ultra High Current Expander/Fixture
Model/Option Description Additional Information
N1265A-010 500 A Ultra High Current 3-pin Inline Package
Socket Module
• The N1265A-010 is furnished with total
six cable shown below
• N1252A-522 1500A Ultra High
Current Banana to Banana Cables
(Yellow, 2ea) for Collector/Drain and
Emitter/Source force lines
• N1265-61751 Test Lead (Banana),
180mm (Red, 1ea) and N1265-61752
Test Lead (Banana), 180mm (Black,
1ea.) for Collector/Drain and
Emitter/Source sense lines
• N1254A-508 Banana to Banana
cable, 250mm (Red, 1ea),
N1254A-509 Banana to Banana
cable, 250mm (Black, 1ea) for
Base/Gate force/sense lines
• Maximum voltage and current is 3 kV and
500 A.
N1265A-011 Universal socket module for power device • Maximum voltage is 3 kV.
N1265A-013 Curve tracer test adapter socket module • The N1265A-013 is the same as the
N1259A-013 Curve Tracer Test Adapter
Socket Module.
• Maximum voltage and current is 3 kV and
500 A.
