3-18 Keysight B1505A Configuration and Connection Guide
N1265A Connection Guide
Output Connection
HC/MC/DHCSMU via SMU 3 terminals should be connected as follows.
• SMU 3 High Force and Sense to DUT high
• SMU 3 Low Force and Sense to DUT low
• GNDU Force and Sense to DUT low
The GNDU signals will appear at the Selector Output Low terminals as shown in
Table 3-7.
3. Set the DUT on the socket.
4. Close the fixture cover and perform measurement.
Universal Socket Module (N1265A-011)
This is a blank module, kind of a do-it-yourself kit for supporting variety of packaged
devices. This module can be used by mounting your desired socket or packaged device and
making connections same as the N1265A-010 Inline Package Socket Module.
To use this module, see the following simple instruction. For the component locations and
dimensions, see Figure 3-8. Also see "Inline Package Socket module (N1265A-010)" on
page 3-17 to perform measurement.

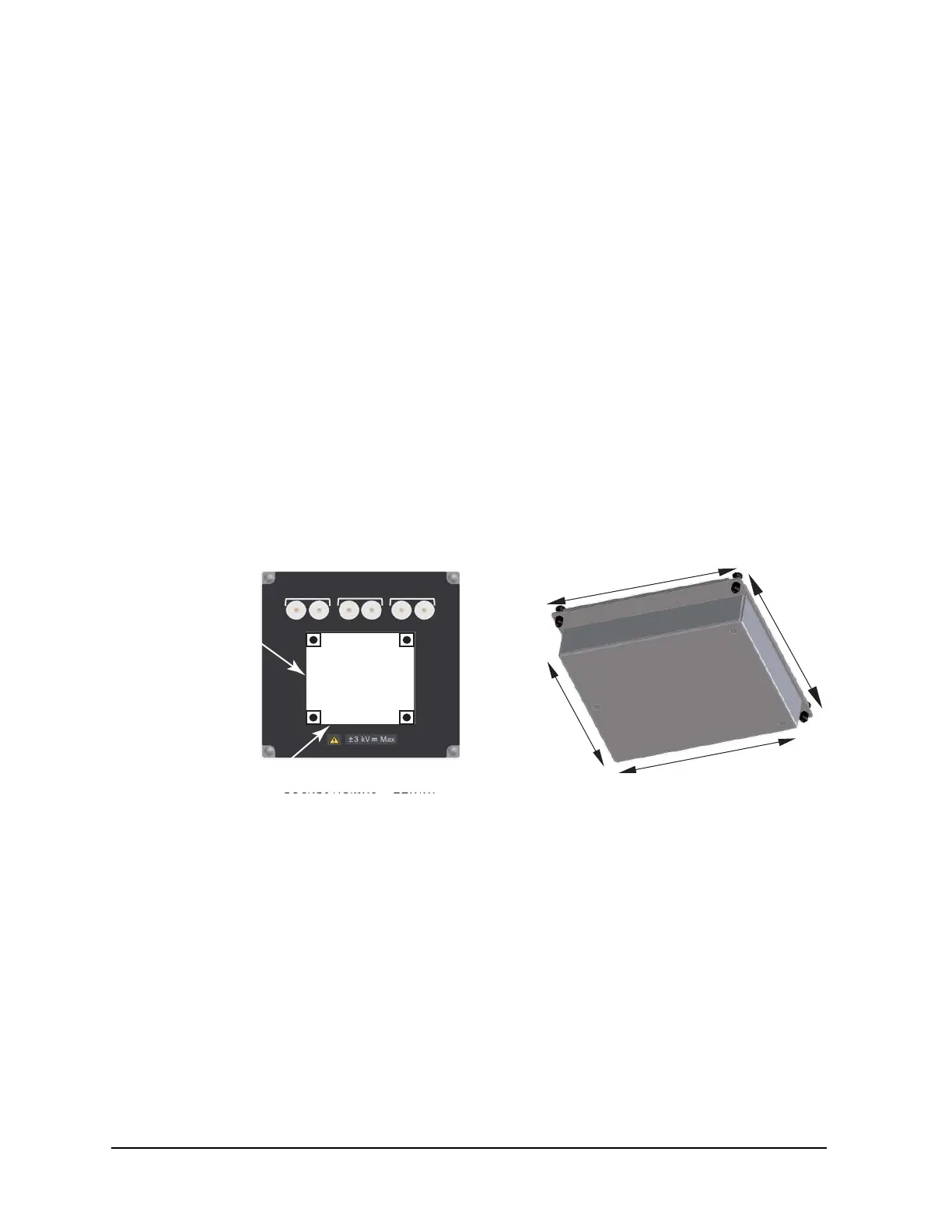

Figure 3-8 Universal Socket Module
1. Prepare the following parts.
• blank board suitable for mounting the socket or packaged device
• screw M3, 4 ea., for fixing the blank board on the socket module
• wire, adequate length and quantity, for making connections
• hexlobe (torx type) screwdriver T-10
• socket, if you use, and packaged device under test (DUT)
2. Cut the blank board in 90 mm 81 mm square.
3. Make four screw holes on the board. The holes should be 6 mm inside from the edge.
4. Fix the board to the blank module.
5. Remove the cover bottom of the blank module.
165 mm
165 mm
129 mm
160 mm
2
1
3
4
5
6
7
8
Collector / Drain
Emier / Source Base / Gate
N1265A Opt 011
Force Sense
Force Sense
Force Sense
Universal Socket Module
1
2
5
6
4
3
91 mm (Nut pitch: 78 mm)
(Nut pitch: 69 mm)
82 mm
To Next Page
