Keysight B1505A Configuration and Connection Guide 1-31
Configuration Guide
N1268A Ultra High Voltage Expander
N1268A Ultra High Voltage Expander
The N1268A expands the B1505A’s voltage capability up to 10 kV. Voltage expansion is
made using the Ultra High Voltage Unit (UHVU), which is comprised of N1268A and two
MCSMUs which are connected to I/V control ports of the N1268A. The MCSMU used for
the V controller can be substituted by the HCSMU.
The following table lists the accessories available for the N1268A Ultra High Voltage
Expander. Select the required accessories.

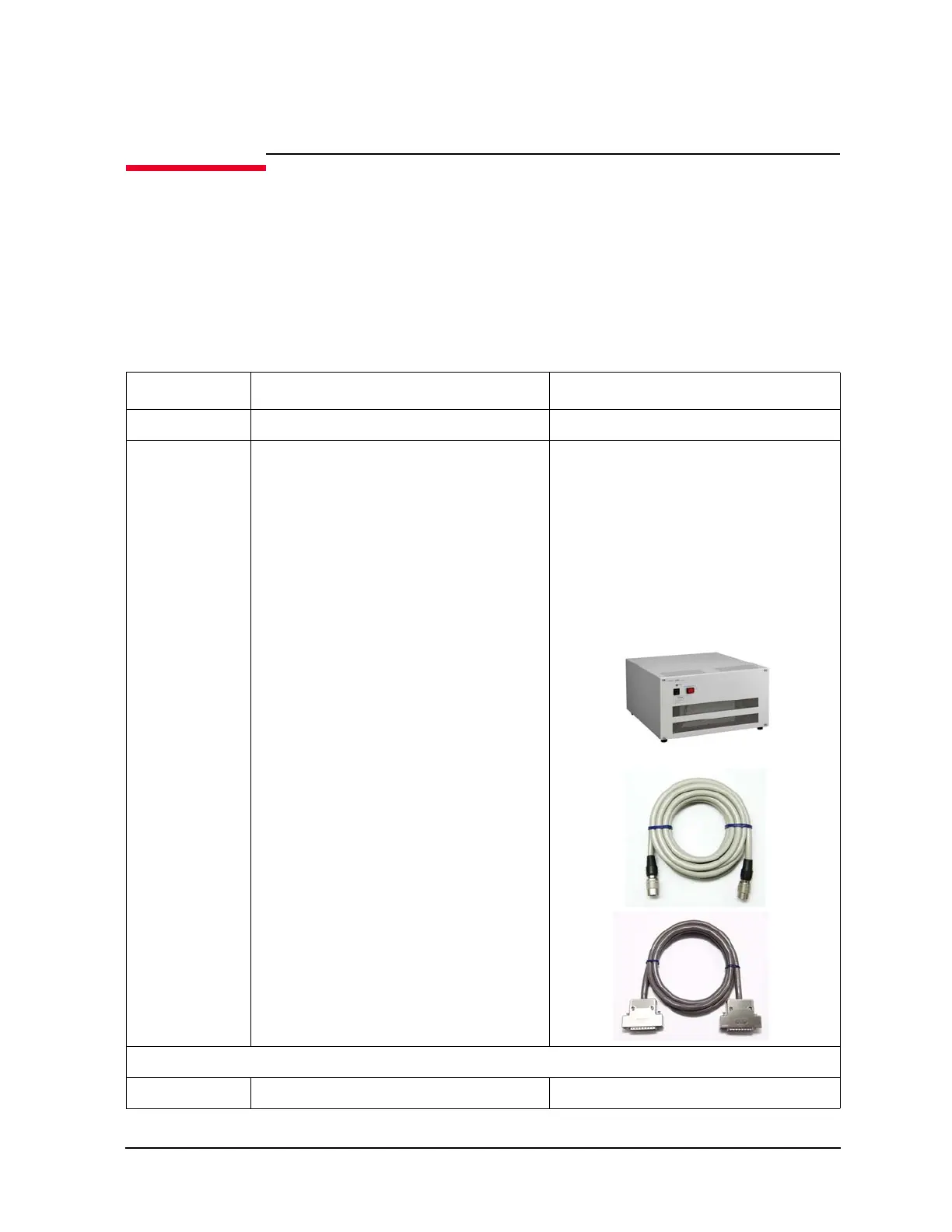

Table 1-14 Options and accessories for N1268A Ultra High Voltage Expander
Model/Option Description Additional Information
N1268A Ultra High Voltage Expander • The N1268A-STD is a mandatory option.
N1268A-STD Ultra High Voltage Expander • Mandatory option
• The N1268A-STD is furnished with a
16493G-001 Digital I/O control cable
(1.5m), a 16493J-001 Interlock cable
(1.5m) and a power code.
• The N1268A-STD is NOT furnished with
a 16493V 10kV Ultra High Voltage
Cable. Order a 16493V-001/002
separately.
Calibration options
N1268A-A6J ANSI Z540 compliant calibration
To Next Page
