Keysight B1505A Configuration and Connection Guide 1-27
Configuration Guide
N1266A High Voltage Source Monitor Unit Current Expander
N1266A Compatibility with Fixture and Module Selector
The N1266A can be used with the N1265A Ultra High Current Test Fixture, N1259A Test
Fixture for Power Device and N1258A Module Selector for B1505A. Table 1-10 shows the
equipment list which is compatible with the N1266A for package device testing and
on-wafer device testing environment.

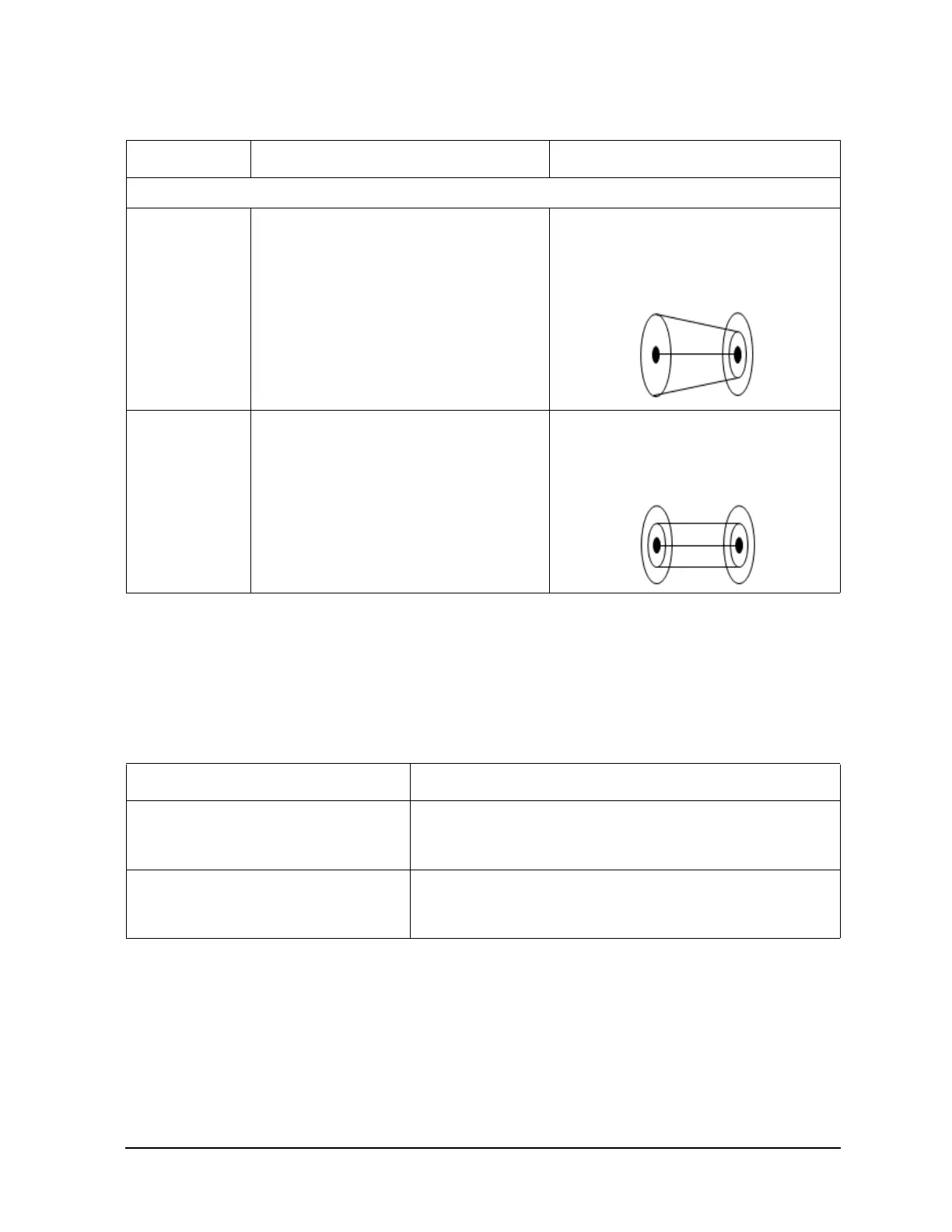

Table 1-10 N1266A Compatibility with Fixture and Module Selector
Adapters
N1254A-103 Triaxial (m) to BNC (f) adapter • This adapter is needed when a B1512A
HCSMU is used as a voltage/current
controller of the N1266A instead of
MCSMU. This adapter is used for Force
terminal.
N1254A-517 Adapter, Triax Jack to Triaxial Plug • This adapter is needed to use a B1512A
HCSMU as a voltage/current controller of
the N1266A instead of MCSMU. This
adapter is used for Sense terminal.
Model/Option Description Additional Information
Test Environment Supported Fixture and Module Selector
Package device testing • N1259A Test Fixture for Power Device with or without
N1259A-300 Module Selector Option
• N1265A Ultra High Current Expander/Fixture
On-wafer device testing • N1265A Ultra High Current Expander/Fixture with a
N1254A-524 Ultra High Current Prober System Cable
• M1258A Module Selector
To Next Page
