Keysight Technologies B1505A Configuration Guide

5-22 Keysight B1505A Configuration and Connection Guide
Connection Guide for Wafer Prober and Your Own Test Fixture
To Connect Dual HCSMU Adapter

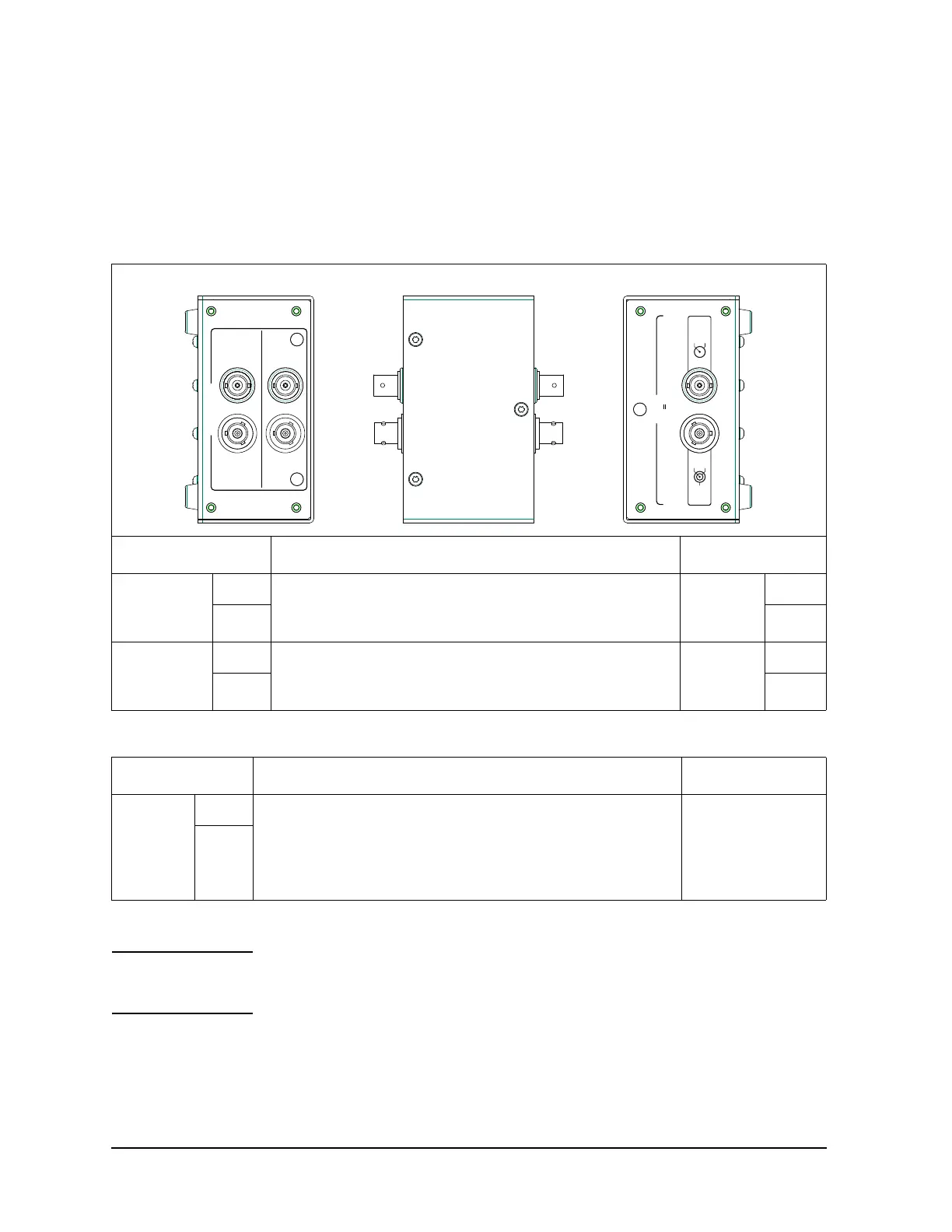

To Connect 16493S-021
The 16493S-021 adapter is used with an accessory, 16493S-010/011 HCSMU adapter,
N1258A module selector, or N1259A/N1265A test fixture. The adapter should be installed
near the accessory.
Table 5-14 To Connect 16493S-021 Input
Table 5-15 To Connect 16493S-021 Output
CAUTION If DHCSMU is used with the N1258A or N1259A-300 module selector, the maximum
current must be ± 30 A to prevent the module selector from performance degradation and
failure.
B1505A terminals Required cables Input terminals
HCSMU
used for
master
Force 16493S HCSMU cable, 3 m or 1.5 m Master Force
Sense Sense
HCSMU
used for
slave
Force 16493S HCSMU cable, 3 m or 1.5 m Slave Force
Sense Sense
Output terminals
1
1. This is the DHCSMU channel. The connectors are compatible with HCSMU.
Required cables/Description Connect to
Output Force dedicated cable, 300 mm, furnished with 16493S-021
To connect N1265A, adapters N1254A-103 for Force and
N1254A-517 for Sense are required.
HCSMU input
connectors of
16493S-010/011,
N1258A, N1259A,
or N1265A
Sense
16493S Opt 021 Dual HCSMU Combination Adapter
ForceSense
High Sense Low Sense
HCSMU
Circuit
Common
High Force
Low Force
±40 V Max
Output
Sense
Force
SenseForce
Master
Slave
From HCSMU
