7-38 Keysight B1505A Configuration and Connection Guide
Connection and Ordering Examples
Configuration Examples for Lateral Device Measurement with Wafer Prober
3 kV, 500 A Measurement for On-Wafer Lateral Device
• Device Type: Lateral MOSFET (4 terminals)
• Key Specification
• Max voltage/current: 3 kV/500 A
• Module Selector for multi-parameter automated measurement function

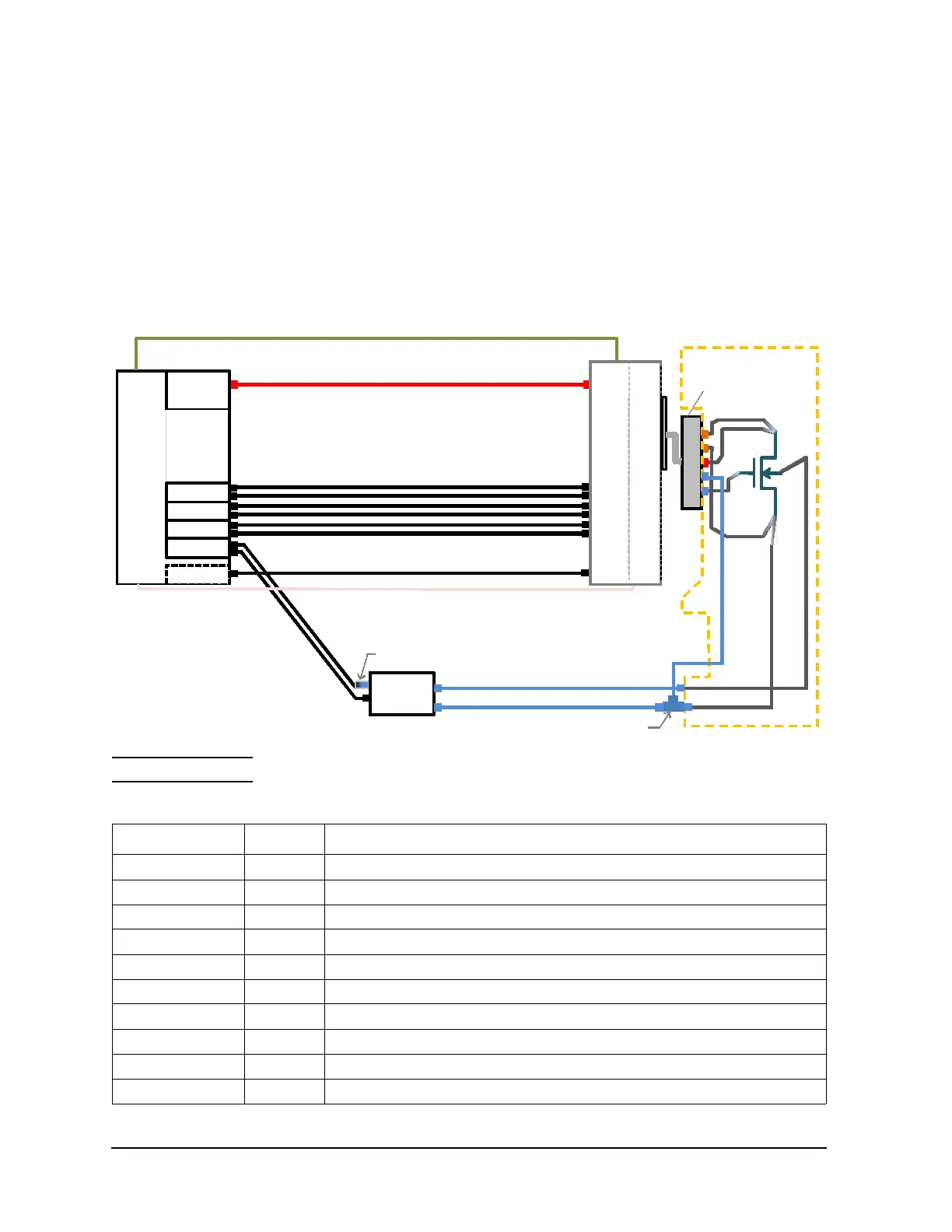

Figure 7-20 Connection example
NOTE Prober vendor is responsible for cabling inside the shielding box.
Table 7-18 Ordering example
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1513C-FG 1 High Voltage Source Monitor Unit, 3000 V/4 mA (Pulsed & DC)
B1514A-FG 4 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
N1265A 1 Ultra High Current Expander/Fixture
N1265A-001 1 Ultra High Current Expander/Fixture
16493S 1 High Current Source Monitor Unit Cable
16493S-011 1 High Current Source Monitor Unit non-Kelvin Adapter
16493U 1 High Current BNC Coaxial Cable
16493U-001 3 High Current BNC Coaxial Cable (1.5 m)
1250-2405 1 BNC-T plug (m)-BNC (f)-BNC (f) adapter, 1ea
D
G
S
HVSMU
GNDU
MCSMU
B1505A
MCSMU
MCSMU
16493J Interlock cable (Included in B1505A)
F
S
F
S
F
S
HVSM U
GND U
UHC I nput
V Control
I Control
For Gate
For N126 5A
For N1265 A
For Drain
HF
LF
HS
LS
G
ate
N1265A
Gate
Se le ctor
High
Low
MCSMU
F
S
N1254A-524
16493G-001 Digital I/O cable (Included in N1265A)
Chuck
For Chuck
Gate F
Gate S
16493T (Included in the HVSMU)
16494A (Included in the MCSMU)
16493L (Included in B1505A)
16494A
(Included in the MCSMU)
HCSMU Non-
Kelvin adapter
16493S-011
N1254A-104 TRX(J) to BNC(P) adapter
16493U-001
16493U-001
16493U-001
To Next Page
