N1259A Test Fixture for Power Device
N1259A Test Fixture for Power Device
The N1259A is a test fixture used for package device measurements. It supports up to 3 kV
and 40 A. The following table lists the accessories available for the N1259A test fixture.
Select the required accessories. If you add options later, please refer to "Upgrade Kit for
N1259AU Test Fixture" on page 1-65.

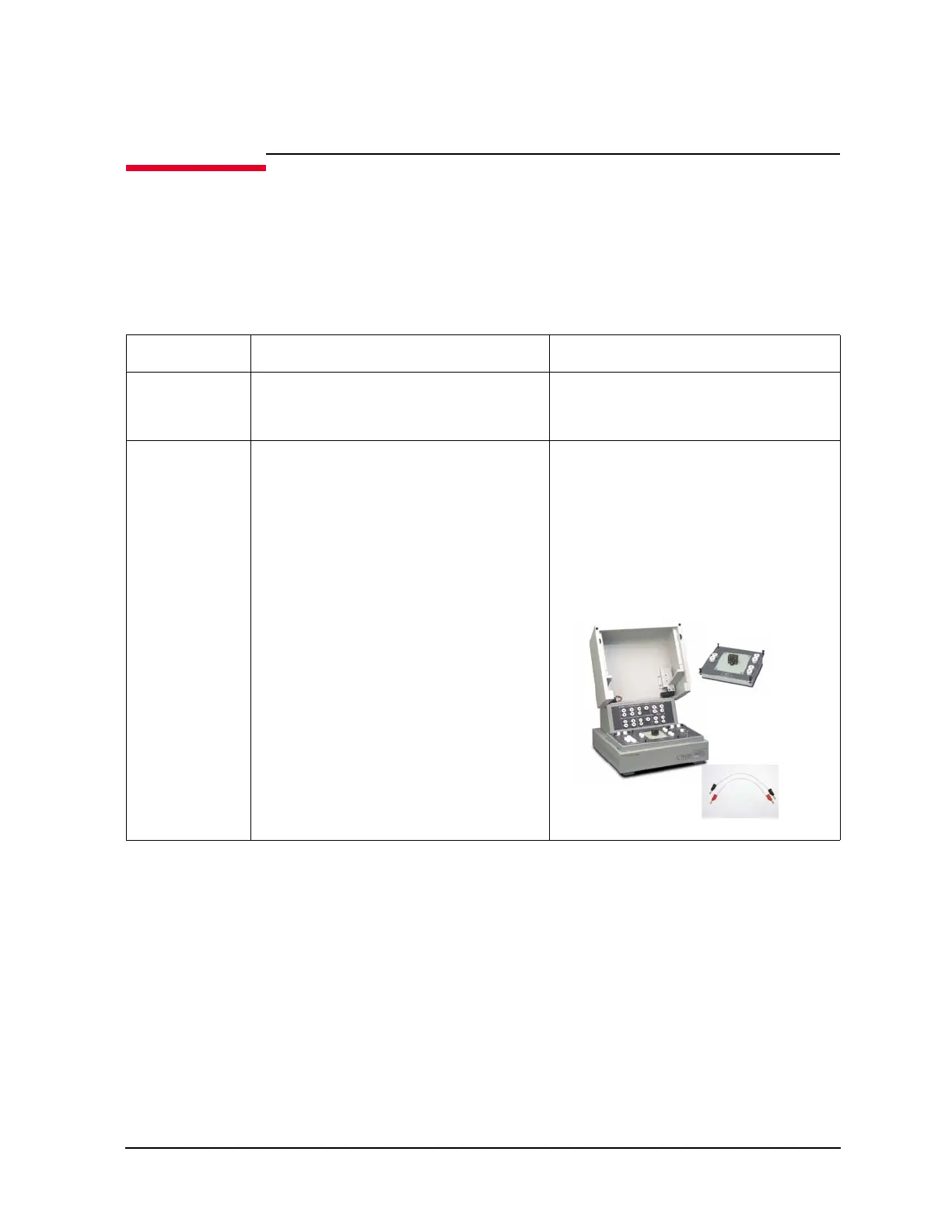

Table 1-7 N1259A Test Fixture options and accessories
Model/Option Description Additional Information
N1259A Test Fixture for Power Device • N1259A-001 is a mandatory option.
Please select options that meet your
needs.
N1259A-001 Test Fixture for Power Device • Mandatory option
• The N1259A-001 is furnished with
Kelvin socket module for inline package
device (N1259A-010), four black
connection wires (N1259A-509) and six
red connection wires (N1259A-508).
• The N1259A-001 has a built-in GNDU
protection adapter and a built-in HPSMU
protection adapter inside.
