Keysight Technologies B1505A Configuration Guide

Keysight B1505A Configuration and Connection Guide 1-25
Configuration Guide
N1266A High Voltage Source Monitor Unit Current Expander
N1266A High Voltage Source Monitor Unit Current
Expander
The N1266A expands HVSMU current up to 2.5 A. Current expansion is made using the
High Voltage Medium Current Unit (HVMCU), which is comprised of N1266A, HVSMU
(B1513A, B, or C) and two MCSMUs which are connected to I/V control ports of the
N1266A. The MCSMU used for the I/V controller can be substituted by the HCSMU.
The following table lists the accessories available for the N1266A High Voltage Source
Monitor Unit Current Expander. Select the required accessories.

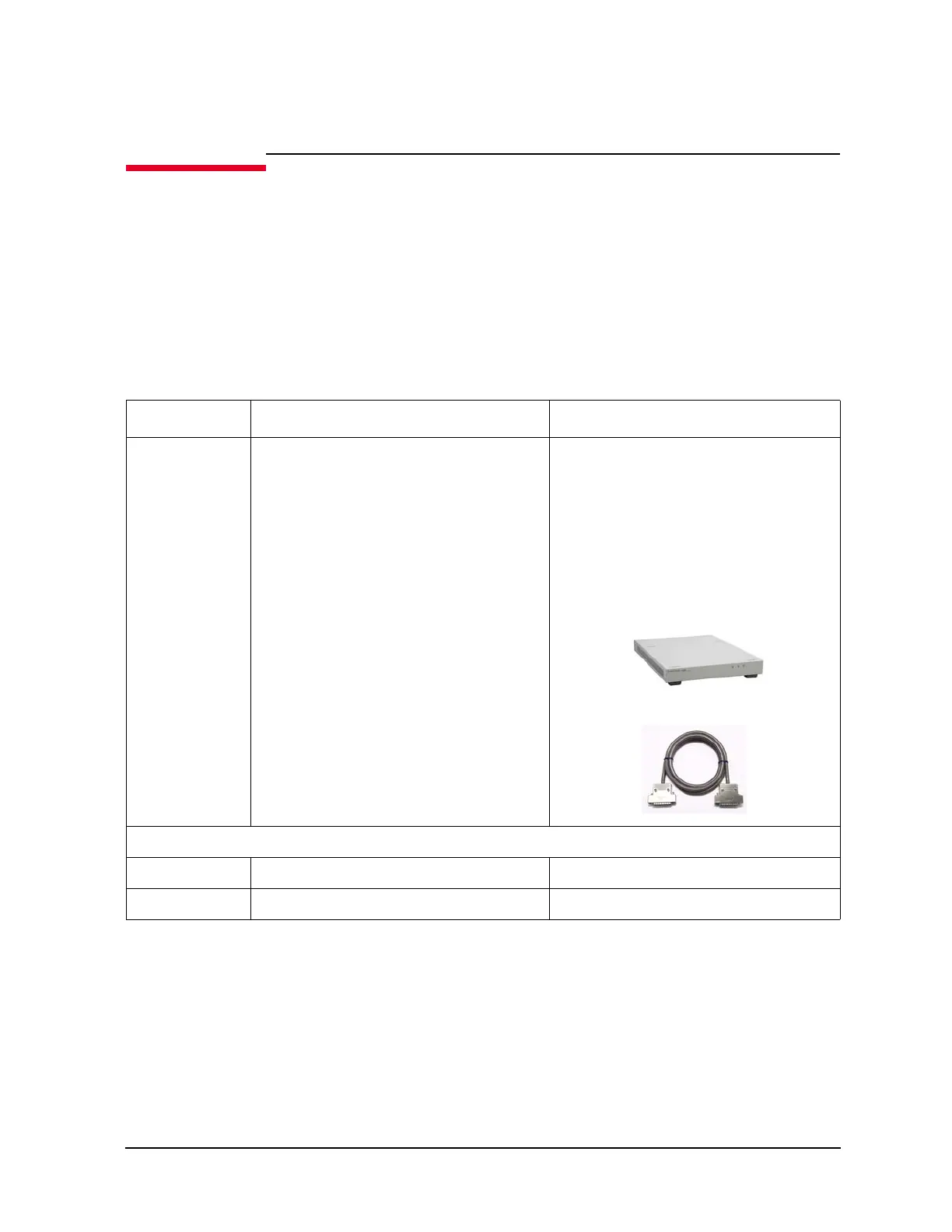

Table 1-9 Accessories for N1266A Ultra High Current Expander/Fixture
Model/Option Description Additional Information
N1266A High Voltage Source Monitor Unit Current
Expander
• The N1266A is furnished with 1.5 m
Digital I/O control cable (16493G-001)
and a power code.
• The N1266A does not include a 16493T
High Voltage Source Monitor Unit Cable
and a 16493L GNDU Cable. Order a
16493T-001/002 and a 16493L-001/002
separately.
Calibration options
N1266A-A6J ANSI Z540 compliant calibration
N1266A-UK6 Commercial cal. Certificate with test data
