Keysight Technologies B1505A Configuration Guide

5-44 Keysight B1505A Configuration and Connection Guide
Connection Guide for Wafer Prober and Your Own Test Fixture
To Connect Gate Charge Adapter
Table 5-35 To Connect N1274A Output
To Connect N1274A
The N1274A is used to enable on-wafer gate charge measurements using the HCSMU
(max. 20 A) and the B1513B/C HVSMU (max. 3 kV). This equips an internal selector to
automatically switch signal paths of I-V measurement and gate charge measurement. The
N1274A is used with the N1258A module selector. (Note that the B1513A cannot be used
for gate charge measurement.)
You can also mount a current control device or load resistor on the N1274 by opening a
small panel on the top of this adapter.
The N1274A should be installed in the shielding box with your DUT interface. Connection
example is shown in Figure 5-22. For the color-codes of cables and connectors in this
figure, see Figure 7-1 on page 7-2.

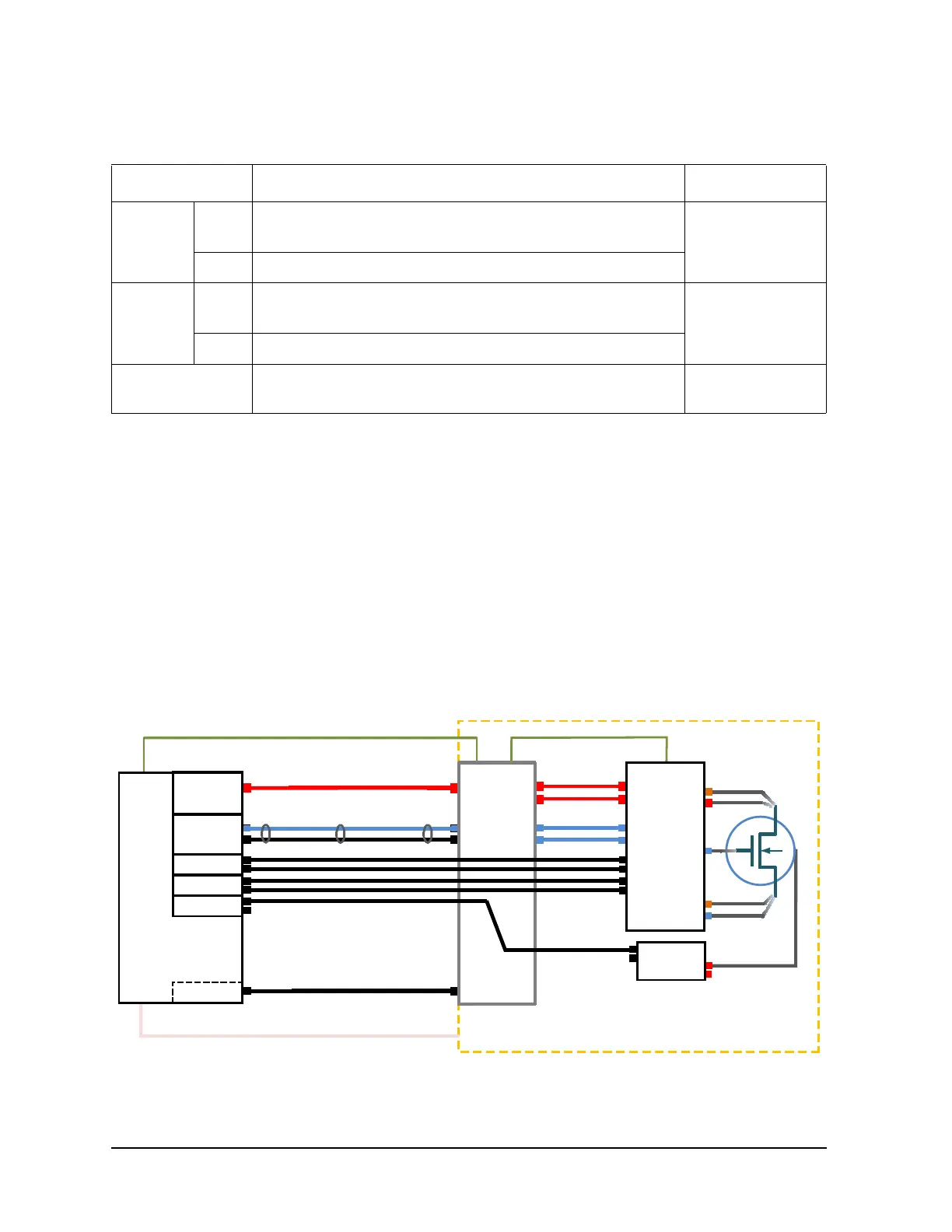

Figure 5-22 Typical Connection of N1274A Gate Charge Measurement Adapter
Output terminals
Required cables/Description Connect to
High Force Ultra high current cable with banana(plug). N1254A-523 can be
used.
DUT high terminal
(ex: drain)
Sense Triaxial cable with HV(plug) connector. N1254A-505 can be used.
Low Force Ultra high current cable with banana(plug). N1254A-523 can be
used.
DUT low terminal
(ex: source)
Sense Coaxial cable with BNC(m) connector. N1254A-503 can be used.
Gate Coaxial cable with BNC(m) connector. N1254A-503 can be used. DUT terminal
(ex: gate)
G
S
HV SMU
GNDU
HCSMU F
N1258A
Low F
High F
S
D
HCSMU S
Digital I/O
S
F Low
F High
S
S
High F
Low F
S
S
Gate
F
Current
Control
S
DUT Gate
Control
F
S
Relay Control Input
HVSMU
HCSMU
MCSMU
GNDU
F
S
F
S
B1505A
16493T (Included in the HVSMU)
16493S (Included in the HCSMU)
16493L (Included in the B1505A)
16493G-002 Digital I/O cable (Included in the N1258A)
16493J (Included in the B1505A)
HP/MPSMU
F
S
MCSMU
F
S
N1274A
16494A (Included in the MCSMU)
N1261A-003
Output F
S
F
S
HPSMU
16494A (Included in the MPSMU)
N1274-61721*
N1274-61720*
B1512-61741*
B1512-61741*
*: Included in the N1274A
N1274-61722*
Interlock
Shielding Box
Ext. Relay
Control
Output
