Keysight Technologies B1505A Configuration Guide

Keysight B1505A Configuration and Connection Guide 1-19
Configuration Guide

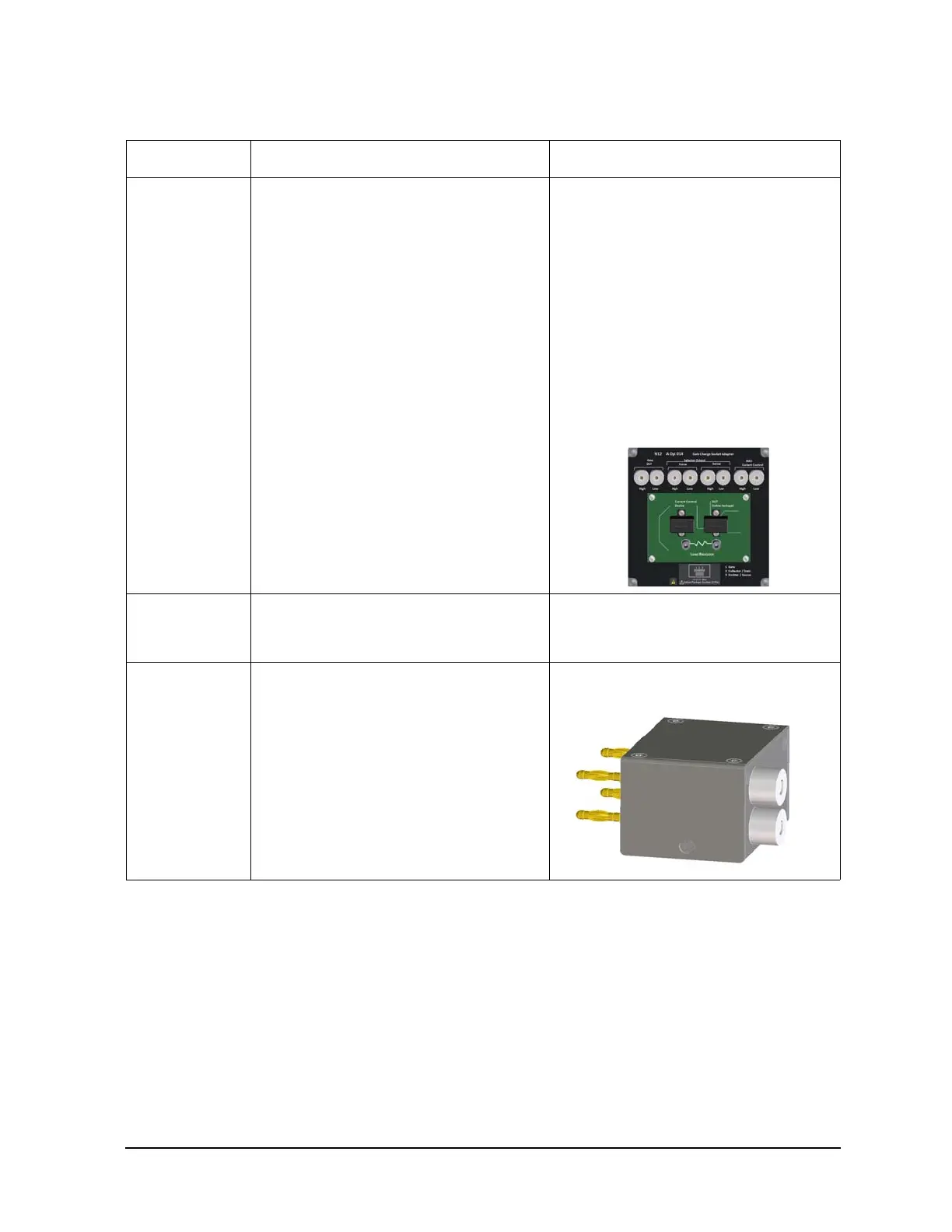

N1265A Ultra High Current Expander/Fixture
N1265A-014 Gate charge socket module • The N1265A-014 is the same as the
N1259A-014 Gate Charge Socket
Module.
• The N1265A-014 option is furnished
with:
- Four red long wires (N1254A-508)
- Four black long wires (N1254A-509)
- Two red short wires (N1265-61751)
- Two black long wires (N1265-61752)
- Two yellow high current banana-banana
cable (N1254A-522)
• Maximum voltage and current is 3 kV and
500 A.
N1265A-015 1500 A Current Option • 1500 A upgrade can be made later by
ordering a B1505AU-015 1500 A
upgrade kit.
N1265A-035 Universal R-Box • A desired register can be installed by
soldering.
Model/Option Description Additional Information
Collector / Drain
Emier / Source Base / Gate
N1259A Opt 013
Force Sense
Force Sense
Force Sense
Curve Tracer Test Adapter Socket
1
2
5
6
4
3
A
BC
59
