1-16 Keysight B1505A Configuration and Connection Guide
Configuration Guide
N1259A Test Fixture for Power Device
NOTE The N1259A-020 high voltage bias-T and/or the N1259A-300 module selector can be
installed in the N1259A-001 test fixture later. For upgrade kit, please refer to "Upgrade Kit
for N1259AU Test Fixture" on page 1-65. Keysight Technologies service center is
responsible for N1259AU-020 and N1259AU-300 installation.
Model/Option Description Additional Information

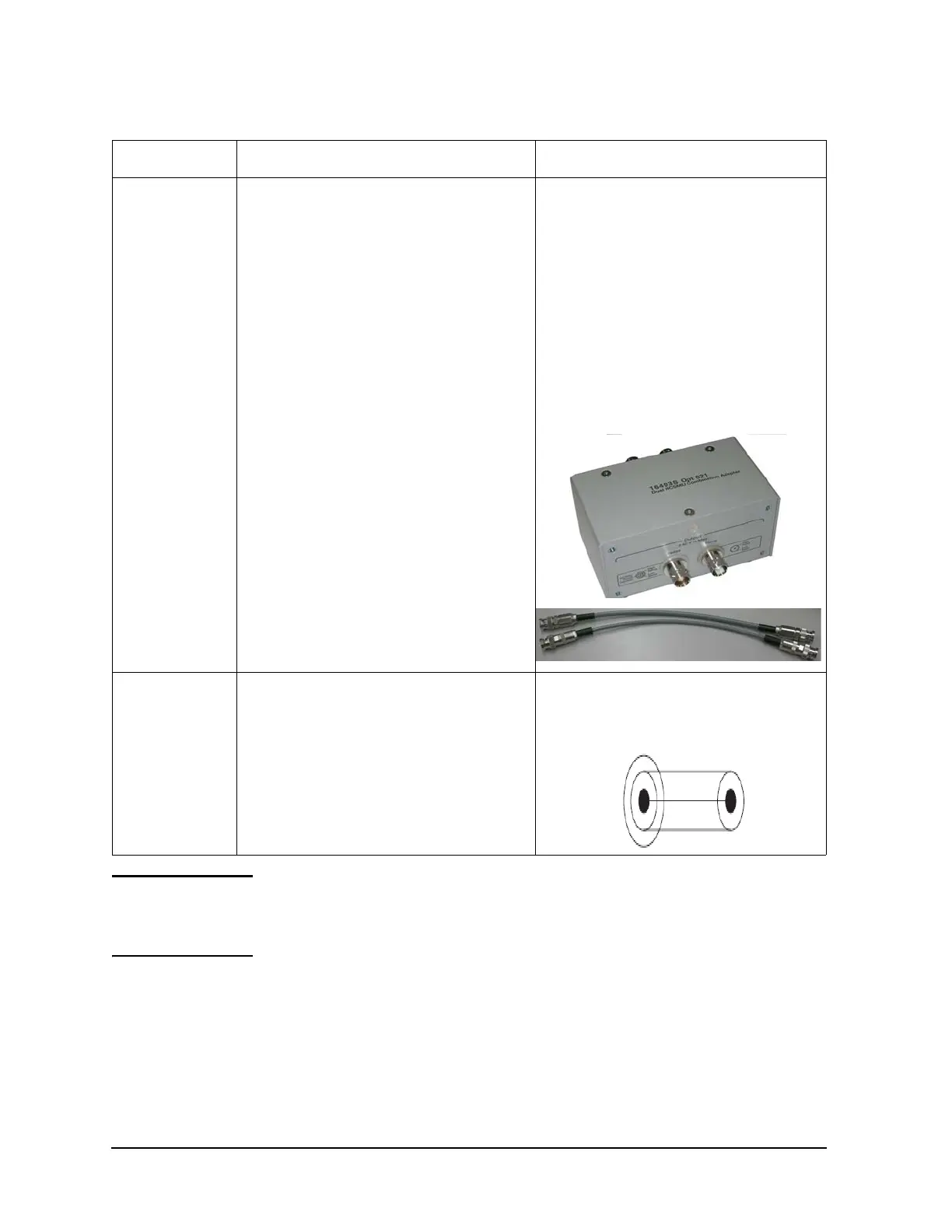

16493S-021 Dual HCSMU combination adapter, for 40 A
measurement
• Output connectors are compatible with
B1512A HCSMU.
• The 16493S-021 is furnished with one
30cm Triaxial cable and one 30 cm High
current coaxial cable for output
connection.
• Do not connect or put any conductor on
the HCSMU Low Force and Low Sense
terminals, outer conductor of the coaxial
connectors. Connecting or locating
conductor of circuit common, chassis
ground, or any potential on causes the
measurement error.
N1254A-104 Triax (f) to BNC (m) adapter • This adapter is required when a B1514A
MCSMU is connected to the HCSMU
ports of the N1259A Fixture. This adapter
is used for Force terminal.
To Next Page
