Keysight B1505A Configuration and Connection Guide 1-71
Configuration Guide
Upgrade Kit for N1265AU Test Fixture

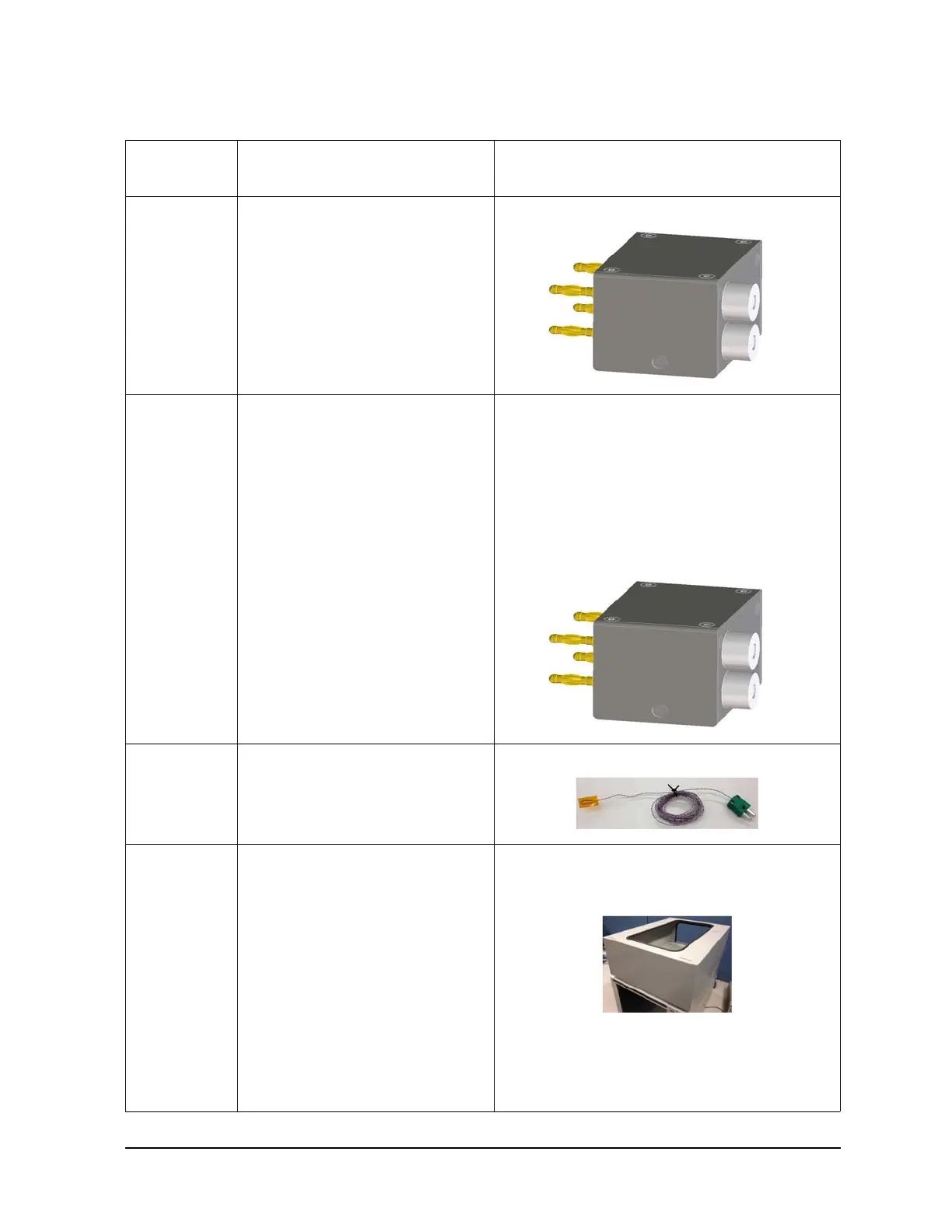

N1265AU-035 Universal R-Box • A desired register can be installed by soldering.
N1265AU-040 10 kV Ultra High Voltage Gate
Protection Adapter
• This adapter is used to protect a B1514A
MCSMU module used for Gate driver from
device breakdown when making ultra high
voltage measurement with the N1268A UHV
Expander,
• The B1514A MCSMU module has to be
connected to a passthrough port of the N1265A
UHC Expander/Fixture, not a module selector
port.
N1265AU-041 Thermocouple, Type K, 2ea • Include two Type-K thermocouples.
N1265AU-045 Container for Protection Adapter and
Bias Tee
• N1260A High Voltage Bias tee and N1261A
Protection Adapters can be placed in this
container to avoid messy cabling.
Model/
Option
Description Note
To Next Page
