Keysight Technologies B1505A Configuration Guide

1-72 Keysight B1505A Configuration and Connection Guide
Configuration Guide

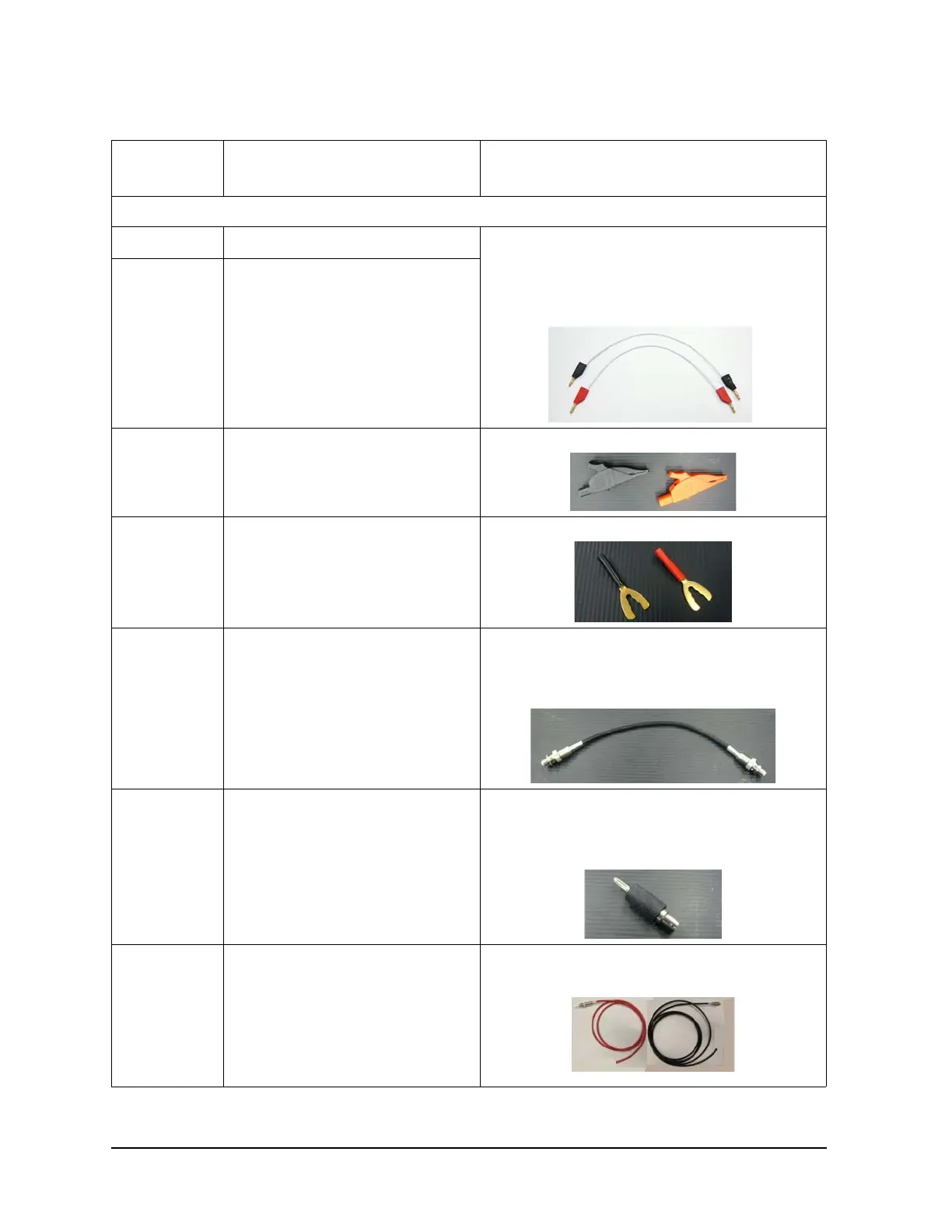

Upgrade Kit for N1265AU Test Fixture
Related accessories
N1254A-508 Connection wire, red 1 ea. • The N1265AU-010 500 A Ultra High Current
3-pin Inline Package Socket Module is furnished
with one N1254A-508 cable and one
N1254A-509 cable.
• Maximum voltage and current is 3 kV and 40 A.
N1254A-509 Connection wire, black 1 ea.
N1254A-510 Dolphin clip adapter, black 1 ea. and
red 1ea.
N1254A-511 Cable lug adapter, black 1 ea. and red
1ea.
N1254A-512 SHV Cable 250 mm, 1ea • The N1259AU-020 High Voltage Bias-tee is
furnished with two N1254A-512 cables.
• The N1254A-513 adapter is required to connect
a banana plug.
N1254A-513 SHV Jack to Banana Adapter, 1ea • The N1259AU-020 High Voltage Bias-tee is
furnished with two N1254A-513 adapters.
• The N1254A-513 adapter is used with the
N1254A-512 cable to connect a banana plug.
N1254A-520 10 kV Ultra High Voltage Open End
Cable, 1 m.
• One-side 10kV UHV/SHV and the other-side
open end
Model/
Option
Description Note
