Keysight B1505A Configuration and Connection Guide 7-19
Connection and Ordering Examples
Package Device Measurement Configuration Examples

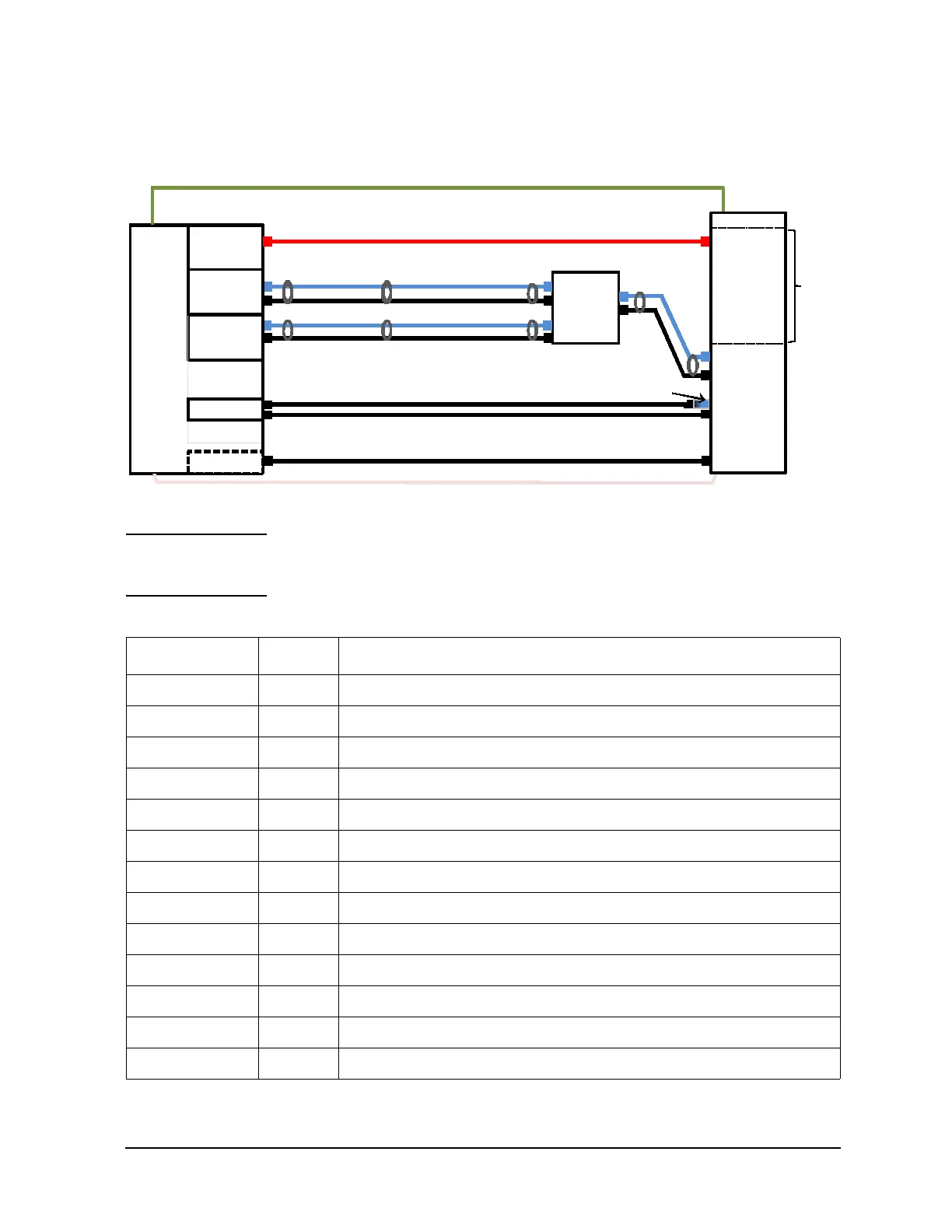

Figure 7-10 Connection example for 3kV, 40A measurement without Module Selector
NOTE N1259A-300 Module selector is available up to 30 A. If 40 A capability is required, please
connect HCSMU 1 or HCSMU 2 ports of the N1259A instead of HCSMU 3 ports (Module
Selector ports). Please see the connection in Figure 7-10.
Table 7-9 Ordering example
Model/Option Quantity Description
B1505A 1 Power Device Analyzer/Curve Tracer mainframe
B1512A-FG 2 High Current Source Monitor Unit, 20 A/20 V(Pulsed); 1 A/40 V(DC)
B1513C-FG 1 High Voltage Source Monitor Unit, 3000 V/4 mA (Pulsed & DC)
B1514A-FG 1 Medium Current Source Monitor Unit, 1 A/30 V(Pulsed), 100 mA/30 V(DC)
16493S 1 High Current Source Monitor Unit Cable
16493S-021 1 Dual HCSMU Combination Adapter
N1254A 1 Accessories for instruments and fixtures
N1254A-104 1 Triax (f) to BNC (m) adapter
N1259A 1 Test Fixture for Power Device
N1259A-001 1 Test Fixture including Inline Package Socket Module and Cables
N1259A-022 1 100 k R-box
N1259A-030 1 1 k R-box for gate
N1259A-300 1 Module Selector
HCSMU
Dual HCSMU
CombinaƟon
adapter
16493S-021
HVSMU
HCSMU
GNDU
MCSMU
B1505A
16493G-001 Digital I/O cable (Included in N1259A-300)
HVSMU2
HCSMU2 F
HCSMU2 S
N1254A-104 TRX(J) to BNC(P) adapter
16493J Interlock cable (included in B1505A)
GNDU2
F
S
F
S
N1259A
F
S
For Gate
For Drain
For Drain
For Drain
HCSMU3 F
HCSMU3 S
16493T (Included in the HVSMU)
16493S (Included in the HCSMU)
16494A (Included in the MCSMU)
16493L (Included in B1505A)
30cm HCSMU cable
(Included in 16493S-021)
16493S (Included in the HCSMU)
Module
Selector
HCSMU1 F
HCSMU1S
