Keysight Technologies B1505A Configuration Guide

6-10 Keysight B1505A Configuration and Connection Guide
Accessory Dimensions

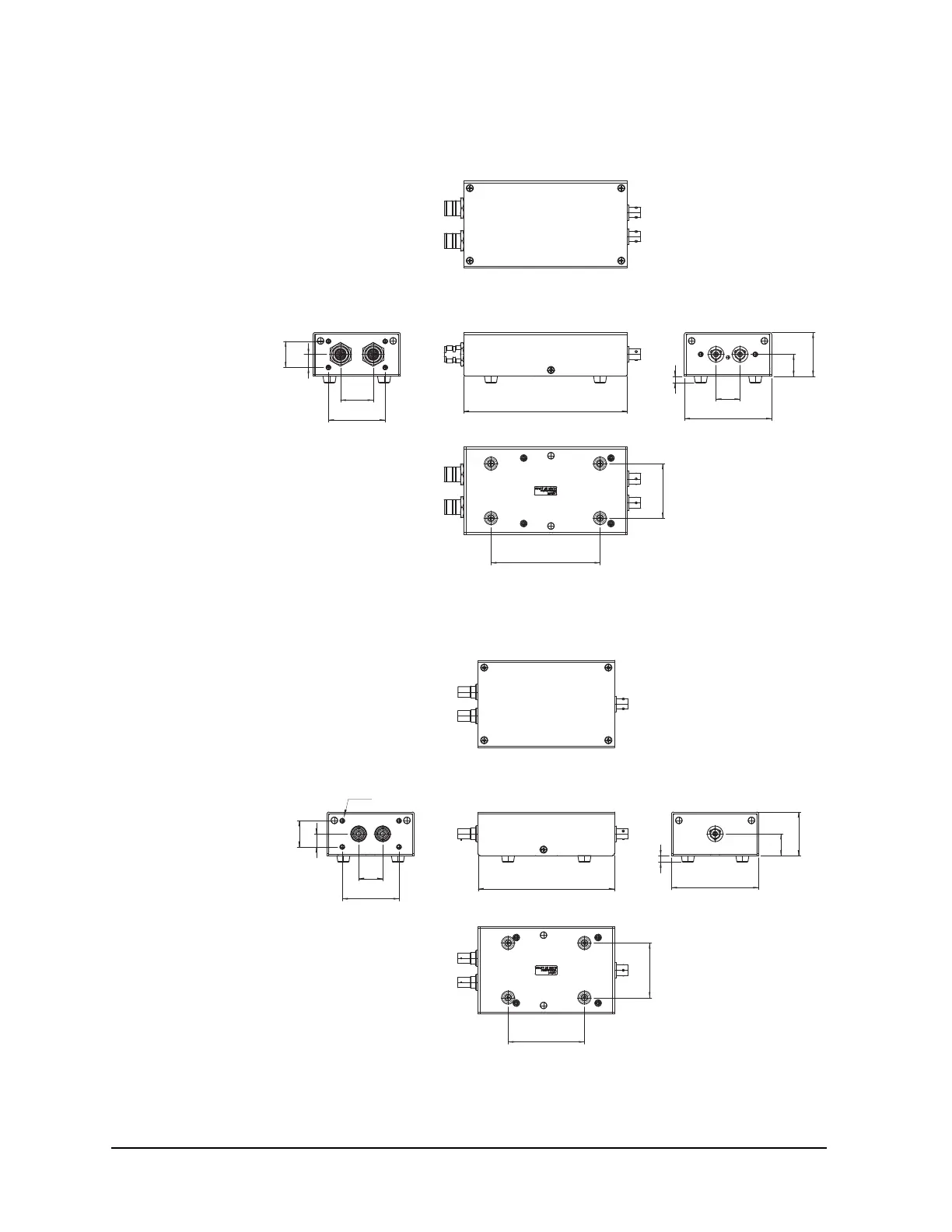

Figure 6-12 N1261A-003 HPSMU Protection Adapter, HV Output, in mm
Figure 6-13 N1261A-004 GNDU Protection Adapter, SHV Output, in mm
150
12
6
52
40
20
22
50
100
24
30
80
125
12
6
52
40
20
50
50
24
22
80
M3 4 ea, < 10 mm
