1-34 Keysight B1505A Configuration and Connection Guide
Configuration Guide
N1268A Ultra High Voltage Expander
NOTE The HPSMU and MPSMU modules cannot be used with the Ultra High Voltage Unit
(UHVU) even when protection adapters are used.

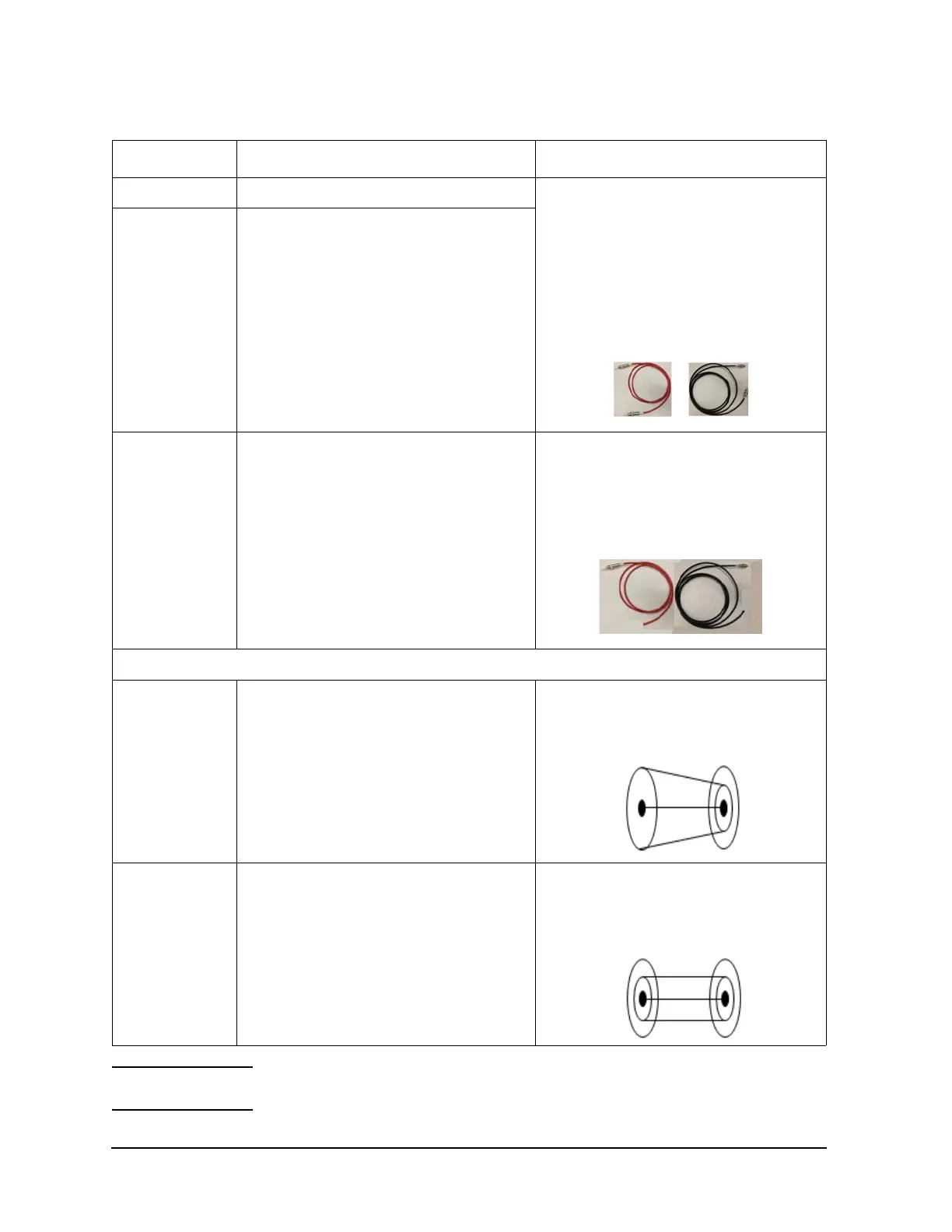

Model/Option Description Additional Information
16493V-001 10 kV Ultra High Voltage Cable, 1.5 m • One UHV cable (Red) and one SHV cable
(Black) are included in the
16493V-001/002.
• These cables are used to connect between
the N1268A UHV Expander and the
N1265A Ultra High Current
Expander/Fixture or a prober.
• Cable length 1.5 m or 3.0 m can be
specified by option 001 or 002.
16493V-002 10 kV Ultra High Voltage Cable, 3 m
N1254A-520 10 kV Ultra High Voltage Open End Cable, 1
m.
• One-side 10kV UHV/SHV and the
other-side open end
• These cables are used to connect between
the N1268A UHV output and a device
under test (DUT) placed inside the
N1265A.
Adapters
N1254A-103 Triaxial (m) to BNC (f) adapter • This adapter is needed when a B1512A
HCSMU is used as a voltage controller of
the N1268A. This adapter is used for
Force.
N1254A-517 Adapter, Triax Jack to Triaxial Plug • This adapter is needed when a B1512A
HCSMU is used as a voltage controller of
the N1268A. This adapter is used for
Sense.
To Next Page
