Keysight Technologies B1505A Configuration Guide

1-52 Keysight B1505A Configuration and Connection Guide
Configuration Guide

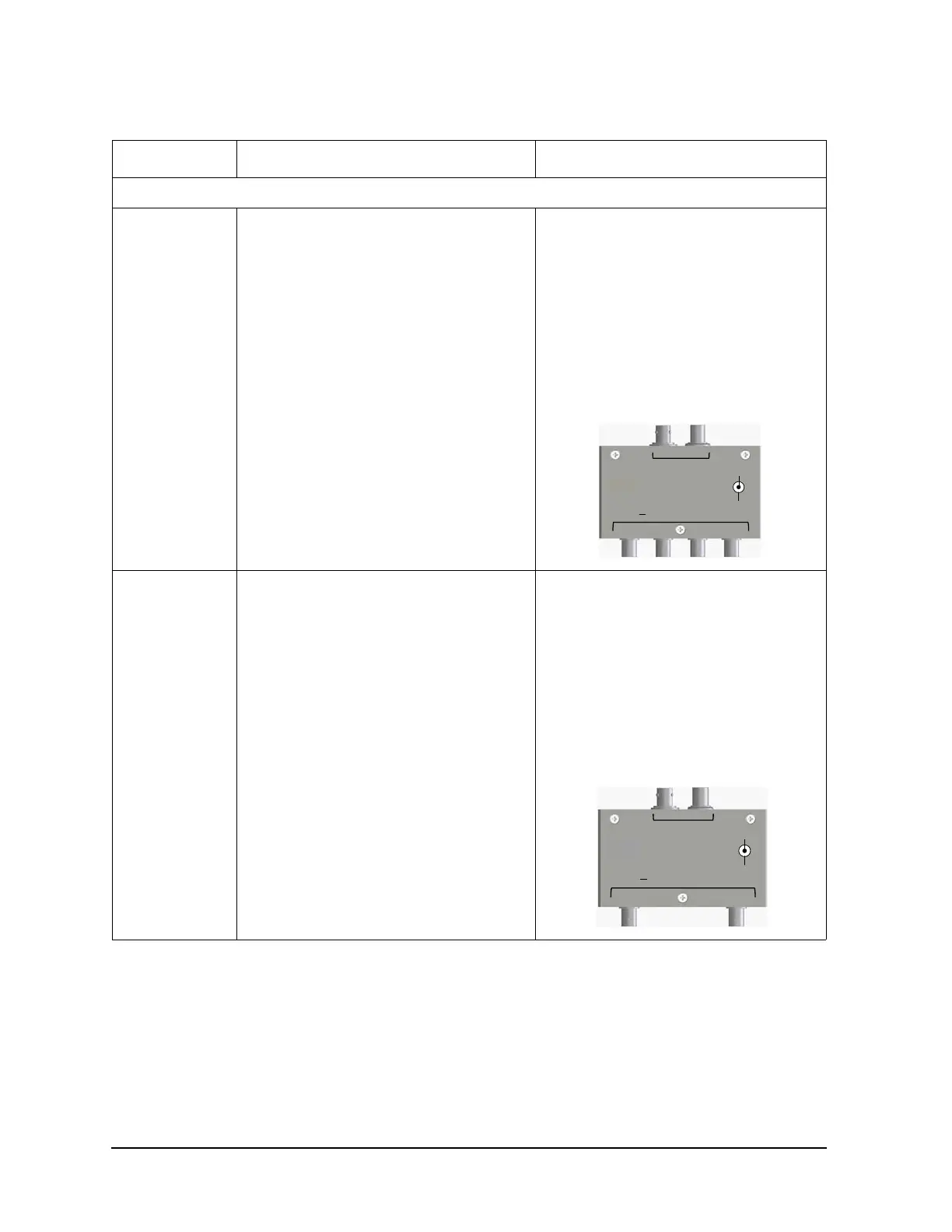

Accessories for Wafer Prober and Your Own Test Fixture
Model/Option Description Additional Information
HCSMU Adapter
16493S-010 High Current Source Monitor Unit Kelvin
Adapter
• One Triaxial input and one BNC input
for HCSMU and four BNC outputs
(High Force/Sense, Low Force/Sense)
• Do not connect or put any conductor on
the HCSMU Low Force and Low Sense
terminals, outer conductor of the
coaxial connectors.
• Connecting or putting conductor of
circuit common, chassis ground, or any
potential on causes the measurement
error.
16493S-011 High Current Source Monitor Unit
non-Kelvin Adapter
• One Triaxial input and one BNC input
for HCSMU and two BNC outputs
(High Force/Low Force).
• Do not connect or put any conductor on
the HCSMU Low Force and Low Sense
terminals, outer conductor of the
coaxial connectors.
• Connecting or putting conductor of
circuit common, chassis ground, or any
potential on causes the measurement
error.
16493S
Opt 010
HCSMU Kelvin Adapter
ForceSense
From HCSMU
Output
Signal
Circuit
Common
High Sense
High Force
Low Sense
Low Force
Agilent
㼼40 V max
䞉䞉䞉
16493S
Opt 010
HCSMU Kelvin Adapter
ForceSense
From HCSMU
Output
Signal
Circuit
Common
Signal
Circuit
Common
High Sense
High Force
Low Sense
Low Force
Agilent
㼼40 V max
䞉䞉䞉
㼼40 V max
䞉䞉䞉䞉䞉䞉
16493S
Opt 011
HCSMU Non-Kelvin Adapter
ForceSense
From HCSMU
Output
Signal
Circuit
Common
High Force
Low Force
Agilent
㼼40 V max
䞉䞉䞉
16493S
Opt 011
HCSMU Non-Kelvin Adapter
ForceSense
From HCSMU
Output
Signal
Circuit
Common
Signal
Circuit
Common
High Force
Low Force
Agilent
㼼40 V max
䞉䞉䞉
㼼40 V max
䞉䞉䞉䞉䞉䞉
